Product Overview

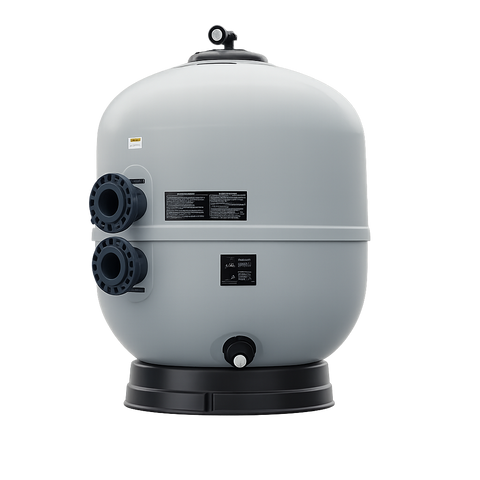

The Jandy SFSM100F Commercial Side-Mount Vertical Sand Filter is designed for high-use residential and commercial swimming-pool applications requiring dependable filtration, high flow capacity, and durable construction.

This model provides a 5.0-square-foot filtration area with a maximum flow rate of 100 GPM. At its full rated flow, the SFSM100F can support up to 36,000 gallons during a six-hour turnover cycle. Its side-mounted plumbing configuration uses 3-inch ANSI-150 flange connections, making it suitable for commercial equipment rooms and other installations using flanged plumbing.

The tank is constructed from laminated fiberglass-reinforced polyester with UV protection for strength and long-term outdoor performance. A serviceable radial-seal lid, oil-filled pressure gauge, internal diffuser, lateral assembly, large media capacity, and combination sand-and-water drain help simplify installation and ongoing maintenance.

Key Features

• Commercial-grade vertical sand filter
• 5.0-square-foot filtration area
• Maximum flow rate of 100 GPM
• Six-hour turnover capacity of up to 36,000 gallons
• Minimum recommended backwash flow of 75 GPM
• 3-inch ANSI-150 flanged plumbing connections
• Laminated fiberglass-reinforced polyester tank
• UV-protected tank, lid, and base materials
• Smooth exterior tank finish
• Industry-standard side-mount plumbing geometry
• Adjustable-compression radial-seal lid
• Oil-filled pressure gauge
• Internal diffuser and lateral assembly
• Combination sand-and-water drain
• Stable molded base with room for anchoring
• Designed for demanding commercial pool applications
• Genuine Jandy professional-grade equipment

Specifications

Jandy rates the SFSM100F at 100 GPM, 50 PSI maximum operating pressure, and 75 GPM minimum backwash flow. The tank measures approximately 32.5 inches in diameter and 41 inches tall.

Commercial-Grade Filtration

The SFSM100F is engineered for pools with demanding circulation and filtration requirements. Its large filter bed distributes water through the media to capture suspended debris while maintaining efficient system flow.

The filter may be appropriate for:

• Commercial swimming pools
• Hotel and resort pools
• Apartment and condominium pools
• Community and HOA pools
• School and institutional pools
• Therapy pools
• Large residential pools
• High-use aquatic facilities

Final filter sizing must be based on the required turnover rate, pool volume, pump performance, plumbing design, local health-code requirements, and the flow limitations of all connected equipment.

3-Inch ANSI Flange Connections

The SFSM100F uses 3-inch ANSI-150 flange connections for the inlet and outlet. This flanged configuration is intended for commercial plumbing systems where secure, serviceable connections are required.

Important Flange Information

Jandy’s published specifications identify the SFSM100F as having 3-inch ANSI-150 flange connections but state that the flange connection kits are not included with the standard filter. Advertise this model as “with flanges” only when the required flange kits are physically included in your Pool Supply Depot package.

Jandy ANSI-150 flange kits are available separately for compatible SFSM commercial filters.

Filter-Media Requirements

The SFSM100F may be filled using either a sand-only configuration or a properly layered sand-and-gravel configuration.

Sand-Only Configuration

• Approximately 679 pounds of approved filter sand
• Required freeboard: approximately 15 inches

Layered-Media Configuration

• Approximately 120 pounds of pea gravel
• Approximately 558 pounds of approved filter sand
• Required freeboard: approximately 15 inches

Filter media is not included unless specifically stated in the listing. Always use correctly graded, approved pool-filter media and follow the manufacturer’s filling procedure.

Turnover Capacity

At the maximum rated flow of 100 GPM, the SFSM100F provides the following theoretical turnover capacities:

These figures are mathematical flow calculations and do not replace professional filter sizing. Commercial pool codes may require a shorter turnover period or additional filtration capacity.

Backwashing Requirements

The SFSM100F requires a minimum backwash flow of approximately 75 GPM to properly expand and clean the filter bed.

The pump, drain line, backwash valve, waste plumbing, and discharge location must all be capable of sustaining the required backwash flow. Inadequate backwashing can cause:

• Compacted filter media
• Reduced water clarity
• Channeling through the sand bed
• Increased operating pressure
• Shortened filtration cycles
• Reduced filter performance

A compatible commercial backwash-valve assembly is sold separately.

Durable Tank Construction

The filter body uses laminated fiberglass-reinforced polyester construction with UV protection. This construction provides strength, corrosion resistance, and durability in outdoor commercial equipment environments.

The SFSM series also incorporates:

• A smooth exterior finish
• UV-protected ABS and glass-filled nylon lid components
• Adjustable radial-seal lid design
• UV-protected molded base
• Equipment-pad anchoring provisions
• Serviceable internal components

Included Components

• Jandy SFSM100F filter tank
• Internal diffuser assembly
• Internal lateral assembly
• Adjustable-compression lid assembly
• Oil-filled pressure gauge
• Manual air-relief components
• Combination sand-and-water drain
• Molded equipment-pad base
• 3-inch flange kits only when specifically included in the Pool Supply Depot package

Not Included Unless Specifically Stated

• Backwash valve
• Filter sand
• Pea gravel
• ANSI flange kits
• Pump
• Plumbing pipe and fittings
• Waste-line plumbing
• Anchoring hardware
• Installation labor

Confirm Before Ordering

Verify the following before purchasing:

• Required model is SFSM100F
• A 5.0-square-foot filter is suitable for the application
• Maximum system flow will not exceed 100 GPM
• Pump can deliver at least 75 GPM during backwashing
• Plumbing system uses 3-inch ANSI-150 flange connections
• Flange kits are included when advertised as part of the package
• Equipment pad can accommodate the 32.5-inch tank diameter
• Sufficient overhead clearance is available above the 41-inch tank
• Correct backwash valve has been selected
• Waste line can safely handle the backwash flow
• Required filter-media quantity has been confirmed
• Installation complies with commercial pool and local health codes

Installation Information

The SFSM100F must be installed and serviced by a qualified pool professional. Commercial installations may also require review or approval by a licensed engineer, health authority, or local building department.

The filter must be installed:

• On a stable and level equipment pad
• In an accessible service location
• With adequate clearance for lid removal and media replacement
• With properly supported plumbing
• With a pressure-rated backwash system
• With an appropriately sized waste-discharge line
• Below the maximum working pressure of 50 PSI

Always shut off the pump and completely relieve system pressure before opening or servicing the filter.

Warranty Information

This genuine Jandy product is covered by the applicable Jandy/Fluidra manufacturer warranty when purchased through an authorized dealer and installed according to current manufacturer requirements.

Professional installation is required. Warranty coverage may not apply to damage caused by:

• Excessive system pressure
• Improper plumbing
• Incorrect flange installation
• Insufficient backwash flow
• Improper filter media
• Freezing
• Chemical damage
• Hydraulic shock
• Unsupported plumbing
• Installation that does not follow applicable codes or manufacturer instructions

Frequently Asked Questions

What is the filtration area of the SFSM100F?

The filter provides 5.0 square feet of filtration area.

What is the maximum flow rate?

The maximum published filtration flow rate is 100 GPM.

What is the minimum backwash flow?

Jandy specifies a minimum backwash flow of 75 GPM.

What size are the plumbing connections?

The SFSM100F uses 3-inch ANSI-150 flange connections.

Are the flange kits included?

The standard factory filter does not include the flange connection kits. They should only be listed as included when Pool Supply Depot is bundling them with the filter.

How much sand does the filter require?

The sand-only configuration requires approximately 679 pounds of approved filter sand.

Can it use sand and gravel?

Yes. The published layered-media configuration uses approximately 120 pounds of pea gravel and 558 pounds of filter sand.

Does the filter include a backwash valve?

No. The required backwash-valve assembly is sold separately unless specifically included in a custom package.

What is the maximum working pressure?

The maximum working pressure is 50 PSI.

What size pool can it support?

At 100 GPM, it can theoretically turn over 36,000 gallons in six hours. Final sizing depends on local commercial codes, pool volume, required turnover time, plumbing, and actual system flow.
