Product Overview
The Pentair A&A QuikSkim Ultra 507310 is a Venturi-powered pool skimmer designed to provide strong surface-debris removal while reducing dependence on traditional pump suction.
Instead of relying entirely on the suction side of the circulation system, QuikSkim Ultra uses existing return-water pressure to create a strong Venturi skimming action. This allows more pump suction to remain available for the main drain, in-floor cleaning system, or other circulation functions.

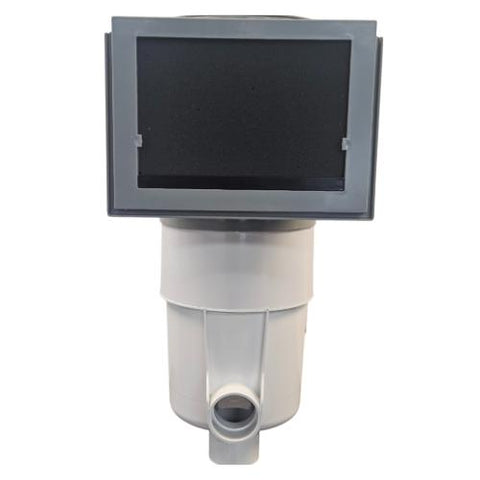

The 507310 configuration features a gray skimmer body with Protecta Foam and is supplied without the deck ring or lid, making it ideal for new pool construction where the desired ring and lid color will be selected separately. Pentair also equips the QuikSkim Ultra design with a large 9-inch ultra-high debris basket for increased debris capacity.
Key Features
- Genuine Pentair / A&A OEM QuikSkim Ultra
- Manufacturer Part Number: 507310
- Gray skimmer body
- Includes Protecta Foam
- Ring and lid are not included
- Venturi-powered surface skimming
- Uses return-water pressure to create stronger skimming action
- Helps reduce the amount of pump suction required for surface skimming
- Large 9" ultra-high debris basket
- Helps improve debris collection capacity
- Excellent companion for variable-speed pump systems
- Durable housing designed for pool construction environments
- Suitable for concrete, vinyl, and fiberglass pools
- Designed for new construction and remodel applications
Specifications
| Specification | Details |
|---|---|
| Brand | Pentair / A&A |
| Product Line | QuikSkim® Ultra |
| Part Number | 507310 |
| Product Type | Venturi Powered Pool Skimmer |
| Body Color | Gray |
| Protecta Foam | Included |
| Ring Included | No |
| Lid Included | No |
| Bonding Lug | No |
| Debris Basket | 9" Ultra-High Basket |
| Skimming Method | Venturi / Return-Water Powered |
| Pool Types | Concrete, Vinyl & Fiberglass |
| Application | Swimming Pool |
| OEM | Yes |
Important Part Number Difference
Pentair's current catalog distinguishes between two nearly identical gray QuikSkim Ultra configurations:
| Part Number | Configuration |
|---|---|
| 507310 | Gray body, Protecta Foam, no ring/lid — without bonding lug |
| 506510 | Gray body, Protecta Foam, no ring/lid — with bonding lug |
So if the installation requires the factory bonding-lug configuration, use 506510 instead of 507310.
How QuikSkim Ultra Works
QuikSkim Ultra uses water already returning to the pool to generate a Venturi effect inside the skimmer.
The return-water stream creates a low-pressure area that pulls surface water and floating debris toward the skimmer. This means the circulation pump does not have to dedicate as much suction to the skimmer.
Potential benefits include:
- Stronger surface skimming
- More suction available for the main drain
- Better integration with in-floor cleaning systems
- Efficient operation with variable-speed pumps
- Improved collection of leaves and floating debris
9" Ultra-High Debris Basket
The QuikSkim Ultra incorporates a 9-inch ultra-high debris basket, providing greater debris capacity than smaller traditional skimmer baskets.
This can be especially beneficial for pools exposed to:
- Leaves
- Landscaping debris
- Wind-blown material
- Insects
- Surface contaminants
Pentair specifically highlights the 9" basket as a key QuikSkim Ultra feature.
No Ring or Lid Included
The 507310 does not include the deck ring or lid.
This configuration is useful during new construction because the installer can select a separate ring and lid that best matches the finished pool deck.
Pentair offers QuikSkim Ultra configurations with several different ring/lid colors, including:
- White
- Gray
- Tan
- Other application-specific colors depending on configuration
Protecta Foam Included
The 507310 is supplied with Protecta Foam, which helps protect the skimmer during the pool construction and deck-finishing process.
Pentair categorizes this model as:
QuikSkim Ultra with Protecta — Gray Body — No Lid or Ring.
Ideal Applications
The Pentair 507310 is an excellent choice for:
- New pool construction
- Pool remodels
- In-floor cleaning systems
- Variable-speed pump installations
- High-debris environments
- Pools where ring/lid color will be selected separately
- Concrete pools
- Vinyl pools
- Fiberglass pools
Frequently Asked Questions
What is Pentair 507310?
507310 is a gray-body Pentair A&A QuikSkim Ultra Venturi skimmer with Protecta Foam and no ring or lid.
Does 507310 include the lid?
No. The lid is not included.
Does it include the deck ring?
No. Both the ring and lid must be purchased separately.
Does it include Protecta Foam?
Yes.
Does 507310 have a bonding lug?
No. Pentair identifies 506510 as the corresponding version with a bonding lug.
What is the difference between 507310 and 506510?
They are both gray-body QuikSkim Ultra skimmers with Protecta Foam and no ring/lid.
- 507310 — without bonding lug
- 506510 — with bonding lug
Is this a traditional suction skimmer?
Not exactly. QuikSkim Ultra uses return-water pressure to create Venturi-powered skimming action, reducing its dependence on pump suction.
Does it include a debris basket?
The QuikSkim Ultra system is designed around Pentair's 9-inch ultra-high debris basket.
Can it be used with a variable-speed pump?
Yes. The Venturi design is well suited to modern circulation systems where efficient use of pump suction and return flow is important.
What pool types can use QuikSkim Ultra?
Pentair lists the QuikSkim Ultra for concrete, vinyl, and fiberglass pools.
