Product Overview

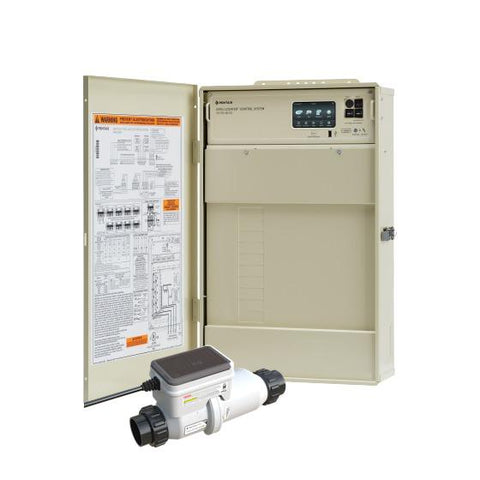

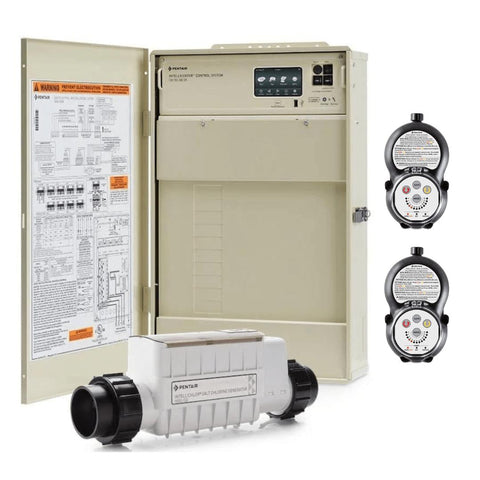

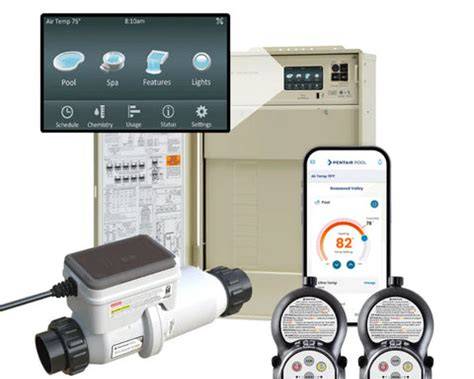

The Pentair IntelliCenter 523967 is a complete pool and spa automation package combining the IntelliCenter Load Center, i5PS shared-equipment personality system, IntelliChlor Plus40 Salt Chlorine Generator, integrated salt-chlorine-generator transformer, High Power Wireless connectivity, and two Compool valve actuators.
This configuration is designed for pool and spa combinations that share the same filtration and heating equipment. The i5PS system provides five high-voltage relay circuits—four auxiliary circuits plus one filter-pump circuit—for centralized control of pumps, heaters, lighting, water features, and other pool equipment.
The 523967 is especially important to distinguish from 523964: both are i5PS IntelliCenter systems with IntelliChlor Plus40, but 523967 includes two Compool valve actuators, while 523964 is configured with two IntelliValve actuators. Pentair introduced 523967 as the replacement for legacy 523683.
Key Features
- Complete IntelliCenter i5PS pool/spa automation system
- Designed for shared-equipment pool and spa installations
- IntelliCenter Load Center
- 5 high-voltage relays
- 4 auxiliary circuits plus filter-pump control
- Includes IntelliChlor Plus40 Salt Chlorine Generator
- Salt chlorination for pools up to 40,000 gallons
- IntelliChlor Plus40 produces up to approximately 1.4 lbs. of chlorine per day at 100% output
- Integrated salt-chlorine-generator transformer
- Includes 2 Compool valve actuators
- Includes High Power Wireless
- Color touchscreen interface
- Setup wizard for easier system programming
- Remote monitoring and control through the Pentair Pool app
- Controls compatible pumps, heaters, lights, valves, water features, and auxiliary equipment
- Expandable IntelliCenter platform
The included Plus40 cell is rated for pools up to 40,000 gallons with chlorine production of approximately 1.4 lb/day at maximum output.
What's Included
- Pentair IntelliCenter Load Center
- i5PS Personality Kit
- Five high-voltage relays
- IntelliChlor Plus40 salt cell
- Salt chlorine generator transformer
- 2 Compool valve actuators
- High Power Wireless connectivity
- Outdoor IntelliCenter control panel
- Water and air temperature sensors
- Required control-system components
Specifications
| Specification | Details |
|---|---|
| Manufacturer | Pentair |
| Product Line | IntelliCenter |
| Manufacturer Part Number | 523967 |
| Automation Configuration | i5PS |
| Application | Pool & Spa |
| Equipment Type | Shared Equipment |
| Enclosure | Load Center |
| Total Relay Circuits | 5 |
| Auxiliary Circuits | 4 |
| Filter Pump Circuit | 1 |
| Salt System | Included |
| Salt Cell | IntelliChlor Plus40 |
| Maximum Pool Capacity | 40,000 Gallons |
| Chlorine Production | Up to 1.4 lb/day |
| SCG Transformer | Included |
| Valve Actuators | 2 Compool Actuators |
| High Power Wireless | Included |
| Interface | Color Touchscreen |
| Remote Control | Pentair Pool App |
| Approx. Shipping Weight | 40 lb |
| Approx. Shipping Dimensions | 44" x 20" x 9.5" |
What Does i5PS Mean?
The i5PS configuration is designed for a pool and spa that share major equipment, such as the circulation pump, filtration system, and heater.
It provides:
- 1 filter-pump circuit
- 4 auxiliary circuits
- 5 total relays
The auxiliary circuits can be assigned to equipment such as pool lights, spa lights, blowers, water features, booster pumps, landscape lighting, or other compatible equipment.
IntelliChlor Plus40 Salt Chlorination
The included IntelliChlor Plus40 produces chlorine directly from salt dissolved in the pool water. The salt system integrates with IntelliCenter, allowing automation and sanitation equipment to operate as part of the same Pentair control platform.
The Plus40 is designed for pools up to 40,000 gallons and produces approximately 1.4 pounds of chlorine per 24 hours at 100% output.
523967 vs. 523964
| Feature | 523967 | 523964 |
|---|---|---|
| IntelliCenter Configuration | i5PS | i5PS |
| Load Center | Yes | Yes |
| IntelliChlor Plus40 | Yes | Yes |
| Salt Transformer | Yes | Yes |
| High Power Wireless | Yes | Yes |
| Valve Actuators | 2 Compool | 2 IntelliValve |
| Shared Pool/Spa Equipment | Yes | Yes |
For customers specifically needing standard Compool-style actuators, 523967 is the correct configuration.
Replacement Information
Pentair 523967 replaces legacy part number 523683.
The updated package changes the previous IntelliChlor configuration to Pentair's newer IntelliChlor Plus40 while maintaining the i5PS Load Center configuration and two Compool valve actuators.
Frequently Asked Questions
Does Pentair 523967 include the salt cell?
Yes. It includes the IntelliChlor Plus40 Salt Chlorine Generator.
Does it include the salt transformer?
Yes. The salt chlorine generator transformer is included.
What size pool is the included salt cell designed for?
The IntelliChlor Plus40 is rated for pools up to 40,000 gallons.
How many relays are included?
The i5PS configuration provides five relays—four auxiliary circuits plus the filter-pump circuit.
Does 523967 include valve actuators?
Yes. It includes two Compool valve actuators.
Is this a pool-only system?
No. The i5PS configuration is designed primarily for pool/spa combinations with shared equipment.
Does it include wireless control?
Yes. The 523967 configuration includes High Power Wireless connectivity.
What part number did 523967 replace?
Pentair 523967 replaces 523683.
