Product Overview

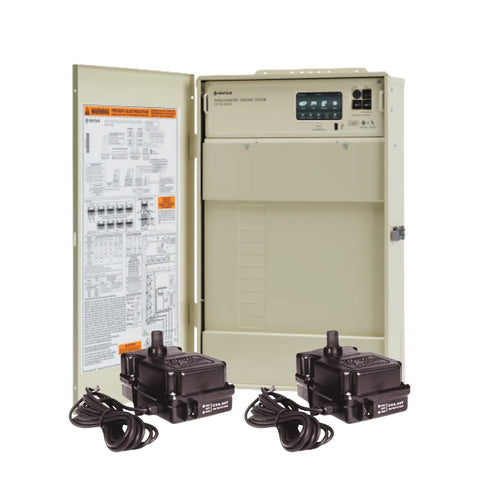

The Pentair IntelliCenter 523682 is a complete i5PS pool and spa automation system designed for shared-equipment pool/spa combinations. It combines Pentair's IntelliCenter automation platform with a Common Load Center, five high-voltage relays, and two Compool valve actuators for centralized control of pumps, heaters, lighting, water features, valves, and other pool equipment.
The i5PS configuration is designed for a pool and spa that share filtration and heating equipment. It includes five relays total: one dedicated filter-pump relay plus four auxiliary circuits.
This model is the non-salt version. It does not include an IntelliChlor salt cell or IntelliChlor transformer. Pentair identifies its non-salt Load Center configuration as being without salt-chlorine-generator support.
Key Features
- IntelliCenter automation for pool/spa shared-equipment systems
- i5PS personality configuration
-
5 high-voltage relays
- 1 filter-pump relay
- 4 auxiliary relays
- Includes 2 Compool valve actuators
- Common Load Center with integrated breaker-panel capability
- Color touchscreen interface
- Programmable schedules and equipment operation
- Controls compatible pumps, heaters, pool/spa valves, lighting and water features
- Expandable IntelliCenter architecture
- Remote-control capabilities supported through the IntelliCenter platform and compatible connectivity accessories
- Designed for residential pool and spa automation systems
What's Included
- Pentair IntelliCenter Common Load Center
- i5PS personality system
- Five high-voltage relays
- Two Compool valve actuators
- Outdoor control/interface components
- Required system sensors and installation components supplied with the IntelliCenter configuration
Salt chlorine generator and IntelliChlor salt cell are not included.
Specifications
| Specification | Details |
|---|---|
| Manufacturer | Pentair |
| Product Line | IntelliCenter |
| Manufacturer Part Number | 523682 |
| Configuration | i5PS |
| Application | Pool & Spa |
| Equipment Configuration | Shared Equipment |
| Enclosure Type | Common Load Center |
| High-Voltage Relays | 5 |
| Auxiliary Circuits | 4 + Filter Pump |
| Valve Actuators Included | 2 Compool Actuators |
| Salt System | No |
| IntelliChlor Cell Included | No |
| IntelliChlor Transformer | No |
| Control Interface | Color Touchscreen |
| UPC | 788379907433 |
| Approx. Shipping Weight | 40 lb |
| Approx. Shipping Dimensions | 42" x 20.5" x 7.5" |
i5PS Configuration Explained
The PS designation means the system is intended for a pool/spa combination using shared equipment. Pentair's i5PS configuration provides five relay-controlled circuits:
Filter Pump + AUX 1 + AUX 2 + AUX 3 + AUX 4
This makes it well suited for installations involving equipment such as a variable-speed pump, heater, pool/spa lighting, booster pump, water feature or other relay-controlled equipment.
523682 vs. 523683
A key distinction for customers:
| Model | Configuration |
|---|---|
| 523682 | i5PS Common Load Center — without salt system |
| 523683 | i5PS Common Load Center — includes IC40 salt system |
Pentair lists both versions and confirms that each includes two Compool valve actuators.
Installation Notes
The 523682 is intended for permanent installation at the pool equipment pad. Because it contains line-voltage equipment and controls multiple pool electrical loads, installation should be completed in accordance with Pentair instructions and applicable electrical codes.
This is particularly important when connecting pumps, heaters, lighting transformers, valve actuators and additional auxiliary equipment.
Frequently Asked Questions
Does Pentair 523682 include a salt cell?
No. The 523682 is the non-salt IntelliCenter i5PS system. An IntelliChlor cell and salt-system transformer are not included.
Does it include valve actuators?
Yes. Pentair specifies two Compool valve actuators with the 523682 package.
How many relays does the i5PS have?
Five total: one filter-pump relay and four auxiliary relays.
Is this for a pool only?
No. The i5PS configuration is primarily designed for a pool/spa combination using shared equipment.
Can the system control a variable-speed Pentair pump?
Yes. IntelliCenter is designed to integrate with compatible Pentair pumps and other connected pool equipment.
Can the system be expanded later?
Yes. IntelliCenter is designed as an expandable automation platform, allowing additional control capabilities and accessories to be incorporated depending on the installation.
