Product Overview

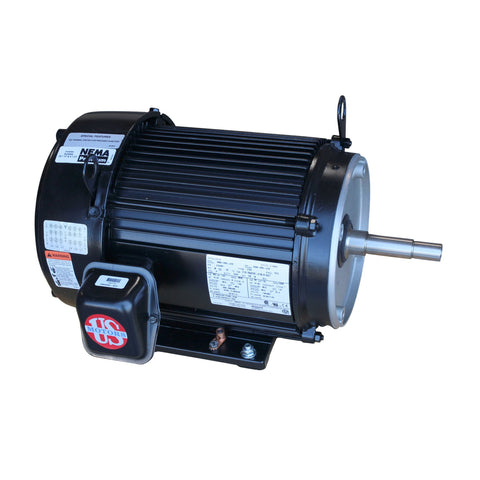

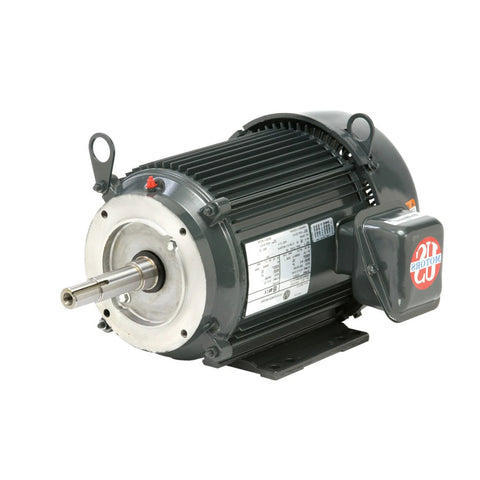

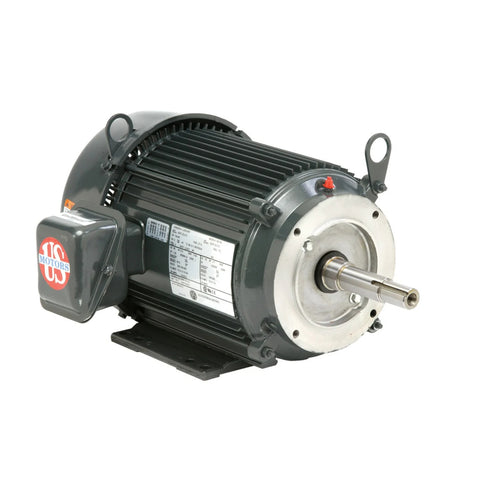

The Pentair 350732Z TEFC Motor is a genuine OEM replacement motor designed for select Pentair EQ Series commercial pool pumps. Rated at 7.5 HP, this three-phase motor operates on 208-230/460V, 60 Hz electrical service and is designed for compatible EQKT750 pump configurations.
Its Totally Enclosed Fan Cooled construction provides increased protection from moisture, dirt, and airborne contaminants compared with an open motor design. Built for demanding commercial pool environments, the 350732Z provides dependable continuous-duty performance while allowing the existing EQ Series pump wet end to remain in service.
Key Features
Genuine Pentair OEM Replacement
Factory replacement motor engineered for compatible Pentair EQ Series commercial pumps.
7.5 HP Commercial Performance
Provides the power required for high-flow EQKT750 commercial swimming pool circulation systems.
Three-Phase Multi-Voltage Operation
Designed for 208-230/460V, three-phase, 60 Hz commercial electrical systems.
Totally Enclosed Fan Cooled Design
TEFC construction helps protect internal motor components while an external fan provides cooling during operation.
213JMZ Motor Frame
Special JMZ mounting configuration provides proper alignment with compatible EQ Series pump wet ends.
Commercial-Duty Construction
Features Class F insulation, permanently lubricated ball bearings, and a stainless-steel shaft extension for demanding commercial applications.
Benefits
- Genuine Pentair OEM replacement motor
- Restores compatible EQKT750 pump operation
- 7.5 HP commercial-duty performance
- 208-230/460V electrical flexibility
- Three-phase operation
- TEFC enclosure for enhanced environmental protection
- Stainless-steel shaft construction
- Permanently lubricated bearings
- Designed for continuous commercial operation
- Allows motor replacement without replacing the complete pump
Specifications
| Specification | Details |
|---|---|
| Brand | Pentair |
| Series | EQ Series |
| Manufacturer Part Number / SKU | 350732Z |
| UPC / Barcode | 788379864712 |
| Product Type | Replacement Pool Pump Motor |
| Compatible Pump Model | EQKT750 |
| Compatible Pump SKUs | 340605, 340609 |
| Horsepower | 7.5 HP |
| Voltage | 208-230/460V |
| Phase | Three Phase |
| Frequency | 60 Hz |
| Full Load Amps | Approx. 19.9-17.8/8.9A |
| Service Factor | 1.25 |
| Service Factor HP | 9.38 HP |
| Motor Enclosure | Totally Enclosed Fan Cooled (TEFC) |
| Motor Frame | 213JMZ |
| Speed | Single Speed |
| Motor Speed | Approx. 3500 RPM |
| Insulation | Class F |
| Shaft | Stainless Steel |
| Duty | Continuous |
| Product Weight | 115 lb |
| Shipping Dimensions | 32 x 24 x 20 in. |
| Application | Commercial Pool |
| Warranty | 1-Year General Warranty |
Installation Information
Motor replacement requires disassembly of the EQ Series pump and proper connection to the existing pump wet end. Electrical power must be completely disconnected and locked out before installation or servicing.
Because this is a three-phase motor, correct motor rotation must be verified after wiring. Incorrect rotation can significantly reduce pump performance and may damage the equipment.
Inspect the mechanical shaft seal, impeller, diffuser, O-rings, and associated hardware during motor replacement. Replacing worn sealing components at the same time is recommended.
Installation should be completed by a qualified commercial pool professional and licensed electrician where required.
Confirm Before Ordering
Pentair part 350732Z is intended for compatible EQKT750 configurations, including:
- 340605 – EQKT750 with strainer
- 340609 – EQKT750 without strainer
- 7.5 HP
- Three phase
- 208-230/460V
- 60 Hz
- TEFC motor configuration
Do not substitute this motor for an EQK750 pump equipped with an Open Drip Proof motor. TEFC and ODP EQ Series configurations use different replacement motors.
Warranty Information
The Pentair 350732Z carries a 1-year general warranty. Warranty eligibility and coverage may depend on proper installation, application, purchase channel, proof of purchase, and current Pentair warranty requirements.
Customer Q&A
Q: Is the Pentair 350732Z a TEFC motor?
Yes. It features a Totally Enclosed Fan Cooled motor enclosure.
Q: What pump does the 350732Z fit?
It is designed for compatible Pentair EQKT750 commercial pumps, including pump configurations 340605 and 340609.
Q: Is this motor single phase?
No. The 350732Z is a three-phase motor.
Q: What voltage does it support?
It is designed for 208-230/460V, 60 Hz three-phase electrical service.
Q: Does this listing include the complete pump?
No. This listing is for the replacement motor only. The pump wet end, strainer, impeller, diffuser, shaft seal, and other hydraulic components are not included unless specifically stated.
