Product Overview

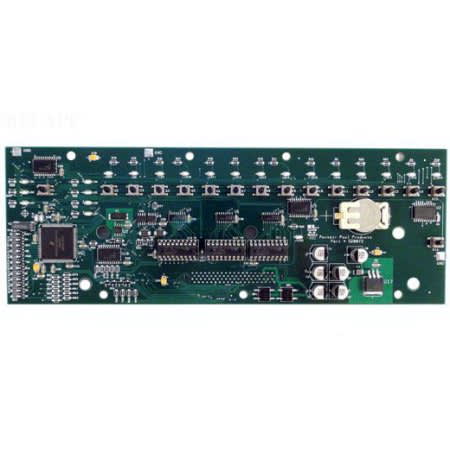

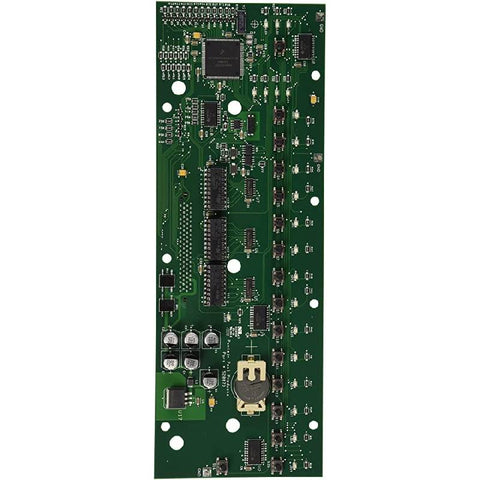

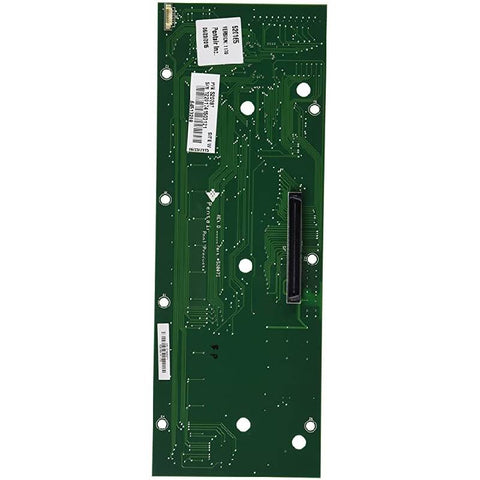

Restore the core electronics of a compatible Pentair IntelliTouch® Pool and Spa Automation System with the Pentair 520287 Universal Outdoor Controller Motherboard. This genuine Pentair printed circuit board serves as the main motherboard inside compatible IntelliTouch outdoor control panels and provides the electronic foundation used with the system's appropriate personality circuit board.

The IntelliTouch automation platform uses different personality boards to determine system configuration and available equipment-control functions. The 520287 motherboard works as the universal base board, while the installed IntelliTouch personality board determines whether the system operates as a shared pool/spa system, single-body system, dual-equipment system, or expansion center.

This replacement board is intended for repair of an existing compatible IntelliTouch automation system when the original motherboard has failed. Because Pentair IntelliTouch systems have been produced in multiple configurations and generations, the existing motherboard, personality board, and system model should always be verified before ordering.

Key Features

• Genuine Pentair OEM circuit board
• Manufacturer Part Number: 520287
• Universal IntelliTouch outdoor controller motherboard
• Printed Circuit Board / PCB
• Designed for compatible Pentair IntelliTouch automation systems
• Works with multiple IntelliTouch personality configurations
• Replacement for failed outdoor control motherboard
• Supports pool and spa automation applications
• Installed inside compatible IntelliTouch Load Centers and Power Centers
• Does not replace the separate system personality board
• Professional installation recommended
• Genuine factory Pentair component

Product Specifications

Compatible IntelliTouch Configurations

Pentair lists the 520287 universal motherboard alongside IntelliTouch personality boards used in configurations including:

• i5+3
• i7+3
• i9+3
• i5+3S
• i9+3S
• i10+3D
• i5X Expansion Center
• i10X Expansion Center

Compatibility depends on the complete IntelliTouch system and installed personality board.

Motherboard vs. Personality Board

The 520287 is the universal motherboard, not the personality board.

Pentair uses separate personality boards such as:

• 520265 – i5+3
• 520266 – i7+3
• 520267 – i9+3
• 520296Z – i5+3S
• 520078Z – i9+3S
• 520077Z – i10+3D
• 520080Z – i5X
• 520079Z – i10X

If only the personality board has failed, replacing the 520287 motherboard may not correct the problem. Proper diagnosis is recommended before purchasing electronic automation components.

Common Reasons for Replacement

The motherboard may require replacement when a properly diagnosed IntelliTouch system experiences:

• Complete outdoor control-panel failure
• Communication problems
• Failed motherboard circuitry
• Visible PCB damage
• Burned or corroded components
• Damage caused by electrical surges
• Internal control-board faults

Other components such as transformers, breakers, communication wiring, personality boards, relays, or power supplies can create similar symptoms, so troubleshooting should be performed before replacing the motherboard.

Installation Information

Automation circuit boards contain sensitive electronic components and are connected to equipment operating around line voltage.

Always disconnect power at the circuit breaker before servicing the IntelliTouch system.

Installation should be performed by a qualified pool automation technician or electrician familiar with Pentair IntelliTouch controls.

Frequently Asked Questions

What is Pentair 520287?

Pentair 520287 is the Universal Outdoor Controller motherboard used in compatible IntelliTouch automation systems.

Does it include the personality board?

No. The appropriate IntelliTouch personality board is a separate component.

Is it compatible with i5+3 systems?

Yes. Pentair lists the universal motherboard for IntelliTouch systems that use the i5+3 personality configuration.

Does it work with i7+3 and i9+3?

Yes, when installed in the appropriate compatible IntelliTouch system with the correct personality board.

Is this a complete automation system?

No. It is the motherboard only and does not include a Load Center, enclosure, relays, transformer, personality board, or other automation components.

Is 520287 still manufactured?

Current distributor information identifies 520287 as obsolete with no listed superseding part. Availability may therefore depend on remaining dealer inventory.

Is this a genuine Pentair part?

Yes. 520287 is a genuine Pentair IntelliTouch OEM motherboard.
