Product Overview

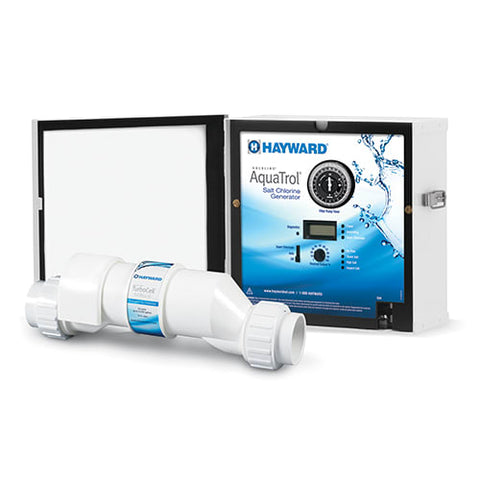

The Hayward AquaTrol Above Ground Salt System with Twist Lock Cord W3AQTROLRJTL is a convenient salt chlorine generator designed specifically for above-ground swimming pools up to 18,000 gallons. This system automatically converts dissolved salt into chlorine, helping keep pool water clean, clear, and comfortable while reducing the need to manually handle liquid chlorine or chlorine tablets.
This RJ-TL version includes return jet fittings and a twist-lock line cord and outlet. The RJ configuration mounts the salt cell directly to the pool return jet on the outside of the pool, while the TL configuration is designed for twist-lock electrical connections. Hayward lists the AquaTrol RJ-TL model with GTIN 761418002955, 0.75 lbs/day salt output, twist-lock compatibility, and replacement cell compatibility with GLX-CELL-5, T-CELL-5, and TCELLS318.
Ideal For
Above-ground swimming pools
Pools up to 18,000 gallons
Pool owners converting to salt chlorination
Systems using return jet mounted installation
Installations requiring a twist-lock line cord and outlet
Customers who want built-in pump timer control
Pool owners looking to reduce manual chlorine handling
Key Features
Designed for Above-Ground Pools
The AquaTrol system is made for above-ground pools up to 18,000 gallons, making it a practical salt chlorination upgrade for many residential above-ground pool setups.
Salt Chlorine Generation
AquaTrol automatically converts dissolved salt in the pool water into chlorine, helping sanitize the pool without routine measuring and dosing of traditional chlorine products.
GLX-CELL-5 Salt Cell Included
This system includes the AquaTrol salt cell and is compatible with GLX-CELL-5, T-CELL-5, and TCELLS318 replacement cells.
Return Jet Fitting Model
The RJ model mounts the cell directly to the pool return jet on the outside of the pool, making it different from HP models that use hose or pipe fittings.
Twist-Lock Line Cord and Outlet
The TL version uses a twist-lock line cord and outlet. Hayward’s manual notes that TL versions use a 120V/20A twist-lock line cord and receptacle.
Built-In 24-Hour Pump Timer
The integrated timer controls the filtration pump and allows multiple pump periods per day. Hayward lists timer programming in increments as small as 15 minutes.
Digital Salt Display
The digital salt display helps pool owners monitor salt level readings and system status.
Diagnostic Indicators
Built-in diagnostic indicators help simplify operation, system monitoring, and troubleshooting.
Superchlorinate Function
The Superchlorinate feature provides extra chlorine production when needed, such as after heavy pool use, high heat, or challenging water conditions.
0.75 lbs/day Chlorine Output
Hayward lists this AquaTrol model with 0.75 lbs. per day salt output for above-ground pool chlorination.
Benefits
The Hayward W3AQTROLRJTL is a strong choice for above-ground pool owners who want the comfort and convenience of salt chlorination with return-jet installation and twist-lock electrical compatibility. By generating chlorine automatically from dissolved salt, AquaTrol helps reduce the need to buy, store, and manually dose traditional chlorine products.
The built-in pump timer adds extra convenience by allowing the filtration pump to plug into the AquaTrol’s timer-controlled outlet. With the included salt cell, return jet fittings, twist-lock cord and outlet, digital salt display, diagnostic indicators, and Superchlorinate function, this system provides a user-friendly saltwater upgrade for compatible above-ground pools.
Specifications
| Specification | Details |
|---|---|
| Brand | Hayward |
| Series | AquaTrol |
| Model | W3AQTROLRJTL |
| Alternate Model | W3AQ-TROL-RJ-TL / AQ-TROL-RJ-TL |
| SKU | W3AQTROLRJTL |
| UPC / Barcode | 761418002955 |
| Product Type | Salt chlorination system |
| Sanitization Type | Salt chlorine generator |
| Pool Type | Above-ground pools |
| Pool Capacity | Up to 18,000 gallons |
| Salt Output | 0.75 lbs. per day |
| Salt Cell Included | Yes |
| Included Cell | GLX-CELL-5 / T-CELL-5 compatible AquaTrol cell |
| Replacement Cell Compatibility | GLX-CELL-5, T-CELL-5, TCELLS318 |
| Connection Style | Return jet fittings |
| Cell Mounting | Mounted directly to pool return jet, outside of pool |
| Cord Type | Twist-lock line cord |
| Outlet Type | Twist-lock timer-controlled outlet |
| Electrical Configuration | 120V twist-lock configuration |
| Pump Timer | Built-in 24-hour timer |
| Timer Increments | As small as 15 minutes |
| Digital Salt Display | Yes |
| Diagnostic Indicators | Yes |
| Superchlorinate Function | Yes |
| Manual Switch | ON / AUTO / OFF |
| Twist Lock | Yes |
| Master Carton Quantity | 1 |
| Shipping Dimensions | 8.5" x 14" x 18.3" |
| Shipping Weight | Approximately 24.2 lbs. |
| Parts Warranty | 2-Year Manufacturer Parts Warranty |

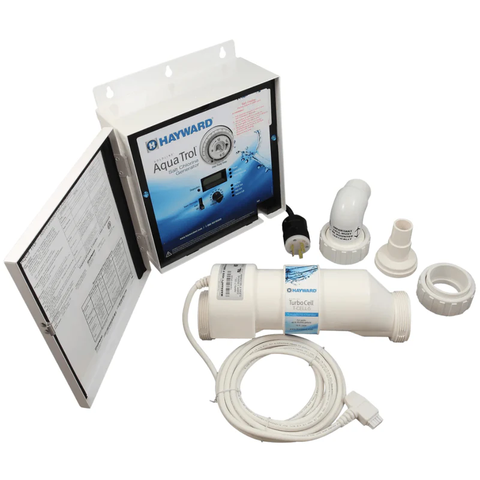

What’s Included
Hayward AquaTrol W3AQTROLRJTL control unit
GLX-CELL-5 / T-CELL-5 compatible salt cell
Return jet fittings
Twist-lock line cord
Timer-controlled twist-lock pump outlet
Built-in 24-hour pump timer
Digital salt display and diagnostic controls
Manufacturer-supplied installation components
Pool salt is not included.
Pump is not included.
This is the RJ return-jet version with twist-lock cord, not the HP hose/pipe fitting version.
Professional installation by a qualified pool professional or electrician is recommended.
Customer-Facing Q&A
What size pool is this system for?
The Hayward W3AQTROLRJTL is designed for above-ground pools up to 18,000 gallons.
Does this system include the salt cell?
Yes. This system includes the AquaTrol salt cell. Compatible replacement cells include GLX-CELL-5, T-CELL-5, and TCELLS318.
What does RJ-TL mean?
RJ means the salt cell mounts at the return jet on the outside of the pool. TL means the system uses a twist-lock line cord and outlet.
Is this the twist-lock version?
Yes. The W3AQTROLRJTL / W3AQ-TROL-RJ-TL is the return jet model with a twist-lock line cord and outlet.
Does this include hose or pipe fittings?
No. This is the return jet fitting model. The HP versions are the hose/pipe fitting models.
Does this include a pump?
No. This listing is for the AquaTrol salt chlorination system and salt cell. The pool pump is sold separately.
Does it include a timer?
Yes. AquaTrol includes an integrated 24-hour pump timer with multiple pump periods per day and 15-minute programming increments.
What is the salt output?
Hayward lists this model with a salt output of 0.75 lbs. per day.
Is this for in-ground or above-ground pools?
This AquaTrol model is designed for above-ground pools.
What is the UPC / barcode?
The UPC / barcode is 761418002955.
