Product Overview

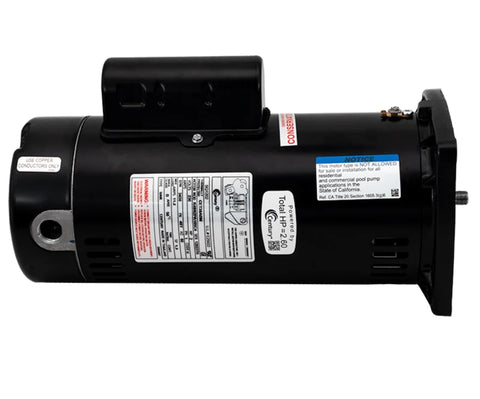

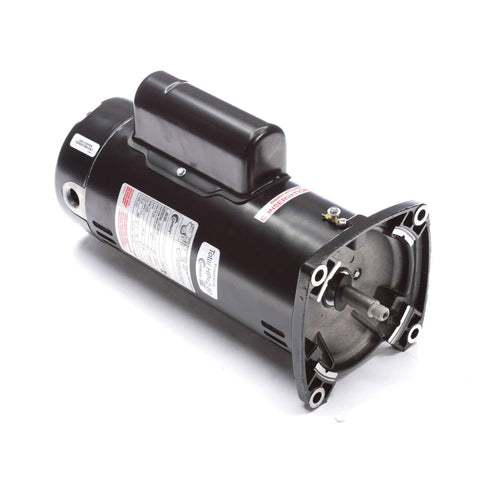

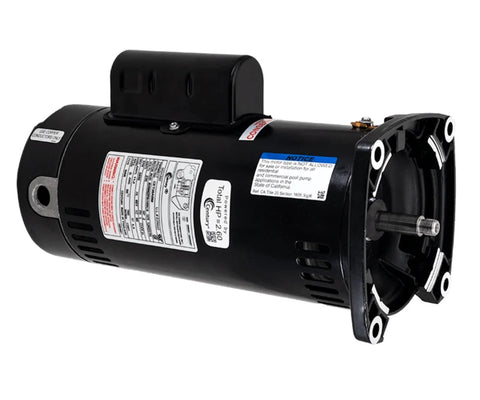

The Century SQ1202 is a heavy-duty 2 HP single-speed replacement motor designed for compatible swimming pool and spa pumps using a 48Y square-flange mounting configuration. Operating at 3450 RPM on a 230V single-phase electrical supply, the SQ1202 provides dependable power for residential and commercial pool circulation applications.
With a 1.30 service factor, continuous-duty design, automatic thermal overload protection, ball bearings, and a threaded stainless-steel shaft, this motor is engineered for reliable pool and spa pump operation. Before ordering, always compare the specifications on your existing motor nameplate and pump to confirm horsepower, total horsepower, voltage, frame, flange style, and shaft configuration.
Key Features
2 HP Single-Speed Performance
Provides dependable 3450 RPM operation for compatible pool and spa pump applications requiring a 2 HP motor.

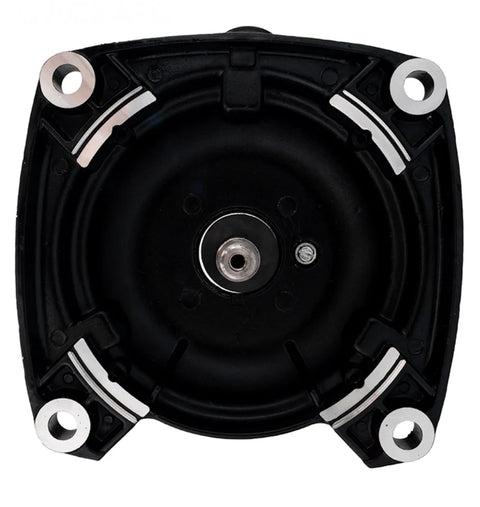

48Y Square-Flange Configuration
Designed for pumps that use the common 48Y square-flange mounting arrangement. The flange and frame style must match the existing pump.
230V Single-Phase Operation
Operates on a 230V, single-phase, 60 Hz electrical supply with a rated amperage of approximately 11.2 amps.
1.30 Service Factor
The 2 HP motor and 1.30 service factor provide approximately 2.60 total horsepower, an important specification when determining proper replacement compatibility.
Threaded Stainless-Steel Shaft
Features a 5/8-inch shaft with threaded pump-end construction for use with compatible pool pump impellers.
Automatic Overload Protection
Built-in automatic thermal protection helps protect the motor against damaging operating temperatures.
Continuous-Duty Construction
Designed for continuous pool and spa pump service with an open drip-proof enclosure and ball-bearing construction.
Benefits
- Genuine Century pool and spa replacement motor
- 2 HP motor with approximately 2.60 total horsepower
- Reliable single-speed 3450 RPM operation
- Square-flange design for compatible pump housings
- Automatic thermal overload protection
- Durable ball-bearing construction
- Stainless-steel threaded shaft
- Continuous-duty pool and spa application rating
- Suitable for replacing compatible motors without replacing the complete pump wet end
Specifications
| Specification | Details |
|---|---|
| Brand | Century |
| Manufacturer | Regal Rexnord |
| Model / SKU | SQ1202 |
| Barcode / UPC | 786674031174 |
| Horsepower | 2 HP |
| Service Factor | 1.30 |
| Total Horsepower | Approx. 2.60 THP |
| Speed | 1-Speed |
| RPM | 3450 RPM |
| Voltage | 230V |
| Phase | Single Phase |
| Frequency | 60 Hz |
| Rated Amperage | 11.2A |
| Frame | 48Y |
| Mounting | Square Flange |
| Shaft Diameter | 5/8 in. |
| Shaft Type | Threaded |
| Shaft Material | Stainless Steel |
| Rotation | Counterclockwise, pump end |
| Enclosure | Open Drip-Proof (ODP) |
| Motor Type | Capacitor Start / Capacitor Run |
| Bearings | Ball Bearing |
| Duty | Continuous |
| Thermal Protection | Automatic |
| Insulation Class | B |
| Maximum Ambient Temperature | 50°C |
Installation Information
This replacement motor must be properly matched to the existing pool pump wet end. A qualified pool professional or electrician should perform installation and confirm proper voltage, grounding, bonding, wiring, rotation, impeller compatibility, and motor sizing.
When replacing a pool pump motor, replacing the pump shaft seal at the same time is strongly recommended. Shaft seals, O-rings, gaskets, and other pump-specific installation components are generally sold separately.
Confirm Before Ordering
Check the existing motor nameplate and pump model before purchasing. Confirm:
- 2 HP motor rating
- Approximately 2.60 total horsepower requirement
- 230V electrical supply
- 48Y frame
- Square-flange mounting
- Single-speed operation
- Threaded shaft configuration
- Correct pump impeller and shaft-seal compatibility
Do not select a replacement motor based on horsepower alone. Frame type, flange configuration, voltage, service factor/total horsepower, shaft style, and pump compatibility are equally important.
Warranty Information
Manufacturer warranty coverage may vary based on installation, application, purchase channel, and current Century/Regal Rexnord warranty terms. Professional installation is recommended. Damage caused by improper installation, incorrect voltage, water intrusion, incorrect sizing, or improper pump configuration may not be covered.
Customer Q&A
Q: Is the Century SQ1202 a 2 HP motor?
Yes. The SQ1202 is rated at 2 HP with a 1.30 service factor, providing approximately 2.60 total horsepower.
Q: Can this motor operate on 115V?
No. The SQ1202 is designed for 230V operation. Verify your electrical supply before ordering.
Q: Is this a variable-speed motor?
No. The SQ1202 is a single-speed motor operating at approximately 3450 RPM.
Q: What frame does the SQ1202 use?
It uses a 48Y square-flange frame.
Q: Does the motor include a shaft seal?
Pump-specific shaft seals and installation gaskets are generally sold separately. Match the seal to the actual pump model rather than the motor model alone.
Q: Can I replace any 2 HP pool motor with the SQ1202?
Not necessarily. The existing motor's voltage, frame, mounting style, total horsepower, shaft configuration, and pump compatibility should all be verified before replacement.
