Product Overview

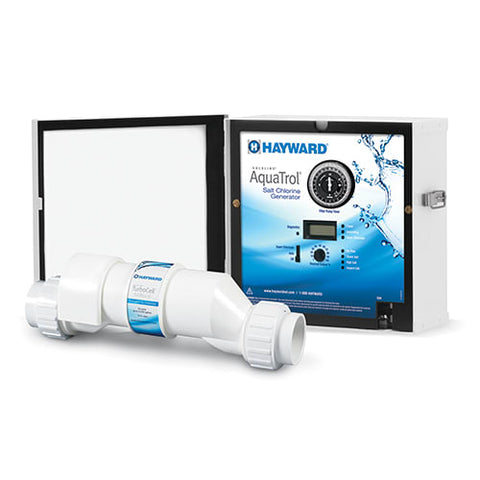

The Hayward AquaTrol Salt Chlorination System W3AQ-TROL-RJ is a convenient salt chlorine generator designed specifically for above-ground pools up to 18,000 gallons. This system automatically converts salt dissolved in the pool water into chlorine, helping keep pool water clean, clear, and comfortable with less day-to-day handling of traditional chlorine products.
The RJ model mounts the salt cell directly to the pool’s return jet on the outside of the pool, making it a practical solution for above-ground pool installations. This version includes return jet fittings and uses a straight-blade line cord and outlet, while the built-in 24-hour pump timer helps control filtration pump operation. Hayward lists the W3AQ-TROL-RJ with GTIN 610377387606, 0.75 lbs/day salt output, compatibility with GLX-CELL-5, T-CELL-5, and TCELLS318 replacement cells, and above-ground pool use up to 18,000 gallons.
Ideal For
Above-ground swimming pools
Pools up to 18,000 gallons
Pool owners converting to salt chlorination
Systems using return jet mounted installation
Customers who want built-in pump timer control
Installations requiring a straight-blade cord and outlet
Pool owners looking to reduce manual chlorine handling
Key Features
Designed for Above-Ground Pools
The AquaTrol W3AQ-TROL-RJ is designed for above-ground pools up to 18,000 gallons, making it a practical salt chlorination solution for residential above-ground pool owners.
Salt Chlorine Generation
AquaTrol automatically converts dissolved salt into chlorine through electrolysis, helping sanitize pool water without routine measuring and dosing of liquid or tablet chlorine.
GLX-CELL-5 Salt Cell Included
This system includes the AquaTrol salt cell and is compatible with GLX-CELL-5, T-CELL-5, and TCELLS318 replacement cells.
Return Jet Mounting
The RJ model mounts the cell directly to the return jet on the outside of the pool, making it different from the HP hose/pipe fitting models.
Straight-Blade Line Cord and Outlet
The W3AQ-TROL-RJ uses a straight-blade line cord and outlet, unlike TL models that use twist-lock electrical connections.
Built-In 24-Hour Pump Timer
The integrated timer controls the filtration pump and allows multiple pump periods per day. Hayward notes the timer can be programmed in increments as small as 15 minutes.
Digital Salt Display
The digital salt display helps pool owners monitor salt levels and system status for easier maintenance.
Diagnostic Indicators
Built-in diagnostic indicators help simplify operation and troubleshooting.
Superchlorinate Function
The Superchlorinate feature provides extra chlorine generation when needed, such as after heavy pool use, high temperatures, or challenging water conditions.
0.75 lbs/day Chlorine Output
Hayward lists AquaTrol with 0.75 lbs. per day salt output for above-ground pool chlorination.
Benefits
The Hayward W3AQ-TROL-RJ is a strong choice for above-ground pool owners who want the convenience of salt chlorination in a return-jet-mounted configuration. By generating chlorine automatically from dissolved salt, AquaTrol helps reduce the need to store, handle, and manually dose traditional chlorine products.
The built-in pump timer adds extra value by helping control pump run time directly from the chlorination system. With its included salt cell, return jet fittings, straight-blade cord and outlet, digital salt display, diagnostic indicators, and Superchlorinate mode, this system provides a user-friendly upgrade for compatible above-ground pools.
Specifications
| Specification | Details |
|---|---|
| Brand | Hayward |
| Series | AquaTrol |
| Model | W3AQ-TROL-RJ |
| SKU | W3AQ-TROL-RJ |
| UPC / Barcode | 610377387606 |
| Product Type | Salt chlorination system |
| Sanitization Type | Salt chlorine generator |
| Pool Type | Above-ground pools |
| Pool Capacity | Up to 18,000 gallons |
| Salt Output | 0.75 lbs. per day |
| Salt Cell Included | Yes |
| Included Cell | GLX-CELL-5 / T-CELL-5 compatible AquaTrol cell |
| Replacement Cell Compatibility | GLX-CELL-5, T-CELL-5, TCELLS318 |
| Connection Style | Return jet fittings |
| Cell Mounting | Mounted directly to pool return jet, outside of pool |
| Cord Type | Straight-blade line cord |
| Outlet Type | Straight-blade timer-controlled outlet |
| Twist Lock | No |
| Pump Timer | Built-in 24-hour timer |
| Timer Increments | As small as 15 minutes |
| Digital Salt Display | Yes |
| Diagnostic Indicators | Yes |
| Superchlorinate Function | Yes |
| Manual Switch | ON / AUTO / OFF |
| Automation | Microprocessor-controlled functions |
| Master Carton Quantity | 1 |
| Shipping Dimensions | 8.5" x 14" x 18.3" |
| Shipping Weight | Approximately 23.8–24 lbs. |
| Parts Warranty | 2-Year Manufacturer Parts Warranty |
What’s Included
Hayward AquaTrol W3AQ-TROL-RJ control unit
GLX-CELL-5 / T-CELL-5 compatible salt cell
Return jet fittings
Straight-blade line cord
Timer-controlled straight-blade pump outlet
Built-in 24-hour pump timer
Digital salt display and diagnostic controls
Manufacturer-supplied installation components
Pool salt is not included.
Pump is not included.
This is the RJ return-jet version, not the HP hose/pipe fitting version.
Professional installation by a qualified pool professional or electrician is recommended.
Customer-Facing Q&A
What size pool is this system for?
The Hayward W3AQ-TROL-RJ is designed for above-ground pools up to 18,000 gallons.
Does this system include the salt cell?
Yes. This system includes the AquaTrol salt cell. Compatible replacement cells include GLX-CELL-5, T-CELL-5, and TCELLS318.
What does RJ mean?
RJ refers to the return jet model. The salt cell mounts directly to the return jet on the outside of the pool.
Is this the twist-lock version?
No. The W3AQ-TROL-RJ uses a straight-blade line cord and outlet. The twist-lock version uses a different TL model number.
Does this include hose or pipe fittings?
No. This is the return jet fitting version. The HP models are the hose/pipe fitting versions.
Does this include a pump?
No. This listing is for the AquaTrol salt chlorination system and salt cell. The pool pump is sold separately.
Does it include a timer?
Yes. AquaTrol includes an integrated 24-hour pump timer with multiple pump periods per day.
What is the salt output?
Hayward lists this model with a salt output of 0.75 lbs. per day.
Is this for in-ground or above-ground pools?
This AquaTrol model is designed for above-ground pools.
What is the UPC / barcode?
The UPC / barcode is 610377387606.
