Product Overview

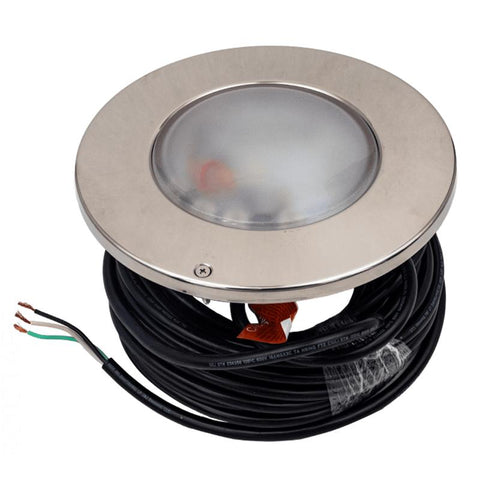

The J&J Electronics ColorSplash® XG-W LED Pool Light 23003 is a complete underwater RGBW fixture designed to provide vivid color-changing illumination and bright dedicated white light for compatible in-ground swimming pools. This model operates on 120 volts, includes a 150-foot factory-installed cord, and produces approximately 3,900 lumens of light while consuming about 59 watts.

The ColorSplash XG-W combines red, green, blue, and dedicated white LEDs in one sealed fixture. This allows the light to create rich solid colors, programmed lighting effects, and a cleaner white-light mode than standard RGB-only fixtures.

Wide-angle, high-output LEDs distribute illumination across a larger section of the pool, helping reduce dark areas and uneven coverage. The polished stainless-steel trim ring provides a durable, professional appearance around the pool niche.

This is a complete sealed underwater fixture, not a replacement bulb or retrofit lamp. A compatible full-size wet niche is required and is sold separately. Hayward currently lists part 23003 at 59 watts, although some distributor descriptions may round or identify it as 58 watts.

Key Features

• Complete ColorSplash XG-W LED pool-light fixture
• RGBW color-changing technology
• Dedicated PureWhite® lighting mode
• 120V electrical operation

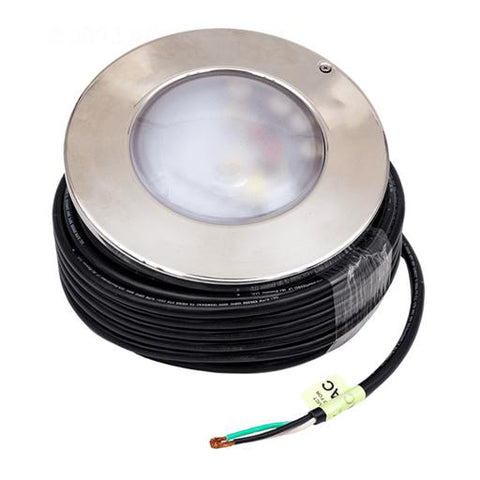

• 150-foot factory-installed cord
• Approximately 59 watts of power consumption
• 500-watt incandescent-equivalent classification
• Approximately 3,900-lumen output
• Wide-angle LED design for improved coverage
• Polished stainless-steel trim ring
• Tempered Zero-Pixelation™ glass lens

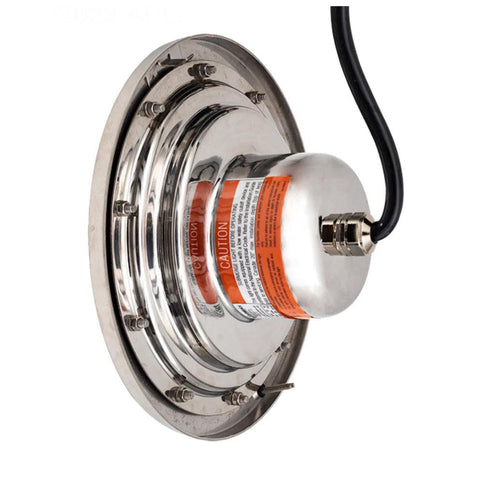

• Fully encapsulated LED housing
• Synchronizes with compatible ColorSplash fixtures
• Suitable for residential and commercial in-ground pools
• Rated for up to approximately 50,000 operating hours

Benefits

The ColorSplash XG-W allows pool owners to change the atmosphere of their pool using solid colors and programmed lighting effects. The dedicated white LEDs provide a bright white option for nighttime swimming, while the RGB LEDs create decorative colors for entertaining, holidays, and outdoor events.

The fixture uses substantially less electricity than a traditional 500-watt incandescent pool light. Its long-life LED engine can also reduce the frequency of underwater light servicing and replacement.

The 150-foot cord provides added flexibility for installations where the approved junction box is located farther from the pool. Because the cord is sealed to the fixture at the factory, it must remain continuous and should never be spliced underwater or inside the conduit.

Specifications

Official Hayward specifications identify the 23003 as a 120V, 59W RGBW pool fixture with a 150-foot cord, stainless-steel trim, and approximately 3,900-lumen output.

Installation Information

Disconnect all electrical power before installing or servicing the pool light. Confirm that the existing lighting circuit operates on 120 volts and that the wet niche, conduit, junction box, grounding, bonding, and circuit protection comply with applicable electrical codes.

Route the complete factory-installed cord continuously through the niche conduit to an approved junction box. Do not cut, shorten, splice, or modify the cord underwater or inside the conduit.

Leave sufficient cord behind the fixture so the light can be raised to the pool deck for future service. Installation must be completed by a licensed electrician or qualified pool professional.

Confirm Before Ordering

Verify that:

• Your pool-lighting circuit operates on 120V.
• You require a 150-foot cord.
• Your pool uses a compatible full-size wet niche.
• You need a complete fixture rather than a replacement bulb.
• You want RGBW color-changing illumination.
• Your existing ColorSplash lights are compatible for synchronization.
• The niche mounting screw and lower retaining catch match the fixture.

Warranty Information

The J&J Electronics ColorSplash 23003 carries a three-year limited parts warranty and a one-year labor warranty, subject to the manufacturer’s current written terms and installation requirements.

Warranty coverage does not include incorrect voltage, incompatible niches, cord modification, improper installation, chemical damage, physical damage, dry operation, or water intrusion caused by installation or servicing errors.
