Product Overview

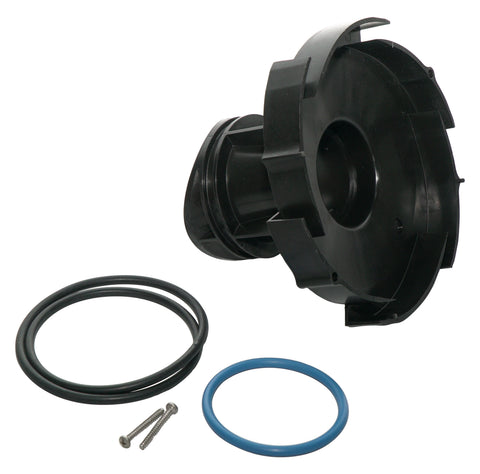

The Jandy R0842500 is a genuine OEM diffuser replacement kit designed for the Jandy VSFHP270DV2A 2.7 HP variable-speed FloPro pool pump.

The diffuser is installed inside the pump housing around the impeller. It helps direct water from the impeller into the pump’s discharge passage and supports proper hydraulic performance. This kit is ideal for replacing a diffuser that is cracked, warped, worn, or damaged during pump service.

This is a replacement diffuser kit only. The pump motor, drive, pump body, backplate, impeller, shaft seal, lid, basket, and other pump components are not included unless specifically shown or stated.

Compatible Pump Model

This diffuser replacement kit is designed for:

• Jandy VSFHP270DV2A
• Jandy VS FloPro 2.7 HP DV2A variable-speed pump

Compatibility should be confirmed using the complete pump model number located on the pump identification label.

Key Features

• Genuine Jandy OEM replacement kit
• Designed for the Jandy VSFHP270DV2A pump
• Compatible with the 2.7 HP VS FloPro DV2A configuration
• Replaces a worn, cracked, or damaged diffuser
• Helps maintain proper flow through the pump housing
• Positions water flow around the pump impeller
• Designed to fit the original Jandy pump assembly
• Suitable for professional pump repairs
• Professional installation recommended

Specifications

What Is Included

• One Jandy R0842500 diffuser replacement kit

Only the components specifically shown in the product images or manufacturer packaging are included.

Items Not Included

Unless specifically shown or stated, this kit does not include:

• Pump motor
• Variable-speed drive
• Pump body
• Pump lid
• Strainer basket
• Backplate
• Impeller
• Mechanical shaft seal
• Motor hardware
• Union assemblies
• Drain plugs
• Electrical wiring
• Communication cable
• Installation labor

What the Diffuser Does

The diffuser is a hydraulic component located between the impeller and pump housing. As the impeller moves water through the pump, the diffuser helps guide the water into the discharge side of the housing.

A damaged or incorrectly installed diffuser may contribute to:

• Reduced water flow
• Difficulty priming
• Unusual pump noise
• Internal rubbing
• Poor hydraulic performance
• Excessive vibration
• Damage to the impeller
• Improper alignment inside the pump housing

Other pump or plumbing conditions can cause similar symptoms. The pump should be inspected before replacement parts are ordered.

When to Replace the Diffuser

The diffuser may require replacement when it has:

• Visible cracks
• Warped surfaces
• Broken mounting points
• Internal wear
• Heat damage
• Damage caused by a failed impeller
• Damage from debris inside the pump
• Improper alignment with the impeller
• Excessive clearance around the impeller

The diffuser should also be inspected whenever the pump motor, impeller, backplate, or shaft seal is serviced.

Compatibility Information

The R0842500 is specifically identified for the Jandy VSFHP270DV2A 2.7 HP VS FloPro pump.

Do not select this diffuser based only on the following:

• Jandy brand
• FloPro series name
• Motor horsepower
• Pump appearance
• Variable-speed operation

Jandy manufactures multiple FloPro configurations that may use different diffusers, impellers, backplates, and internal hydraulic components.

Always verify the complete model number before ordering.

Installation Recommendations

Installation should be completed by a qualified pool professional familiar with Jandy variable-speed pump assemblies.

During installation:

1. Disconnect and lock out electrical power.
2. Close the appropriate pool plumbing valves.
3. Relieve pressure from the filtration system.
4. Drain the pump housing.
5. Remove the motor and backplate assembly.
6. Inspect the existing diffuser and impeller.
7. Check the impeller for cracks, wear, or debris.
8. Inspect all seals and O-rings.
9. Install the replacement diffuser in the correct position.
10. Confirm that the diffuser does not contact the impeller.
11. Reassemble the pump according to manufacturer procedures.
12. Prime the pump completely before operation.
13. Inspect the pump for leaks, noise, and vibration.

Never operate the pump without water. Dry operation can damage the mechanical shaft seal and other pump components.

Recommended Inspection Parts

When replacing the diffuser, inspect the following components:

• Impeller
• Mechanical shaft seal
• Diffuser seal or O-ring
• Backplate O-ring
• Pump lid O-ring
• Backplate
• Motor shaft
• Pump housing
• Drain-plug O-rings

Worn seals and O-rings should be replaced before the pump is returned to service.

Confirm Before Ordering

Please confirm all of the following before purchasing:

• Your complete pump model is VSFHP270DV2A
• Your pump is the 2.7 HP VS FloPro DV2A configuration
• Your replacement-parts diagram specifies R0842500
• The diffuser is the damaged component
• The impeller and pump housing are still serviceable
• You have identified any additional seals required
• A qualified professional will perform the repair

This item should not be ordered based on horsepower alone.

Warranty Information

Manufacturer warranty coverage is subject to Jandy’s current written warranty terms, proof of purchase, product eligibility, purchase channel, and installation requirements.

Warranty coverage generally applies to qualifying manufacturing defects and does not cover damage caused by:

• Improper installation
• Incorrect assembly
• Dry operation
• Debris inside the pump
• Freeze damage
• Chemical damage
• Excessive heat
• Use with an incompatible impeller
• Use with an incompatible pump model
• Failure of another pump component
• Normal wear and tear

Labor, troubleshooting, removal, shipping, and installation expenses are not included unless specifically authorized under the manufacturer’s written warranty.
