Product Overview
The Pentair R172275 Hardware Package is a genuine OEM replacement parts bag designed specifically for the Pentair Rainbow Model 300-29X Automatic Chemical Feeder.
This complete service hardware package groups the primary fittings, clamps, gaskets, control valve, and installation components used with the 300-29X feeder. It is ideal for replacing worn, leaking, corroded, or missing plumbing hardware without having to purchase each component individually.
Pentair lists R172275 as the complete parts bag for the 300-29X Automatic Feeder.
Key Features
- Genuine Pentair OEM replacement kit
- Manufacturer Part Number: R172275
- Designed specifically for Pentair Rainbow 300-29X
- Complete feeder hardware / parts bag
- Includes control valve and connection fittings
- Includes saddle clamps and gaskets
- Includes stainless-steel tubing clamps
- Includes silicone lubricant
- Useful for feeder installation, repair, or plumbing refurbishment
- Helps replace aging connection hardware as a group
- Not a universal chlorinator repair kit

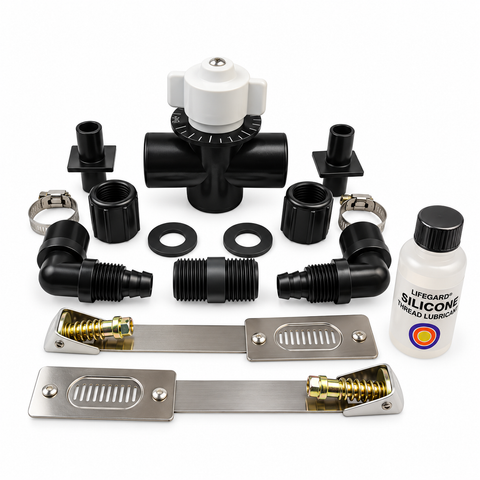

What's Included
According to Pentair's current parts catalog, the R172275 complete parts bag includes:
| Qty. | Pentair Part # | Component |
|---|---|---|
| 1 | R172256Z | 1/2" Short MPT Nipple |
| 1 | R172086Z | 1/2" Control Valve |
| 2 | R172272Z | 1/2" 90° NPT x Tube Fitting with Nut |
| 2 | R175013 | Stainless-Steel Tubing Clamp |
| 2 | R172262Z | Saddle Tube Fitting |
| 2 | R172263Z | Saddle Gasket |
| 2 | R172264Z | Saddle Clamp |
| 1 | R172036Z | Silicone Lubricant |
Note: Pentair lists R172274Z compression nuts separately as an optional component, so they should not be advertised as additional included pieces beyond the nuts supplied with the R172272Z fittings.
Specifications
| Specification | Details |
|---|---|
| Brand | Pentair |
| Product Line | Rainbow |
| Part Number | R172275 |
| Product Type | Automatic Feeder Hardware Package |
| Application | Chemical Feeder Replacement Parts |
| Compatible Model | 300-29X |
| Feeder Type | Automatic / Offline Feeder |
| OEM | Yes |
| UPC / GTIN | 788379005214 |
| Approx. Shipping Weight | 0.55–1 lb |
Compatibility
Designed specifically for:
Pentair Rainbow Model 300-29X Automatic Chemical Feeder
This package is model-specific. It should not be assumed to fit Rainbow 320, 322, or other Pentair chemical feeders, which use different replacement components.
When Should the Hardware Package Be Replaced?
The R172275 kit is a convenient option when servicing an older 300-29X feeder showing signs such as:
- Leaking tubing connections
- Worn saddle gaskets
- Damaged saddle clamps
- Corroded or damaged tubing clamps
- Faulty control valve
- Damaged connection fittings
- Missing installation hardware
- Feeder being reinstalled or replumbed
Replacing several aging connection components together can help restore a clean and secure feeder installation.
Installation Information
Before servicing a chemical feeder:
- Turn off the circulation pump.
- Shut off the feeder's water supply.
- Relieve system pressure.
- Follow all chemical-handling precautions.
- Remove damaged or worn fittings and gaskets.
- Install the corresponding R172275 replacement components.
- Verify tubing and clamp connections.
- Restart the system and inspect carefully for leaks.
Pool chemical feeders can contain concentrated sanitizer. Follow Pentair's instructions and appropriate safety procedures when opening or servicing the unit.
Frequently Asked Questions
What does Pentair R172275 fit?
It is the complete hardware / parts bag for the Pentair Rainbow 300-29X Automatic Feeder.
Does the kit include the control valve?
Yes. One R172086Z 1/2" control valve is included.
Does it include saddle clamps?
Yes. The package includes two R172264Z saddle clamps.
Are saddle gaskets included?
Yes. It contains two R172263Z saddle gaskets.
Does it include the tubing fittings?
Yes. It includes two R172272Z 1/2" 90° NPT-to-tube fittings with nuts.
Is silicone lubricant included?
Yes. Pentair lists one R172036Z silicone lubricant in the complete parts bag.
Will R172275 fit a Pentair Rainbow 320 chlorinator?
No. R172275 is specifically listed for the 300-29X feeder. Other Rainbow feeder models use different service parts.
Is this a genuine Pentair part?
Yes. R172275 is a genuine Pentair replacement hardware package.
