Product Overview

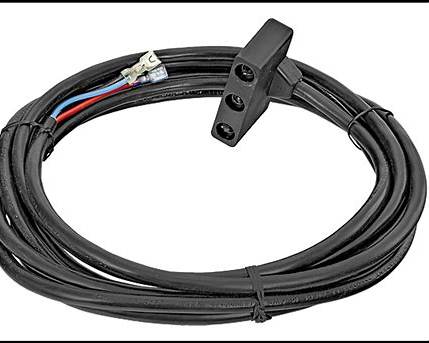

The Jandy R0402800 16' DC Power Cord is a genuine Jandy replacement electrical cable designed for compatible AquaPure® and PureLink™ 3-port salt chlorinator cells.

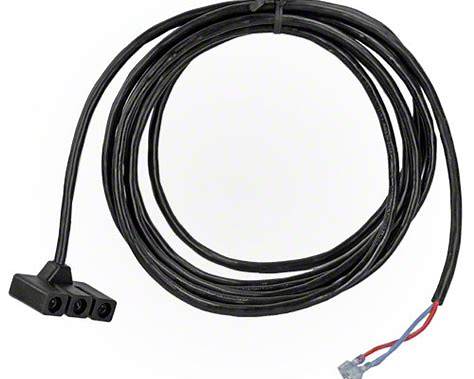

This is the cord assembly that connects directly to the electrical terminals on top of the Jandy electrolytic salt cell. The molded cell-side connector fits over the cell terminals, while the opposite end connects to the AquaPure/PureLink power or control center.
Jandy identifies R0402800 as the 16-foot DC cable for its 3-port electrolytic cell system. A 25-foot version is available separately as R0476300.
Key Features
- Genuine Jandy OEM replacement part
- Manufacturer Part Number: R0402800
- 16-foot DC power cord
- Designed for Jandy 3-port electrolytic salt cells
- Compatible with AquaPure® / PureLink™ systems using the applicable 3-port cell
- Molded cell connector attaches directly to the cell terminal studs
- Connects the salt cell to the system power/control center
- Direct replacement for a damaged, deteriorated or failed DC cell cable
- Suitable for equipment-pad replacement and service applications
Compatibility
Designed for compatible:
- Jandy AquaPure® 3-Port Cells
- Jandy PureLink™ systems using 3-Port Cells
- PLC700
- PLC1400
- Compatible Jandy 7-blade and 14-blade 3-port cell configurations
Jandy's replacement-parts documentation lists R0402800 specifically as the 16' DC cable used with its 3-port electrolytic cell assemblies.
Specifications
| Specification | Details |
|---|---|
| Brand | Jandy |
| Manufacturer | Fluidra / Jandy |
| Part Number | R0402800 |
| Product Type | Salt Cell DC Power Cord |
| Cord Length | 16 ft |
| Application | Salt Chlorination System |
| Cell Type | Jandy 3-Port Electrolytic Cell |
| Connection | Cell Terminal to Power/Control Center |
| OEM Replacement | Yes |
| Cell Included | No |
| Sensor Included | No |
| Unions Included | No |
What Is Included?
Included:
- 1 × Jandy R0402800 16' DC power cord with cell-side connector
Not Included:
- Salt cell
- Flow / temperature / salinity sensor
- Cell unions
- O-rings
- Power center
- Control board
What Does R0402800 Do?
The R0402800 carries DC electrical power between the AquaPure/PureLink control system and the electrolytic salt cell.
The large molded connector at the cell end installs over the electrical terminals located on top of the 3-port cell. Jandy specifies that this connector must be fully seated onto the cell terminal studs during installation.
Replace the Cord If You Notice:
- Damaged or cracked cell connector
- Burned or overheated connector
- Corroded electrical contacts
- Damaged insulation
- Cut or deteriorated cable
- Loose connection at the salt cell
- Intermittent salt-cell operation caused by a damaged connection
Installation Information
Before servicing the salt chlorination system:
- Turn off power to the pool equipment.
- Turn off the circulation pump.
- Disconnect the existing DC cord from the salt cell.
- Disconnect the cord from the AquaPure/PureLink power center.
- Route the replacement cable through the appropriate strain relief.
- Connect the power-center side according to the manufacturer's wiring instructions.
- Push the molded connector completely onto the salt-cell terminal studs.
Jandy specifically cautions that the DC cable connector should be fully inserted and bottomed out on the cell housing.
Related Jandy Parts
| Part Number | Description |
|---|---|
| R0402800 | 16' DC Cell Power Cord |
| R0476300 | 25' DC Cell Power Cord |
| R0452300 | 7-Blade 3-Port Cell |
| R0452400 | 14-Blade 3-Port Cell |
| R0452500 | 16' Flow / Temperature / Salinity Sensor |
| R0476400 | 25' Flow / Temperature / Salinity Sensor |
| R0452200 | 3-Port Cell O-Ring & Terminal Adapter Kit |
| R0452100 | Universal Union / Tailpiece / Plug Kit |
These components are identified together in Jandy's 3-port electrolytic cell replacement-parts diagram.
Frequently Asked Questions
Is R0402800 the connector that goes on top of the Jandy salt cell?
Yes. R0402800 is the 16-foot DC cable assembly whose molded connector installs onto the terminal studs on top of the compatible Jandy 3-port salt cell.
Does it fit a Jandy PLC1400?
Yes, the PLC1400 is part of Jandy's AquaPure 3-port cell family.
Does it fit a PLC700?
Yes, it is also used with compatible PLC700 3-port cell systems.
Is the salt cell included?
No. R0402800 is the power cord/connector assembly only.
Does it include the flow sensor cable?
No. The flow/temperature/salinity sensor is a separate component.
Is there a longer cord?
Yes. Jandy R0476300 is the corresponding 25-foot DC cable.
Is this the black rectangular connector shown on top of a Jandy salt cell?
Yes. This is the replacement assembly for the black molded electrical connector with the power cord attached on compatible Jandy 3-port cells.
