Upgrade your existing Pentair IntelliTouch® automation system to the advanced IntelliCenter® Pool Control System without replacing the entire electrical load center. The Pentair IntelliCenter Upgrade Kit 523049 is designed specifically for i10D dual-equipment / dual-body systems using a Common Load Center or Common Power Center manufactured after 2012.

This upgrade provides the modern IntelliCenter interface, wireless connectivity, advanced scheduling, equipment control, lighting management, and remote pool automation capabilities while utilizing the existing compatible Pentair enclosure and field wiring.

The 523049 is intended for current-style, non-legacy systems with the square low-voltage circuit breaker / square bezel cutout configuration. It is not the correct upgrade kit for older legacy IntelliTouch systems manufactured prior to 2012.

Key Features

• Converts a compatible Pentair IntelliTouch system to IntelliCenter automation
• i10D personality configuration
• Designed for dual-equipment / dual-body pool and spa applications
• For Common Load Center / Common Power Center configurations
• Designed for systems manufactured after 2012
• Modern IntelliCenter outdoor control panel
• High-power wireless connectivity
• Remote equipment control through the Pentair IntelliCenter platform
• Advanced equipment scheduling and automation
• Centralized pool and landscape lighting control
• Supports control of multiple compatible heaters
• Allows existing compatible enclosure and field wiring to remain in place
• Eliminates the need to replace the complete automation load center in qualifying installations

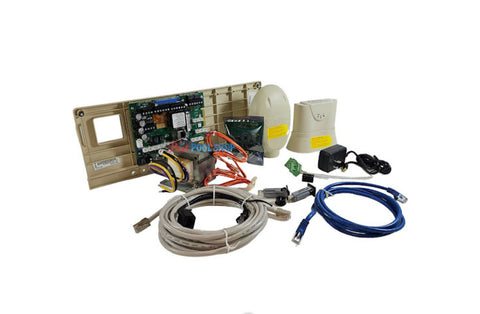

What's Included

The Pentair 523049 IntelliCenter Upgrade Kit includes the major components required to convert the compatible existing automation system:

• IntelliCenter Outdoor Control Panel / Bezel
• i10D Personality Board
• High-Power Wireless Antenna Kit
• System Transformer
• 4-Amp Circuit Breaker
• 5-Amp Circuit Breaker
• Required upgrade hardware

Included Component Information

• High-Power Wireless Kit: 523557
• Current-Style System Transformer: 522102Z
• 4-Amp Circuit Breaker: 523345
• 5-Amp Circuit Breaker: 523346

Compatibility

Manufacturer: Pentair
Product Series: IntelliCenter®
Product Type: Automation Upgrade Kit
Part Number: 523049
Personality: i10D
System Type: Dual Equipment / Dual Body
Load Center Type: Common Load Center / Common Power Center — CLC/CPC
Application: IntelliTouch to IntelliCenter Upgrade
System Generation: Current / Non-Legacy
Manufacture Date Compatibility: After 2012
Bezel Identification: Square Cutout
Wireless Connectivity: Included

Dual-Body / i10D Application

The i10D configuration is designed for dual-equipment applications, commonly used when the pool and spa operate as separate bodies with dedicated equipment rather than sharing the same primary circulation equipment.

Because Pentair offers several IntelliCenter upgrade kits for different automation configurations, it is important to verify that the existing system requires the i10D dual-equipment configuration before ordering.

Important Compatibility Notice

Pentair 523049 is intended for current-style systems manufactured after 2012.

Before ordering, verify the manufacture date and physical configuration of the existing IntelliTouch Load Center or Power Center.

Current/non-legacy systems use the square-cutout configuration.

For older legacy systems manufactured prior to 2012, a different IntelliCenter upgrade kit is required. The legacy i10D upgrade is Pentair 523218, which replaced the older 523048 part number.

If you are unsure which IntelliCenter Upgrade Kit fits your existing automation system, verify the model, manufacture date, and enclosure configuration before ordering.

Why Upgrade to IntelliCenter?

The IntelliCenter platform modernizes an older Pentair automation installation with improved connectivity and control. Instead of replacing the complete Load Center or Power Center, compatible installations can retain much of the existing electrical infrastructure while upgrading the control panel, personality board, transformer, and communications hardware.

IntelliCenter gives pool owners centralized access to equipment operation, schedules, temperatures, lighting, and other compatible pool features from a modern automation platform.

Product Specifications

Professional Installation Recommended

Pool automation systems contain high-voltage electrical components. Installation should be performed by a qualified pool professional or licensed electrician familiar with Pentair pool automation equipment.

Always disconnect power at the circuit breaker before servicing pool automation equipment and follow the current Pentair installation instructions.

Pentair IntelliCenter Upgrade Kit i10D Dual Body, After 2012 / Non-Legacy | 523049 provides a practical way to bring compatible IntelliTouch dual-equipment automation systems into the modern IntelliCenter platform without replacing the complete existing load center.
