Product Overview

The Raypak 014280 X94 Professional Series is a high-efficiency commercial condensing pool and spa heater designed for demanding aquatic applications. The S-R410-EN ASME model delivers 399,000 BTU input with 94% thermal efficiency, producing approximately 375,000 BTU of usable heating output.

Designed for commercial pools, hotels, schools, community facilities, apartments, condominiums, and high-end aquatic installations, the X94 combines an ASME stainless steel heat exchanger, digital controls, Low NOx operation, and indoor/outdoor installation capability in a compact commercial heating platform.

Key Features

399,000 BTU Heating Capacity
Provides powerful heating performance for commercial pools, spas, and aquatic facilities.

94% Thermal Efficiency
Condensing technology captures more usable heat from combustion, helping reduce energy consumption compared with conventional commercial gas heaters.

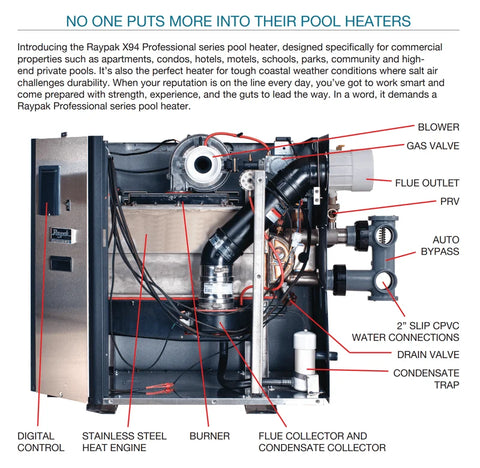

ASME Stainless Steel Heat Exchanger
Features an ASME-rated stainless steel heat exchanger with super-austenitic stainless steel tubing for durability in demanding aquatic environments.

Digital Controls
Electronic controls provide accurate pool and spa temperature management along with diagnostic capabilities for service and maintenance.

Low NOx Operation
Designed for low-emission combustion while maintaining dependable commercial heating performance.

Category IV Venting
Supports Category IV venting configurations using approved vent materials for applicable indoor installations.

Benefits

• 399,000 BTU commercial heating capacity
• High 94% thermal efficiency
• Approximately 375,000 BTU heating output
• Natural gas operation
• ASME-certified heat exchanger
• Stainless steel heat exchanger construction
• Condensing technology
• Low NOx combustion
• Digital temperature controls
• Indoor or outdoor installation
• Maximum water flow up to 125 GPM
• Compact design for commercial equipment rooms

Specifications

Installation Information

Professional installation by a qualified pool-heater technician or licensed contractor is required.

Proper natural gas supply, electrical service, water flow, condensate drainage, venting, combustion air, clearances, and plumbing must be confirmed before installation.

Indoor installations require an approved Category IV venting system. Condensing operation also requires proper management and disposal of condensate according to Raypak instructions and applicable local codes.

Always follow current Raypak installation requirements and all applicable gas, electrical, plumbing, building, and commercial pool codes.

Confirm Before Ordering

Confirm the required heating capacity, natural gas supply, site elevation, available gas pressure, electrical service, water-flow requirements, venting configuration, condensate drainage, and installation clearances before ordering.

Part 014280 is the natural gas S-R410-EN ASME X94 Professional model. Propane configurations use a different manufacturer part number.

Warranty Information

Raypak warranty coverage is subject to current manufacturer terms, commercial application requirements, professional installation, proper water chemistry, and applicable exclusions.

Retain proof of purchase, installation documentation, and equipment information for any applicable warranty claim.

Customer Q&A

How many BTUs is the Raypak 014280?
The X94 S-R410 is rated at 399,000 BTU input.

How efficient is the X94?
The heater is rated at 94% thermal efficiency.

Is the 014280 natural gas or propane?
Part 014280 is the natural gas configuration.

Is this a condensing heater?
Yes. The X94 uses condensing technology to achieve its high thermal efficiency.

Is the heat exchanger ASME rated?
Yes. This model features an ASME stainless steel heat exchanger.

Can the X94 be installed outdoors?
Yes. The heater is designed for indoor or outdoor installation.

What is the maximum water flow?
The X94 supports water flow up to 125 GPM.
