Product Overview

The Century B2853V1 Pool Pump Motor is a reliable 1 HP replacement motor designed for compatible pool and spa pumps requiring a 56Y square flange frame, single-speed operation, and 115/230V dual-voltage wiring. This motor is commonly used for residential pool circulation and filtration systems where dependable daily performance is needed.

Built for pool-duty applications, the B2853V1 features a threaded stainless steel shaft, sealed ball bearings, open drip-proof enclosure, permanent split capacitor design, and automatic thermal protection. It is a practical replacement choice for compatible in-ground pool pumps that use a 56Y square flange motor.

Ideal For

• Replacing a failed or noisy 1 HP pool pump motor
• Pool pumps requiring a 56Y square flange motor
• Residential in-ground pool circulation systems
• Compatible pumps using a threaded-shaft motor design
• Pool service technicians and equipment repairs

Key Features

• 1 HP Replacement Motor – Designed for compatible pool and spa pump systems.
• 1.25 Total Horsepower – Commonly listed as an up-rated 1 HP motor with a 1.25 service factor.
• Dual Voltage Operation – Can operate on 115V or 230V power.

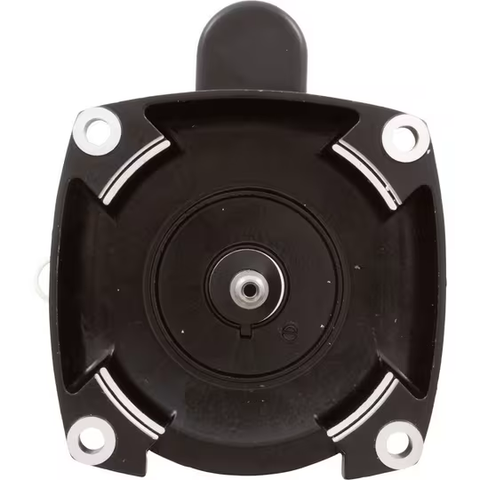

• 56Y Square Flange Frame – Fits compatible square flange pool pump housings.
• Single-Speed Performance – Runs at approximately 3450 RPM.
• Threaded Stainless Steel Shaft – Designed for secure impeller installation.
• Permanent Split Capacitor Design – Provides reliable pool pump motor performance.
• Sealed Ball Bearings – Supports smooth and dependable operation.
• Open Drip-Proof Enclosure – Designed for protected outdoor equipment areas.
• Automatic Thermal Protection – Helps protect the motor from overheating.

Benefits

Replacing only the motor can restore pool pump performance without replacing the entire pump assembly. The Century B2853V1 is a dependable option for compatible pumps requiring a 1 HP, 115/230V, 56Y square flange, single-speed motor.

Its dual-voltage design, pool-duty construction, stainless steel shaft, and thermal protection make it a reliable replacement motor for maintaining proper water circulation and filtration.

Specifications

Customer-Facing Q&A

Q: What is the Century B2853V1 used for?
A: The B2853V1 is a replacement pool and spa pump motor for compatible pumps requiring a 1 HP, 115/230V, 56Y square flange motor.

Q: Is this motor single speed or variable speed?
A: This is a single-speed pool pump motor.

Q: What voltage does this motor use?
A: The B2853V1 can operate on 115V or 230V power.

Q: What frame size is this motor?
A: This motor uses a 56Y square flange frame.

Q: Does this motor have a threaded shaft?
A: Yes. The B2853V1 uses a threaded stainless steel shaft for compatible impeller installation.

Q: What RPM does this motor run at?
A: It runs at approximately 3450 RPM.

Q: What does 1.25 THP mean?
A: THP stands for total horsepower. It is calculated from the motor horsepower and service factor. This motor is commonly listed as 1 HP with 1.25 total horsepower.

Q: What pumps is this motor commonly used with?
A: The B2853V1 is commonly used with compatible square flange pool pumps, including certain Pentair WhisperFlo, Pentair Challenger, PacFab Challenger, and other pump models requiring a 1 HP 56Y square flange motor. Always confirm compatibility with your existing motor label and pump model before ordering.

Q: Should I replace the shaft seal when installing this motor?
A: Yes. Always replace the pump shaft seal when replacing a pool pump motor to help prevent leaks and protect the new motor.

Compatibility Note

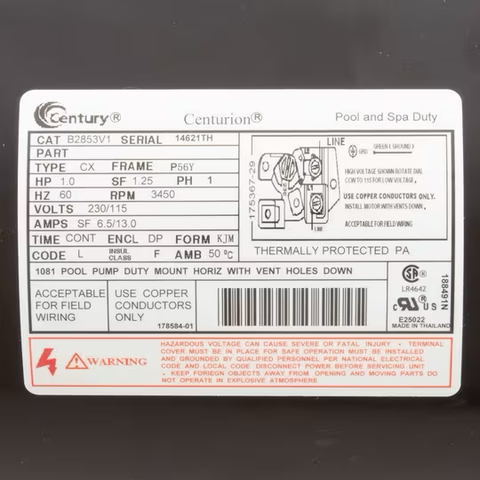

Before purchasing, compare your existing motor label to confirm the following: 1 HP, 115/230V, single phase, 60 Hz, 56Y square flange frame, threaded shaft, single-speed operation, and compatible rotation. Matching these specifications helps ensure proper fit and performance.

Important Installation Note

Professional installation is recommended. Always disconnect power at the breaker before servicing pool equipment. Replace the shaft seal, gaskets, and any worn pump components during installation.
