Product Overview

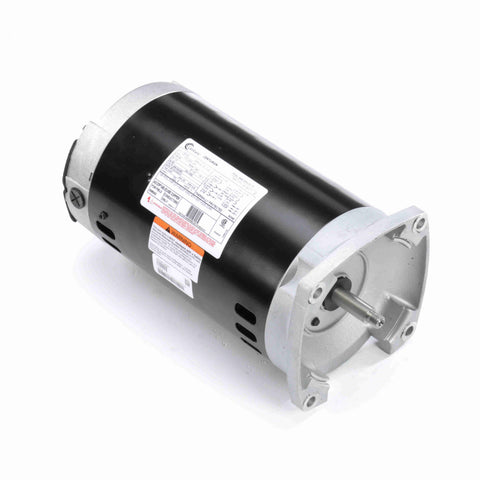

The Century H636 is a commercial-grade replacement pool and spa pump motor designed for compatible pump systems requiring a 1.5 HP, three-phase, single-speed motor. It operates at 3450 RPM and can be configured for 208-230V or 460V, 60 Hz electrical service.
With a 1.47 service factor, the H636 provides approximately 2.21 total horsepower. It features a 56Y frame, square-flange mounting configuration, threaded stainless-steel shaft, ball bearings, continuous-duty construction, and an open drip-proof enclosure. The motor does not include internal overload protection, so properly sized external motor protection is required.
Key Features
- Genuine Century replacement pump motor
- 1.5 HP full-rated motor
- 1.47 service factor
- Approximately 2.21 total horsepower
- Three-phase electrical operation
- 208-230/460V configuration
- Single-speed, 3450 RPM operation
- 56Y frame
- Square-flange mounting
- Threaded stainless-steel shaft
- Ball-bearing construction
- Open drip-proof enclosure
- Continuous-duty rated
- Class B insulation
- Horizontal mounting orientation
- External overload protection required
Benefits
- Restores compatible pump operation without replacing the complete wet end
- Three-phase design supports commercial and high-use pool applications
- Multi-voltage configuration accommodates several electrical systems
- Stainless-steel shaft provides corrosion resistance
- Ball bearings support dependable continuous operation
- Square-flange design fits compatible 56Y pump housings
- Full-rated construction provides approximately 2.21 THP
- Suitable for compatible pool, spa, and water-circulation pumps
Specifications
| Specification | Details |
|---|---|
| Manufacturer | Century |
| Model / SKU | H636 |
| Barcode / UPC | 786674023919 |
| Horsepower | 1.5 HP |
| Service Factor | 1.47 |
| Total Horsepower | Approximately 2.21 THP |
| Phase | Three Phase |
| Voltage | 208-230/460V |
| Amperage | 6.4-5.8/2.9A |
| Frequency | 60 Hz |
| Speed | 3450 RPM, Single Speed |
| Frame | 56Y |
| Mounting | Square Flange / C-Face |
| Shaft | Threaded Stainless Steel |
| Shaft Diameter | 5/8 Inch |
| Enclosure | Open Drip Proof |
| Bearings | Ball Bearings |
| Duty | Continuous |
| Insulation | Class B |
| Thermal Protection | None; External Protection Required |
Specifications are based on current Century H636 motor data.
Compatible Applications
The H636 is designed for pumps requiring a 1.5 HP full-rated, three-phase motor with a 56Y square-flange frame and threaded shaft.
Compatibility cannot be determined by horsepower alone. Before ordering, compare the original motor’s voltage, phase, frame, service factor, total horsepower, amperage, shaft style, flange, RPM, and rotation.
What Is Included
- Century H636 pump motor
- Threaded stainless-steel shaft
- Factory-installed ball bearings
- Motor wiring compartment
Not Included: Pump housing, impeller, diffuser, seal plate, shaft seal, O-rings, motor starter, contactor, overload protection, wiring, or installation labor.
Installation Information
Professional installation by a licensed electrician or qualified pool technician is required. Confirm the available three-phase voltage and configure the motor leads according to the wiring diagram. Install properly sized external overload protection and verify correct rotation before normal operation.
Always install a new mechanical shaft seal selected for the exact pump model. Reusing an old seal can allow water to enter the motor and damage the bearings. Prime the pump completely before startup and never operate it without water.
Confirm Before Ordering
- Confirm model H636
- Verify 1.5 HP and approximately 2.21 THP
- Confirm three-phase power
- Verify 208-230V or 460V operation
- Confirm 56Y square-flange mounting
- Verify threaded shaft configuration
- Confirm 3450 RPM single-speed operation
- Compare all specifications with the original nameplate
Warranty Information
The Century H636 is covered by the manufacturer’s applicable limited warranty. Coverage may require correct motor selection, professional installation, balanced three-phase power, proper external overload protection, correct wiring, and installation of a new shaft seal.
Damage caused by incorrect voltage, phase loss, voltage imbalance, improper overload settings, water intrusion, dry operation, or improper installation may not be covered.
Customer Q&A
Is this a single-phase motor?
No. The H636 requires three-phase electrical power.
Does it include a shaft seal?
No. The seal must be selected according to the pump model.
Can it replace any 1.5 HP motor?
No. Frame, phase, voltage, service factor, total horsepower, shaft, and mounting style must match.
Does it have internal overload protection?
No. Proper external overload protection is required.
