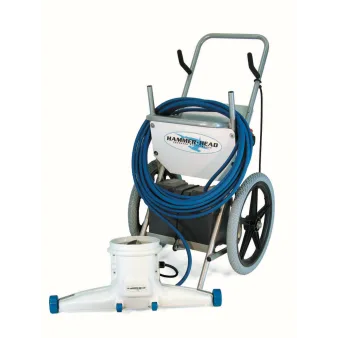

Product Overview
The Hammer-Head Resort-30 Portable Pool Vacuum | RESORT-30 is a professional-grade, battery-powered vacuum system designed for commercial swimming pools, resorts, hotels, aquatic facilities, schools, HOAs, and other high-use pools.
Featuring an extra-wide 30-inch injection-molded vacuum head, 60-foot floating power cord, two-speed Smart Switch, heavy-duty aluminum caddy cart, and included automatic battery charger, the Resort-30 provides fast debris removal without relying on the pool's pump or filtration system.
The Resort-30 is specifically designed for on-site facility use and ships fully assembled.
Important Battery Notice
A 12V deep-cycle marine battery is required and is NOT included.
A standard swimming pool pole is also not included.
Key Features

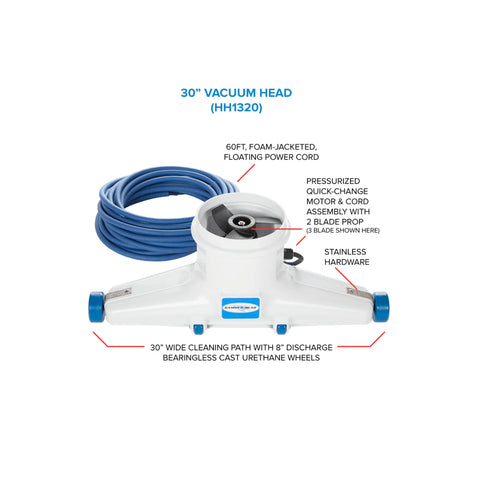

30-Inch Commercial Vacuum Head
The extra-wide 30-inch vacuum head provides increased cleaning coverage, making the Resort-30 especially well suited for large commercial pools and facilities where faster cleaning is important.
60-Foot Floating Power Cord
Provides excellent reach across larger swimming pools while connecting the underwater vacuum motor to the cart-mounted battery system.

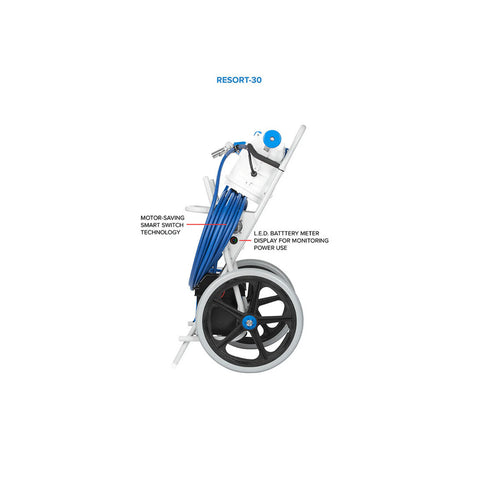

Two-Speed Smart Switch
Current Resort-30 units feature Hammer-Head's HH1062 Smart Switch with:
- Two operating speeds
- Motor-saving overload protection
- Automatic motor shutoff when the motor remains out of the water for more than approximately one minute
Independent 12V Operation
The Resort-30 operates from a 12V deep-cycle marine battery and does not need to connect to the pool's suction plumbing, pump, or filtration system.

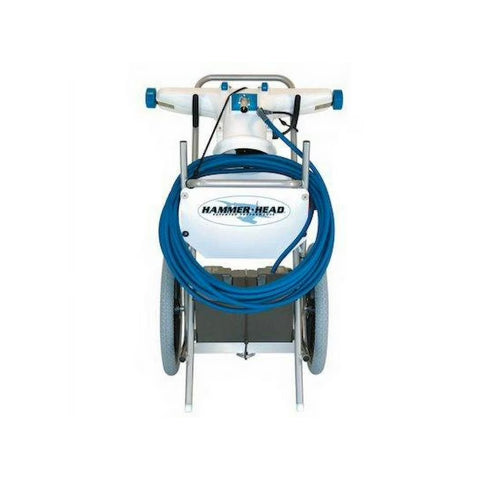

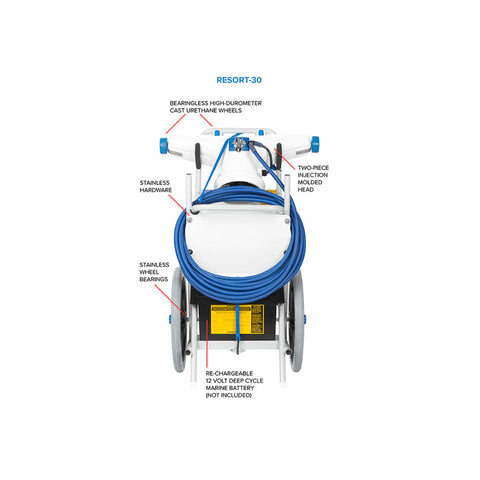

Professional Aluminum Caddy Cart
The welded aluminum cart is designed for easy maneuverability around commercial pool decks and includes large 20-inch wheels with non-marking solid tires.
Two-Position Pole Swivel
The Resort-30 includes an adjustable stainless-steel pole swivel that allows the operator to select between two head angles for improved handling.
Benefits
- Professional commercial pool vacuum
- Extra-wide 30-inch vacuum head
- 60-foot floating power cord
- Battery-powered independent operation
- Does not use the pool filtration system
- Two-speed Smart Switch
- Motor overload protection
- Automatic out-of-water shutoff
- LED battery voltage meter
- Sealed and pressure-tested motor
- Non-marking vacuum head wheels
- Stainless-steel hardware
- Heavy-duty welded aluminum cart
- 20-inch BMX-style cart wheels
- Two debris bags included
- Automatic battery charger included
- Ships fully assembled
- Ideal for large commercial pools
- Vinyl-liner safe
Specifications
| Specification | Details |
|---|---|
| Manufacturer | Hammer-Head |
| Manufacturer Part Number | RESORT-30 |
| Series | Resort |
| Product Type | Portable Pool Vacuum |
| Application | Commercial Pool Cleaning |
| Vacuum Head Width | 30 in |
| Vacuum Head Material | Injection Molded |
| Power Cord Length | 60 ft |
| Cord Type | Floating |
| Power Source | 12V Deep-Cycle Marine Battery |
| Recommended Battery Size | Group 27 Marine Battery |
| Battery Included | No |
| Charger Included | Yes |
| Motor | Sealed & Pressure Tested |
| Propeller | 2-Blade |
| Control | HH1062 Smart Switch |
| Operating Speeds | 2 |
| Battery Meter | LED Voltage Meter |
| Pole Swivel | Stainless Steel, 2-Position Adjustable |
| Head Wheels | Non-Marking Cast Urethane |
| Cart Construction | Welded Aluminum |
| Cart Wheels | 20 in MAG BMX-Style |
| Tires | Non-Marking Solid |
| Hardware | Stainless Steel |

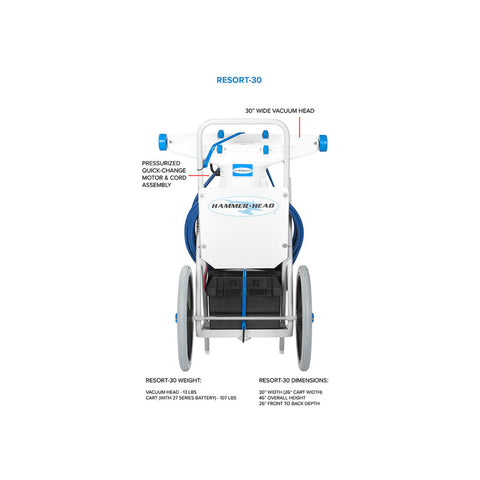

| Cart Width | Approx. 26 in |
| Overall Height | Approx. 46 in |
| Cart Depth | Approx. 27 in |
| Head & Motor Weight | Approx. 13 lb |
| Approx. Operating Weight w/ Group 27 Battery | 132 lb |
| Shipping Weight | Approx. 90 lb |
| Shipping Dimensions | Approx. 30 x 25 x 46 in |
| Pool360 Product Number | HPP-20-103 |
| SKU | RESORT-30 |
| UPC / Barcode | 810089640079 |
What's Included
- Hammer-Head Resort-30 caddy cart
- 30" injection-molded vacuum head
- Sealed underwater motor
- Propeller assembly
- 60' floating power cord
- HH1506 debris bag
- HH1508 super-fine debris bag
- Compatible automatic 12V battery charger
- HH1062 Smart Switch
- Stainless-steel adjustable pole swivel
Not Included:
- 12V deep-cycle marine battery
- Standard swimming pool pole
- Vehicle hitch / trailer mounting system
Ideal Applications
The Hammer-Head Resort-30 is especially well suited for:
- Hotels and resorts
- Commercial swimming pools
- Aquatic centers
- Municipal pools
- Schools and universities
- Swim schools
- Fitness centers
- Apartment communities
- HOA pools
- Country clubs
- Waterparks
- Large residential swimming pools
Resort Series vs. Service Series
The Resort-30 is designed to remain at a single facility and is not compatible with Hammer-Head's truck or trailer hitch mounting system.
For pool-service technicians who need to transport the cleaner from property to property, consider the Hammer-Head Service-30, which uses the same 30-inch head and 60-foot cord but is designed for vehicle-mounted transportation.
Installation & Operation
The Resort-30 does not require installation into the pool's plumbing system.
For operation:
- Install a compatible 12V deep-cycle marine battery in the caddy.
- Connect the Hammer-Head electrical system according to manufacturer instructions.
- Attach a compatible standard pool pole to the vacuum head.
- Place the vacuum head and motor completely into the pool water.
- Activate the Smart Switch and begin vacuuming.
- Remove and clean the debris bag as required.
The motor and propeller must remain underwater during normal operation.
Confirm Before Ordering
Verify that you require:
- Hammer-Head RESORT-30
- 30-inch vacuum head
- 60-foot floating power cord
- On-site commercial caddy configuration
- Included automatic battery charger
A 12V deep-cycle marine battery is required and sold separately.
A standard pool pole is also required and sold separately.
The Resort-30 is not compatible with Hammer-Head's vehicle hitch mounting system.
Warranty Information
The Hammer-Head Resort-30 is covered according to Hammer-Head's applicable manufacturer warranty terms. Warranty eligibility depends on proper operation, maintenance, battery selection, and compliance with current manufacturer instructions.
Customer Q&A
Q: Does the Hammer-Head Resort-30 include a battery?
No. A 12V deep-cycle marine battery is required but is not included. Hammer-Head commonly recommends a Group 27 marine battery.
Q: Is a battery charger included?
Yes. A compatible automatic 12V battery charger is included with Resort units.
Q: How wide is the vacuum head?
The Resort-30 features a 30-inch-wide vacuum head.
Q: How long is the power cord?
It includes a 60-foot floating power cord.
Q: Does the Resort-30 connect to the pool filter?
No. It operates independently using its own battery-powered underwater motor and debris bag.
Q: Are debris bags included?
Yes. Two debris bags are included: HH1506 and HH1508.
Q: Does it include a pool pole?
No. A compatible standard pool pole must be purchased separately.
Q: Does the Resort-30 arrive assembled?
Yes. Hammer-Head states that Resort units ship fully assembled.
Q: Can I mount the Resort-30 on my service truck?
No. The Resort-30 cart is not compatible with Hammer-Head's vehicle mounting system. For mobile pool-route use, choose the Service-30.
Q: What is the difference between the Resort-21 and Resort-30?
The Resort-21 has a 21-inch vacuum head, while the Resort-30 features a larger 30-inch head. Both standard Resort configurations use a 60-foot floating power cord.
