Product Overview

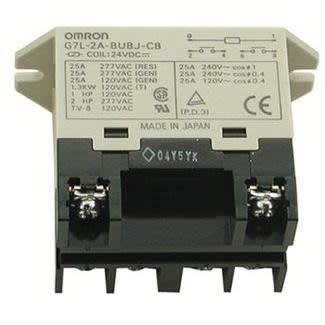

The Hayward GLX-RELAY is a genuine replacement high-voltage relay designed for compatible Hayward Goldline pool and spa automation systems. It allows an automation control board to safely switch connected equipment on and off according to programmed schedules, operating conditions, or manual commands.

This relay is commonly used with Hayward AquaLogic, AquaSolar, and ProLogic control systems. It can control compatible high-voltage pool equipment, including single-speed pumps, booster pumps, lighting circuits, heaters, chlorination equipment, and other approved auxiliary loads.

The GLX-RELAY is rated to control equipment up to 3 HP at 240V or 1.5 HP at 120V. It includes the relay module and attached control wiring harness for connection to the compatible automation circuit board. Because this component handles line voltage, installation should be completed by a licensed electrician or qualified pool automation technician.

Key Features

• Genuine Hayward replacement relay
• Manufacturer part number GLX-RELAY
• Designed for compatible Hayward Goldline automation
• Controls high-voltage pool and spa equipment
• Rated up to 3 HP at 240V
• Rated up to 1.5 HP at 120V
• Double-pole switching configuration
• Low-voltage control coil
• Includes attached wiring harness
• Mounts inside compatible automation enclosures
• Supports scheduled and manual equipment operation
• Suitable for replacement or auxiliary relay applications

Benefits

• Restores control of equipment that no longer activates properly
• Allows automation of pumps, lights, heaters, and auxiliary equipment
• Helps isolate high-voltage equipment from the main control board
• OEM construction provides proper fit within compatible Hayward systems
• Attached control harness simplifies connection to the automation board
• Can be used to replace a worn, damaged, or burned relay
• Supports both 120V and 240V equipment when properly installed

Specifications

Compatible Systems

The GLX-RELAY is commonly used with compatible:

• Hayward AquaLogic automation systems
• Hayward AquaSolar control systems
• Hayward ProLogic automation systems
• Goldline pool and spa control panels
• Compatible Hayward auxiliary relay positions

Compatibility depends on the exact automation model, enclosure, control board, voltage, connected equipment, and available relay position.

What Is Included

• One Hayward GLX-RELAY high-voltage relay
• Attached control wiring harness

Control panel, circuit board, enclosure, breakers, field wiring, connectors, and installation labor are not included.

Installation Information

Disconnect all electrical power before opening the automation enclosure. Confirm that the connected equipment does not exceed the relay’s horsepower or electrical-load rating.

The relay must be mounted securely inside the approved control enclosure and connected according to the automation system’s wiring diagram. Verify proper line voltage, equipment grounding, bonding, breaker protection, conductor sizing, and control-harness placement before restoring power.

Confirm Before Ordering

• Confirm part number GLX-RELAY
• Verify the exact automation system model
• Confirm an available compatible relay position
• Verify whether the connected load is 120V or 240V
• Confirm the equipment does not exceed the relay rating
• Inspect the control board and wiring for additional damage
• Do not select the relay based only on appearance

Warranty Information

This genuine Hayward replacement part is covered by the manufacturer’s applicable limited warranty. Coverage may require proper product selection and professional installation.

Damage caused by incorrect wiring, excessive electrical load, voltage problems, moisture intrusion, burned terminals, loose connections, improper installation, or unauthorized modification may not be covered.

Customer Q&A

What does the GLX-RELAY control?
It switches compatible pumps, lights, heaters, and auxiliary pool equipment.

Does it include the wiring harness?
Yes. The relay includes the attached control harness.

Can it control a 3 HP pump?
It is rated for up to 3 HP at 240V. Confirm the pump’s complete electrical load before installation.

Is professional installation required?
Yes. This component controls high voltage and should be installed by a qualified professional.
