Product Overview
The Raypak 007400F Hot Surface Igniter (HSI) 120V Kit is a genuine OEM replacement ignition component for compatible Raypak Hi Delta, MVB, and XTherm commercial heaters and boilers. The hot surface igniter provides the ignition source required during the heater’s startup sequence and is supplied as a complete service kit with the necessary installation hardware. Raypak identifies 007400F as its 120V HSI replacement kit.
Key Features
Genuine Raypak OEM Kit
Manufactured for direct use with specified Raypak commercial heating equipment.
120V Hot Surface Igniter
Designed as a 120-volt HSI replacement for compatible Raypak ignition systems.
Complete Service Kit

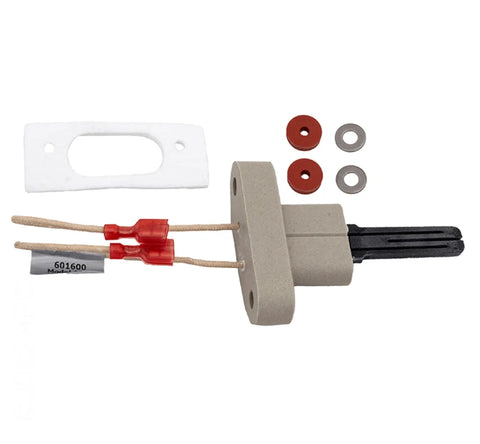

Raypak documentation lists one hot surface igniter, fiber gasket, two hex nuts, two stainless-steel washers, two rubber washers, and two mounting screws in the kit.
Broad Raypak Compatibility
Compatible with specified Hi Delta A, B and C models, MVB models, and XTherm models.
Benefits
- Genuine Raypak factory replacement part
- Restores proper heater ignition operation
- Includes required replacement gasket and mounting hardware
- Designed for accurate OEM fit and connection
- Suitable for commercial pool, spa, boiler, and water-heating applications
- Helps simplify professional heater service and repair
Specifications
| Specification | Details |
|---|---|
| Manufacturer | Raypak |
| Part Number | 007400F |
| Product Type | Hot Surface Igniter Kit |
| Ignition Type | HSI – Hot Surface Ignition |
| Voltage | 120V |
| Kit Quantity | 1 Igniter Kit |
| Hi Delta Compatibility | 302–2342 A, B & C |
| MVB Compatibility | 503A–2003A, 2503–4003 |
| XTherm Compatibility | 1005A–2005A, 2505–4005 |
| OEM / Aftermarket | Genuine Raypak OEM |
| SKU | 007400F |
| Barcode / UPC | 840891006404 |
Raypak’s current service documentation specifically identifies these model ranges for the 007400F HSI kit. The UPC is listed as 840891006404 by an authorized plumbing/HVAC distributor.
Installation Information
Installation should be completed by qualified service personnel experienced with gas-fired heating equipment. Raypak instructs technicians to disconnect electrical power, shut off the gas supply, and allow the appliance to cool before replacing the igniter. Installation procedures differ between Hi Delta and MVB/XTherm equipment.
Confirm Before Ordering
Verify the heater model, model suffix, voltage, and existing igniter configuration before purchase. Some larger Hi Delta models use more than one HSI, so more than one kit may be required depending on the specific appliance. Raypak notes that Hi Delta models 992–2342 use two hot surface igniters.
Warranty Information
Genuine Raypak replacement kits are manufactured to Raypak performance standards. Warranty eligibility and coverage may depend on the equipment, installation, and application.
Customer Q&A
Q: Is Raypak 007400F a genuine OEM part?
Yes. 007400F is the Raypak service kit for the 120V hot surface igniter.
Q: Does the kit include mounting hardware?
Yes. The kit includes the igniter, gasket, nuts, washers, rubber washers, and mounting screws.
Q: Will this fit Raypak Hi Delta heaters?
Yes. Raypak specifies the kit for Hi Delta models 302–2342 in A, B, and C configurations.
Q: Does it also fit MVB and XTherm units?
Yes. It is specified for MVB 503A–2003A and 2503–4003, plus XTherm 1005A–2005A and 2505–4005.
