Product Overview

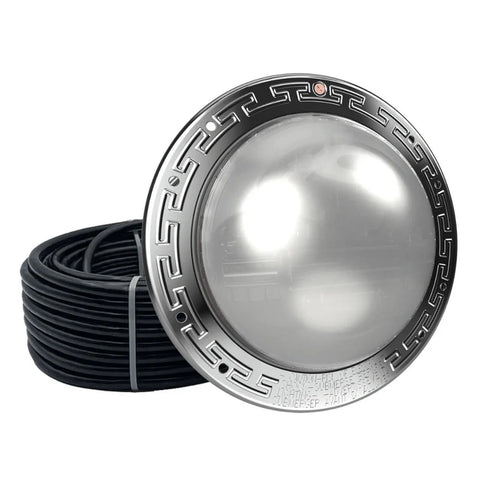

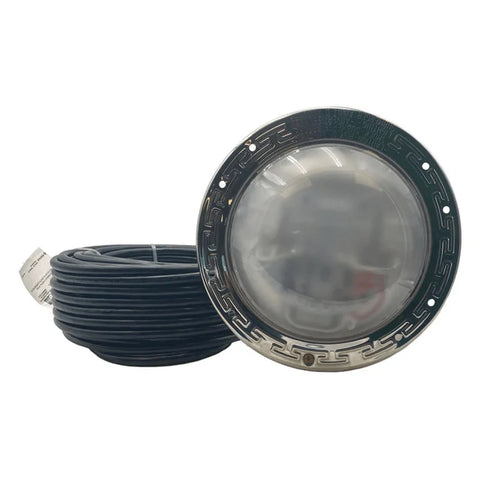

Illuminate your swimming pool with the Pentair IntelliBrite Architectural Series White LED Pool Light. Part number 602141 is a full-size underwater fixture engineered to deliver powerful white illumination while consuming substantially less electricity than a traditional incandescent pool light.
This Architectural Series fixture provides output comparable to a 500-watt incandescent pool light while using only 31 watts. Pentair’s refined optics and high-performance lens distribute light widely and evenly throughout the pool, helping minimize concentrated hot spots, glare, visible stripes, and poorly illuminated areas.
The dedicated white LED light engine makes this fixture an excellent choice for pool owners who prioritize nighttime visibility, safety, and a clean white appearance rather than color-changing effects. It is suitable for residential pools, commercial properties, hospitality facilities, and compatible replacement-light applications.
This model operates on a low-voltage 12V AC lighting circuit and includes a factory-installed 100-foot cord. A properly rated pool and spa safety transformer is required and sold separately.
Key Features
- Full-size white LED swimming pool light
- Pentair IntelliBrite Architectural Series design
- Output comparable to a 500W incandescent light
- Energy-efficient 31W power consumption
- Low-voltage 12V AC operation
- Factory-installed 100-foot cord
- Bright, dedicated white LED light engine
- Refined optics provide broad light distribution
- Helps reduce glare, hot spots, stripes, and dark areas
- Stainless-steel face-ring assembly
- Designed for compatible underwater wet niches
- Operates through a switch, relay, timer, or automation system
- Ideal upgrade from compatible incandescent or older LED fixtures
Specifications
| Specification | Details |
|---|---|
| Manufacturer | Pentair |
| Product Series | IntelliBrite Architectural Series |
| Manufacturer Part Number | 602141 |
| SKU | 602141 |
| UPC / Barcode | 788379907815 |
| Product Type | Niched White LED Pool Light |
| Light Color | White |
| Voltage | 12V AC |
| Power Consumption | 31W |
| Equivalent Classification | 500W Incandescent |
| Cord Length | 100 Feet |
| Face Ring | Stainless Steel |
| Installation Type | Full-Size Underwater Wet Niche |
| Transformer Included | No |
| Wet Niche Included | No |
| Color-Changing Capability | No |
Control and Performance
The 602141 provides dedicated white illumination without color-changing programs or decorative light shows. It may be controlled through a standard pool-light switch, timer, automation relay, or compatible Pentair automation system.
When installing multiple fixtures in the same pool, using matching light models is recommended for the most consistent brightness and appearance. Actual lighting performance can vary based on the pool’s dimensions, depth, shape, finish, installation angle, fixture placement, and surrounding ambient light.
Installation Information
This light requires a compatible full-size underwater wet niche. Before ordering, verify the existing niche manufacturer, model, internal dimensions, mounting screw location, bonding arrangement, and conduit configuration.
A properly sized pool and spa safety transformer is required. Never connect this 12V fixture directly to a 120V circuit.
Installation should be completed by a qualified pool professional or licensed electrician. Proper GFCI protection, grounding, bonding, transformer sizing, junction-box placement, and code-compliant cord routing are required.
Do not cut, shorten, replace, or splice the factory-installed underwater cord. If the cord is damaged, the complete light fixture must be replaced.
Package Contents
- One Pentair IntelliBrite Architectural Series white LED pool light
- Integrated 31W white LED light engine
- Factory-installed 100-foot cord
- Stainless-steel face-ring assembly
Transformer, wet niche, junction box, automation equipment, conduit, relay, and installation materials are not included.
Warranty Information
Manufacturer warranty coverage is subject to Pentair’s current warranty terms, proof of purchase, approved application, and installation requirements. Incorrect voltage, improper transformer selection, incompatible niches, water intrusion, damaged cords, poor bonding, or installation errors may affect coverage.
