Product Overview

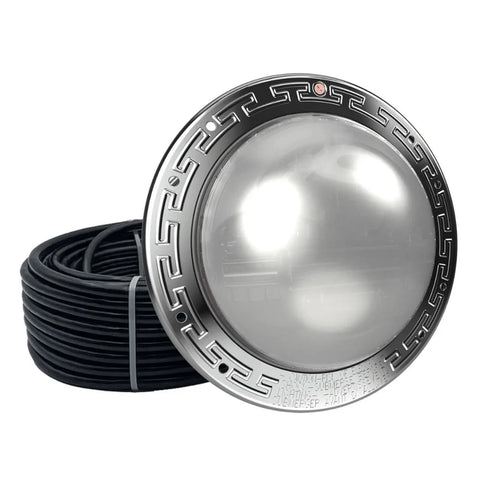

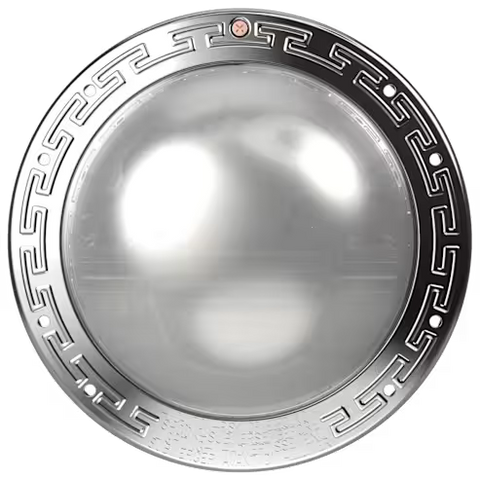

Brighten your swimming pool with the Pentair IntelliBrite Architectural Series White LED Pool Light. Part number 602142 is a full-size underwater fixture designed to deliver powerful, evenly distributed white illumination while using substantially less electricity than a traditional incandescent pool light.

This fixture produces light comparable to a 500-watt incandescent pool light while consuming only 31 watts. Pentair’s Architectural Series uses refined optics and a high-performance lens to spread light broadly throughout the pool. The improved design helps minimize concentrated hot spots, distracting glare, visible stripes, and poorly illuminated areas.

This model operates on a low-voltage 12V AC lighting circuit and includes a factory-installed 150-foot cord. A properly rated pool and spa safety transformer is required and sold separately.

Key Features

• Full-size white LED swimming pool light
• 500W incandescent-equivalent illumination
• Energy-efficient 31W power consumption
• Low-voltage 12V AC operation
• Factory-installed 150-foot cord
• Refined optics for broad light distribution
• Helps reduce glare, stripes, hot spots, and dark areas
• Clean white output improves nighttime visibility
• Stainless-steel face-ring assembly
• Designed for compatible underwater wet niches
• Suitable for residential and commercial inground pools
• Operates through a switch, relay, timer, or automation system
• Ideal upgrade from compatible incandescent pool lights

Specifications

White-Light Performance

The dedicated white LED light engine provides bright, consistent illumination without color-changing programs or programmed light shows. It is ideal for pool owners who prioritize visibility, security, swimming after dark, and a clean white appearance.

The light may be controlled using a properly installed pool-light switch, automation relay, or compatible Pentair automation system. A color-light controller is not required.

Installation Information

The 602142 requires a compatible full-size underwater wet niche. Before ordering, verify the existing niche manufacturer, model, dimensions, mounting screw location, bonding arrangement, and conduit configuration.

This fixture must be connected to a properly sized pool and spa safety transformer. Never connect a 12V light directly to a 120V electrical circuit.

Installation should be completed by a qualified pool professional or licensed electrician. Proper GFCI protection, grounding, bonding, transformer sizing, junction-box placement, and code-compliant cord routing are required.

Do not cut, shorten, replace, or splice the factory-installed underwater cord. Confirm that the 150-foot cord is sufficient for the complete uninterrupted route between the wet niche and the approved termination point.

Package Contents

• One Pentair IntelliBrite Architectural Series white LED pool light
• Integrated 31W white LED light engine
• Factory-installed 150-foot cord
• Stainless-steel face-ring assembly

Transformer, wet niche, junction box, automation equipment, conduit, relay, and installation materials are not included.

Warranty Information

Pentair manufacturer warranty coverage is subject to its current warranty terms, proof of purchase, approved application, purchase channel, and installation requirements. Damage caused by incorrect voltage, improper transformer selection, incompatible niches, water intrusion, poor bonding, cord modification, or installation errors may not be covered.

Confirm Before Ordering

Confirm the 12V voltage, white output, 500W-equivalent rating, 150-foot cord length, transformer capacity, existing wet-niche model, and face-ring finish before purchasing.
