Product Overview

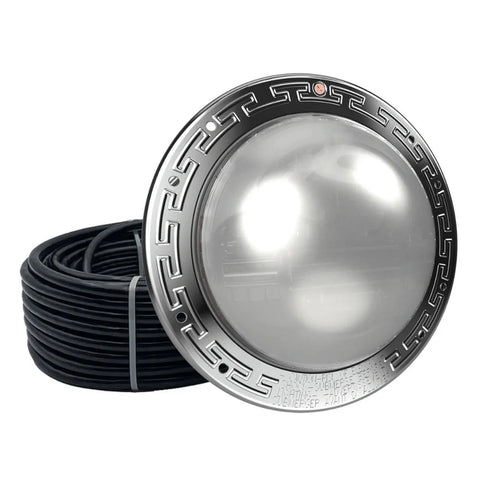

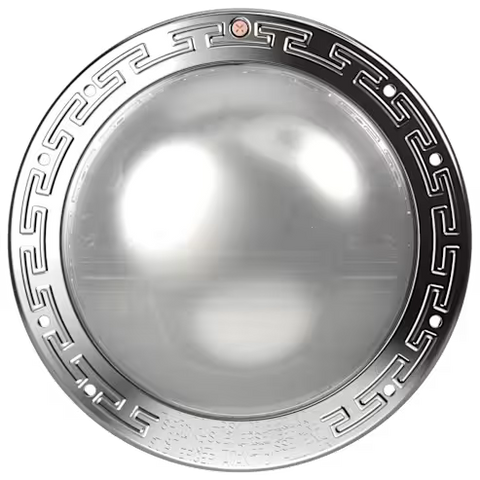

Upgrade your pool’s nighttime visibility with the Pentair IntelliBrite Architectural Series White LED Pool Light. Part number 602145 is a full-size underwater fixture engineered to provide bright, evenly distributed white illumination while consuming substantially less electricity than a traditional incandescent pool light.
This Architectural Series light uses refined optics and a high-performance lens to project light broadly across the pool. The improved optical design helps reduce concentrated hot spots, visible stripes, excessive glare, and dark areas. The result is a cleaner and more consistent appearance throughout the swimming area.
The fixture delivers illumination comparable to a 300-watt incandescent pool light while consuming only 26 watts. This energy-efficient design makes it an excellent option for replacing compatible older incandescent or first-generation LED fixtures.
This model operates on a low-voltage 12V AC lighting circuit and includes a factory-installed 100-foot cord. A properly rated pool and spa safety transformer is required and sold separately.
Key Features
- Full-size white LED swimming pool light
- Pentair IntelliBrite Architectural Series design
- Light output comparable to a 300W incandescent fixture
- Energy-efficient 26W power consumption
- Low-voltage 12V AC operation
- Factory-installed 100-foot cord
- Refined optics for broad light distribution
- Helps reduce glare, hot spots, stripes, and dark areas
- Bright white illumination improves nighttime visibility
- Stainless-steel face-ring assembly
- Designed for compatible underwater wet niches
- Suitable for residential and commercial inground pools
- Compatible with switches, relays, and select automation systems
Specifications
| Specification | Details |
|---|---|
| Manufacturer | Pentair |
| Product Series | IntelliBrite Architectural Series |
| Manufacturer Part Number | 602145 |
| SKU | 602145 |
| UPC / Barcode | Confirm from Product Packaging |
| Product Type | Niched White LED Pool Light |
| Light Color | White |
| Voltage | 12V AC |
| Power Consumption | 26W |
| Equivalent Output | 300W Incandescent |
| Cord Length | 100 Feet |
| Face Ring | Stainless Steel |
| Installation Type | Full-Size Underwater Wet Niche |
| Transformer Included | No |
| Niche Included | No |
| Controller Included | No |
White-Light Performance
The dedicated white LED light engine produces consistent illumination without color-changing programs or programmed light shows. It is ideal for pool owners who prioritize visibility, security, and a clean white appearance over decorative color effects.
The light may be controlled through a properly installed pool-light switch, automation relay, timer, or compatible Pentair automation system. A specialized color-light controller is not required.
Installation Information
The 602145 requires a compatible full-size underwater wet niche. Confirm the existing niche manufacturer, model, dimensions, mounting screw location, bonding arrangement, and conduit configuration before ordering.
Because this fixture operates at 12V AC, it must be connected to a properly sized pool and spa safety transformer. Never connect the fixture directly to a 120V electrical circuit.
Installation should be completed by a qualified pool professional or licensed electrician. Proper GFCI protection, grounding, bonding, junction-box placement, transformer sizing, and code-compliant cord routing are required.
Do not cut or splice the factory-installed underwater cord. Confirm that the 100-foot cord is sufficient for the complete uninterrupted route from the niche to the approved termination point.
Package Contents
- One Pentair IntelliBrite Architectural Series white LED pool light
- Integrated 26W white LED light engine
- Factory-installed 100-foot cord
- Stainless-steel face-ring assembly
The transformer, wet niche, junction box, controller, relay, conduit, and installation materials are not included.
Warranty Information
Pentair manufacturer warranty coverage is subject to its current warranty terms, proof of purchase, approved application, and installation requirements. Damage caused by incorrect voltage, improper transformer selection, incompatible niches, water intrusion, cord modification, poor bonding, or installation errors may not be covered.
Confirm Before Ordering
Verify the required 12V voltage, white-light output, 100-foot cord length, transformer capacity, existing wet-niche model, and face-ring finish before purchasing.
