Product Overview

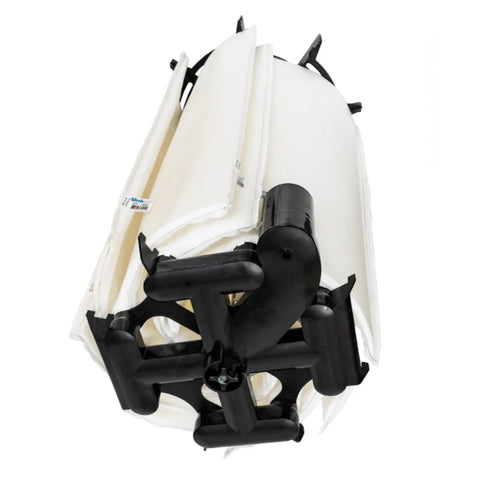

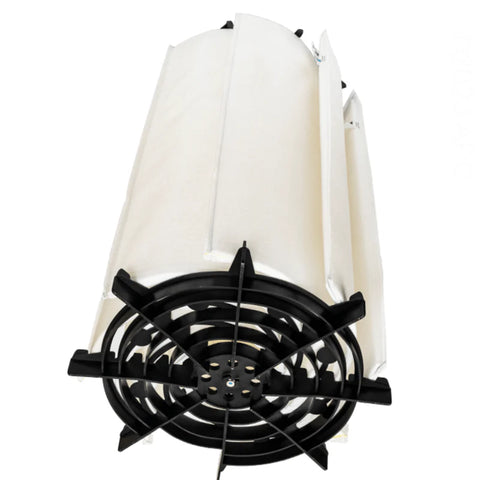

The Jandy R0501400 Complete Grid Assembly is a genuine Jandy / Zodiac replacement grid cluster designed for compatible Jandy DEV and DEL Series 60 sq. ft. D.E. pool filters. This complete internal grid assembly helps restore proper filtration performance by holding and distributing diatomaceous earth across the filter grids, allowing the filter to capture fine debris and keep pool water clean and clear.
This assembly is commonly used when the existing filter grids, manifold, spacer, or internal grid cluster components are worn, cracked, torn, damaged, or no longer filtering properly. It provides a complete replacement solution for rebuilding the internal grid assembly on compatible 60 sq. ft. Jandy D.E. filters.
Ideal For
This complete grid assembly is ideal for pool service technicians, maintenance professionals, and pool owners repairing compatible Jandy DEV60 or DEL60 D.E. filters. It is especially useful during filter rebuilds, seasonal maintenance, or when damaged filter grids are causing poor filtration, cloudy water, D.E. blowback, or reduced system performance.
Key Features
Genuine Jandy / Zodiac Replacement Assembly
Designed as an OEM replacement assembly for compatible Jandy DEV and DEL 60 sq. ft. D.E. filters. Using the correct manufacturer replacement assembly helps ensure proper fit, filtration performance, and internal filter alignment.
Complete Grid Cluster Assembly

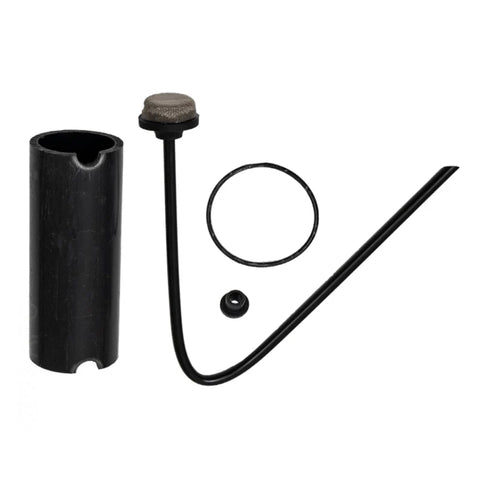

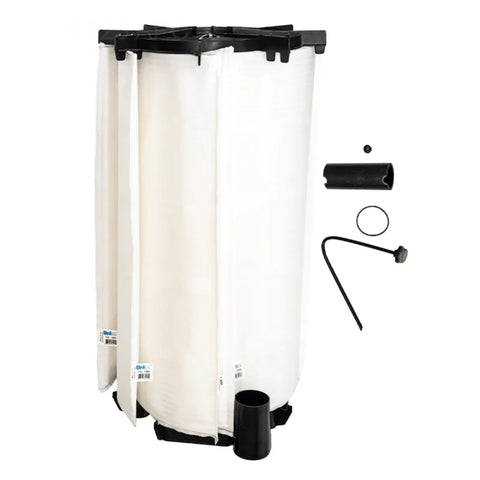

Includes the main internal grid components needed for a full grid assembly replacement. Supplier listings commonly describe this assembly as including the DE grids, top spacer, spacer collar, breather tube assembly, manifold assembly, tie rod, lock nuts, grid support, full-size grid, short-span grid, and tie rod knob.
Fits DEV60 and DEL60 Filters
Made for Jandy DEV60 and DEL60 60 sq. ft. D.E. filter models. Always confirm the filter model and square footage before ordering, as similar Jandy D.E. filters may use different grid assemblies.
Restores Filtration Performance
Replacing a worn or damaged grid assembly can help improve water clarity and reduce filtration problems. A properly functioning grid assembly helps trap fine particles and supports efficient D.E. filter operation.
Practical Filter Rebuild Solution
This complete assembly can save time compared with replacing individual grids and internal components separately. It is a convenient option when multiple internal filter parts are worn or damaged.
Benefits
The Jandy R0501400 Complete Grid Assembly helps restore the internal filtration structure of compatible Jandy DEV60 and DEL60 D.E. filters. Replacing the complete assembly can help correct issues such as torn grids, damaged manifolds, D.E. returning to the pool, cloudy water, poor filtration, and reduced filter efficiency.
This part is a targeted repair solution that can extend the service life of the existing filter tank when the tank body, clamp, and external components are still in good condition. Professional installation is recommended to ensure proper fit, grid alignment, tank sealing, and safe filter reassembly.
Specifications
| Specification | Details |
|---|---|
| Product Type | Complete D.E. Filter Grid Assembly / Grid Cluster |
| Brand | Jandy / Zodiac |
| Manufacturer | Zodiac Pool Systems / Fluidra |
| Model / Part Number | R0501400 |
| SKU | R0501400 |
| UPC / Barcode | 052337039925 |
| Filter Type | D.E. / Diatomaceous Earth |
| Filter Size Compatibility | 60 sq. ft. |
| Compatible Filter Series | Jandy DEV Series and Jandy DEL Series |
| Common Compatible Models | DEV60 and DEL60 |
| Included Components | Complete grid assembly with grid elements, manifold, spacers, breather tube assembly, tie rod, grid support, knob, and related hardware |
| Application | Internal D.E. filter grid replacement |
| Installation Type | Internal filter replacement assembly |
| Product Condition | New Replacement Part |
Customer-Facing Q&A
Q: What filters does the Jandy R0501400 fit?
A: The R0501400 is commonly listed for Jandy DEV60 and DEL60 60 sq. ft. D.E. filters.
Q: Is this the complete grid assembly or just one grid?
A: This is the complete grid assembly / grid cluster, not a single replacement grid.
Q: What does this assembly include?
A: Supplier listings commonly describe it as including the DE grid elements, top spacer, spacer collar, breather tube assembly, manifold assembly, tie rod, lock nuts, grid support, short grid, full-size grid, and tie rod knob.
Q: When should the grid assembly be replaced?
A: It may need replacement if the grids are torn, the manifold is cracked, D.E. is returning to the pool, filtration is poor, or the internal assembly is damaged or worn.
Q: Is this a genuine Jandy replacement part?
A: Yes. R0501400 is listed as a Jandy / Zodiac complete grid assembly replacement for compatible DEV and DEL Series filters.
Q: Will this fit a 48 sq. ft. or 36 sq. ft. Jandy D.E. filter?
A: No. This listing is for the 60 sq. ft. DEV / DEL filter assembly. Always confirm the filter model and square footage before ordering.
Q: Should this be installed by a professional?
A: Professional installation is recommended to ensure the filter is opened safely, the grid assembly is seated correctly, and the tank is properly reassembled and pressure-tested.
