Product Overview

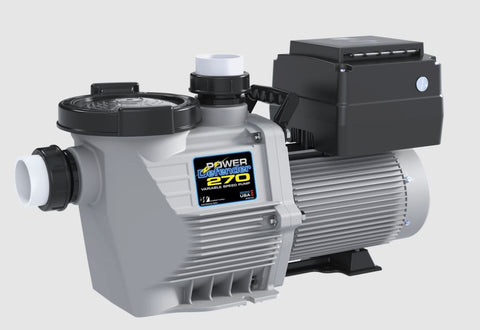

The Waterway Power Defender PD-270 Variable Speed Pool Pump is a high-performance 2.7 Total HP, 230V in-ground pool pump designed to deliver powerful circulation, quiet operation, and improved energy efficiency.

The Power Defender 270 allows pool owners and professionals to program pump speeds based on filtration, heating, cleaning, spa operation, and other circulation demands. Its variable-speed technology can significantly reduce energy consumption compared with traditional single-speed pumps by allowing the system to operate at lower speeds during normal filtration.

Designed for replacement and new installations, the PD-270 is engineered to align with common Hayward Super Pump and Pentair IntelliFlo plumbing configurations and includes two self-aligning pump unions.

Key Features

2.7 Total HP Variable-Speed Performance

Provides up to 2.7 Total HP with programmable variable-speed operation for precise control over pool circulation.

230V Operation

Designed for 230V electrical service for reliable high-performance in-ground pool operation.

High Performance & Ultra-Quiet Operation

Waterway's variable-speed motor technology is designed to deliver powerful circulation while maintaining quiet operation and improved energy efficiency.

DOE & CEC Compliant

Meets current U.S. Department of Energy and California Energy Commission pool-pump efficiency requirements.

Built-In Freeze Protection

Automatic freeze protection can activate the pump during low-temperature conditions to help protect pool plumbing and equipment.

Programmable Controls

Features user-friendly programming with an easy-to-read control display for managing pump schedules and speeds.

Auxiliary Equipment Control

The PD-270 can be configured to control an additional load such as a:

• Booster pump
• Salt chlorine generator

Optional Remote Control Mounting

The pump controls can be mounted off-board for greater installation flexibility.

Silicon Carbide Viton Shaft Seal

Heavy-duty silicon carbide and Viton shaft-seal construction provides improved wear and chemical resistance.

Benefits

• 2.7 Total HP
• Variable-speed operation
• 230V electrical configuration
• Energy-efficient circulation
• High-performance hydraulic design
• Ultra-quiet operation
• Built-in freeze protection
• User-friendly programming
• Auxiliary equipment control capability
• Optional off-board control mounting
• Pressure rated up to 50 PSI
• DOE compliant
• CEC compliant
• Silicon carbide Viton shaft seal
• Includes two self-aligning unions
• Includes IntelliFlo-compatible base
• Designed for in-ground swimming pools
• Designed, engineered, and manufactured in the USA

Specifications

What's Included

• Waterway Power Defender PD-270 Variable-Speed Pump
• Integrated 2.7 HP variable-speed motor
• Digital control interface
• Two self-aligning pump unions
• IntelliFlo-compatible installation base
• Integrated freeze-protection functionality
• Installation documentation

Retrofit & Replacement Compatibility

Waterway designed the current Power Defender 270 for easier replacement applications.

The pump is designed to line up with common:

• Hayward Super Pump plumbing
• Pentair IntelliFlo plumbing

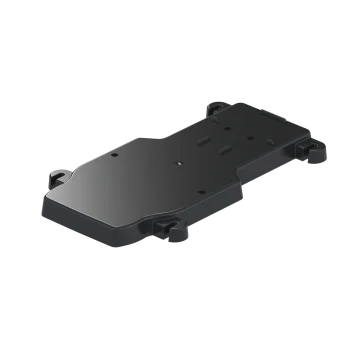

An IntelliFlo-compatible base is included.

Existing equipment-pad dimensions and plumbing locations should always be verified before replacing another manufacturer's pump.

Installation Information

The PD-270 requires 230V electrical service and should be installed by a qualified pool professional or licensed electrician according to Waterway instructions and applicable electrical codes.

Correct plumbing sizing, electrical supply, bonding, priming, and programming are critical for proper pump performance.

The pump should never be operated dry.

Confirm Before Ordering

Verify the following before purchase:

• Waterway part number PD-270
• 2.7 Total HP
• 230V electrical supply
• Variable-speed pump required
• Existing plumbing size and orientation
• Available equipment-pad dimensions

Important: Do not confuse the PD-270 with the PD-270A.

The PD-270A is Waterway's newer SVL-style 2.7 HP configuration with different hydraulic characteristics and plumbing. Verify the exact model required before ordering.

Warranty Information

The Waterway Power Defender PD-270 carries a 2-year limited manufacturer warranty, subject to Waterway's current warranty terms, proper installation, application, and operating conditions.

Customer Q&A

Q: How many horsepower is the Waterway PD-270?

The PD-270 is rated at 2.7 Total HP.

Q: Is the PD-270 a variable-speed pump?

Yes. It is a fully programmable variable-speed in-ground pool pump.

Q: What voltage does the PD-270 require?

The PD-270 is designed for 230V electrical service.

Q: Is the Waterway PD-270 California compliant?

Yes. Waterway lists the PD-270 as CEC and DOE compliant.

Q: Does it have freeze protection?

Yes. Built-in automatic freeze protection is included.

Q: Can it control a salt system or booster pump?

Yes. Waterway provides the ability to install and program an additional electrical load, such as a booster pump or chlorine generator.

Q: Are pump unions included?

Yes. The PD-270 comes with two self-aligning pump unions.

Q: Will it line up with a Pentair IntelliFlo?

Waterway designed the current PD-270 to align with IntelliFlo plumbing and includes an IntelliFlo-compatible base.

Q: Will it replace a Hayward Super Pump?

Waterway states that the current Power Defender 270 is designed to line up with both Super Pump and IntelliFlo plumbing. Existing measurements should still be confirmed before installation.

Q: What is the difference between PD-270 and PD-270A?

Both are 2.7 HP Power Defender variable-speed pumps, but the PD-270A uses Waterway's SVL hydraulic platform and has different performance and plumbing characteristics. They should not automatically be treated as interchangeable.
