Product Overview

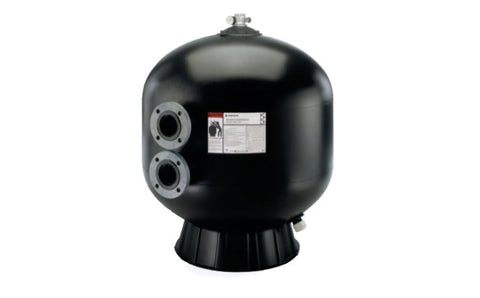

The Pentair Triton C-3 TR100C-3 High Capacity Sand Filter | 140310 is a commercial-grade 30-inch fiberglass side-mount sand filter designed for high-flow swimming pool filtration applications. With 4.91 sq. ft. of effective filtration area and flow rates up to 98 GPM, the TR100C-3 is built for commercial pools and demanding aquatic facilities requiring dependable filtration and durable construction.

The Triton C-3 utilizes Pentair's fiberglass-reinforced tank construction with multiple internal diverters to improve water distribution through the filter media. Unlike the standard Triton C, the C-3 configuration features 3-inch flange connections for commercial plumbing applications.

Important: This filter is supplied without a multiport valve. The required valve or commercial valve arrangement must be purchased separately.

Key Features

Commercial High-Capacity Filtration

Provides 4.91 sq. ft. of effective filtration area with certified operation from 5–20 GPM per square foot.

Up to 98 GPM Flow

At the maximum certified filtration rate of 20 GPM per sq. ft., the TR100C-3 supports approximately 98 GPM.

30-Inch Fiberglass Tank

Heavy-duty fiberglass-reinforced construction provides excellent strength and resistance to harsh outdoor pool-equipment environments.

Multiple Internal Diverters

The Triton C series uses multiple diverters to promote even water distribution through the sand bed and support higher commercial filtration rates.

3-Inch Flange Connections

The TR100C-3 features standard 3-inch flange connections, distinguishing it from standard Triton C configurations.

50 PSI Maximum Operating Pressure

Designed for commercial circulation systems with a maximum operating pressure of 50 PSI.

Large 8-Inch Service Opening

Provides convenient access to the sand bed for inspection, servicing, and media replacement.

Benefits

• Commercial-grade sand filtration
• 30-inch tank diameter
• 4.91 sq. ft. effective filtration area
• Up to 98 GPM flow rate
• 3-inch flange connections
• Multiple internal water diverters
• Fiberglass-reinforced tank
• UV-resistant exterior finish
• 50 PSI maximum operating pressure
• Full 2-inch drain
• Large 8-inch service opening
• NSF/ANSI Standard 50 certified
• Black commercial finish
• Designed for high-demand pool applications

Specifications

Filter Media Requirements

Pentair specifies the following media for the TR100C-3:

• 150 lb Pea Gravel
• 450 lb Filter Sand
• 600 lb Total Media

Proper filter-grade media must be used according to Pentair's installation instructions.

Valve Sold Separately

The Pentair 140310 TR100C-3 does not include a multiport valve.

The C-3 version uses 3-inch flange connections, so the valve and plumbing arrangement must be selected according to the commercial installation requirements.

Do not assume a residential Triton side-mount valve will connect directly without verifying the required flange and plumbing configuration.

Installation Information

The TR100C-3 should be installed on a solid, level equipment pad with adequate clearance for servicing and sand replacement.

Installation should account for:

• 3-inch flange plumbing connections
• Required flow rate
• Pump performance
• Backwash flow requirements
• Drain capacity
• Available vertical clearance
• Required commercial turnover rate

Commercial installations must also comply with applicable state and local health department requirements.

Confirm Before Ordering

Before purchasing, verify:

• Pentair part number 140310
• TR100C-3 model required
• 30-inch tank diameter
• 3-inch flange connections
• 98 GPM maximum design flow
• 600 lb total filter-media requirement
• Required commercial turnover rate
• Appropriate valve arrangement
• Available equipment-pad clearance

Do not confuse this model with the standard TR100, TR100C, or TR140C-3.

Similar Models

• 140310 – TR100C-3: 30", 4.91 sq. ft., 98 GPM, 3" flange, black
• 140342 – TR140C-3: 36", 7.06 sq. ft., 141 GPM, 3" flange, black

Warranty Information

Pool360 currently lists the Pentair TR100C-3 with a 2-year warranty, subject to Pentair's current commercial equipment warranty terms, proper installation, application, maintenance, and operating conditions.

Customer Q&A

Q: What is the flow rate of the Pentair TR100C-3?

Pentair lists a maximum flow rate of 98 GPM at 20 GPM per sq. ft. A typical commercial filtration rate of 15 GPM per sq. ft. would be approximately 74 GPM.

Q: How much sand does the TR100C-3 require?

Pentair specifies 450 lb of filter sand plus 150 lb of pea gravel, for 600 lb of total filter media.

Q: Does Pentair 140310 include a multiport valve?

No. The valve is sold separately.

Q: What size plumbing connections does it have?

The Triton C-3 version features 3-inch flange connections.

Q: What is the tank diameter?

The TR100C-3 uses a 30-inch tank.

Q: Is this a residential or commercial filter?

Pentair classifies the Triton C/C-3 series as a commercial high-capacity sand filter.

Q: What is the maximum operating pressure?

The maximum operating pressure is 50 PSI.

Q: Is this filter NSF certified?

Yes. Pentair lists the Triton C-3 as NSF/ANSI Standard 50 certified.
