Product Overview

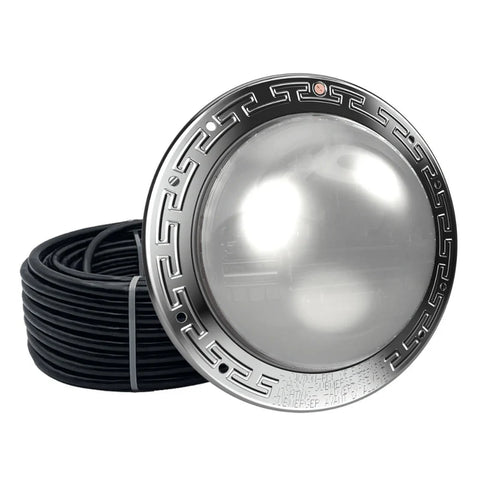

Illuminate your swimming pool with warm, comfortable white light using the Pentair IntelliBrite Architectural Series Pool Light. Part number 602190 is a full-size, niched LED fixture designed to provide broad and evenly distributed underwater illumination while using significantly less energy than traditional incandescent pool lights.

The Architectural Series features Pentair’s refined optical design, which spreads light widely throughout the pool. This helps reduce distracting glare, concentrated hot spots, visible stripes, and dark areas. The warm-white output creates a softer and more inviting appearance than cool-white lighting, making it ideal for relaxing evenings, residential entertaining, hospitality settings, and pools with natural or earth-toned finishes.

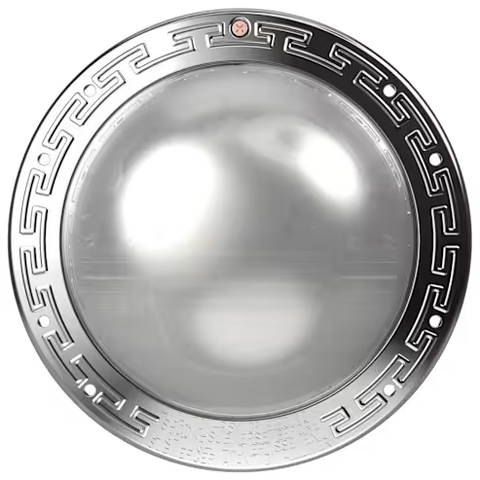

This model operates on 120-volt power, consumes approximately 31 watts, and includes a factory-installed 50-foot cord. A durable stainless-steel face ring provides a clean, professional appearance and complements a wide range of pool surfaces.

Key Features

• Full-size warm-white LED pool light
• Pentair IntelliBrite Architectural Series design
• Refined optics provide broad, even illumination
• Helps minimize glare, hot spots, stripes, and dark areas
• Warm-white color creates a relaxing nighttime appearance
• Energy-efficient 31-watt power consumption
• 120-volt electrical configuration
• Factory-installed 50-foot cord
• Durable stainless-steel face ring
• Suitable for compatible inground pool niches
• Excellent replacement for select older incandescent fixtures
• Compatible with standard on-and-off light controls
• No color controller or color-programming system required

Specifications

Warm-White Illumination

Warm-white lighting produces a softer tone than traditional cool-white LEDs. It can enhance tan, beige, brown, stone, and natural pool finishes while creating a comfortable atmosphere around the pool.

Because this is a dedicated white-light fixture, it does not provide color-changing programs or programmed light shows. The light is controlled through a properly installed pool-light switch, relay, or compatible Pentair automation system.

Installation Information

The 602190 requires a compatible Pentair full-size underwater fixture housing or wet niche. Verify the existing niche manufacturer, model, dimensions, mounting screw position, bonding arrangement, and conduit configuration before ordering.

This fixture operates directly from an approved 120V pool-light circuit and does not use a low-voltage transformer. Installation must include proper GFCI protection, grounding, bonding, junction-box placement, and compliance with all applicable electrical codes.

Installation should be completed by a qualified pool professional or licensed electrician. Never connect or service the light while the circuit is energized. Do not cut or splice the factory-installed underwater cord.

Package Contents

• One Pentair Architectural Series warm-white LED pool light
• Factory-installed 50-foot cord
• Stainless-steel face-ring assembly
• Integrated 31-watt LED light engine

The niche, junction box, automation system, relay, conduit, and installation materials are not included.

Warranty Information

Pentair manufacturer warranty coverage is subject to current warranty terms, proof of purchase, approved application, and installation requirements. Damage caused by incorrect voltage, incompatible niches, improper bonding, cord modification, water intrusion, or installation errors may not be covered.

Confirm Before Ordering

Confirm the required 120V voltage, 50-foot cord length, warm-white output, existing niche model, and stainless-steel face-ring preference before purchasing.
