Product Overview

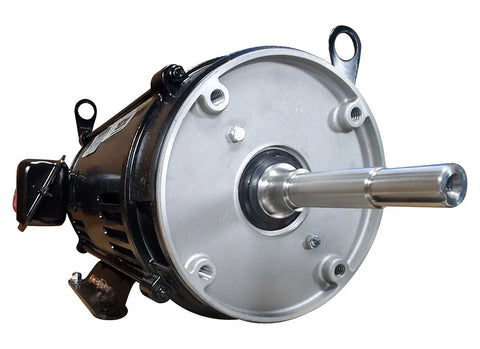

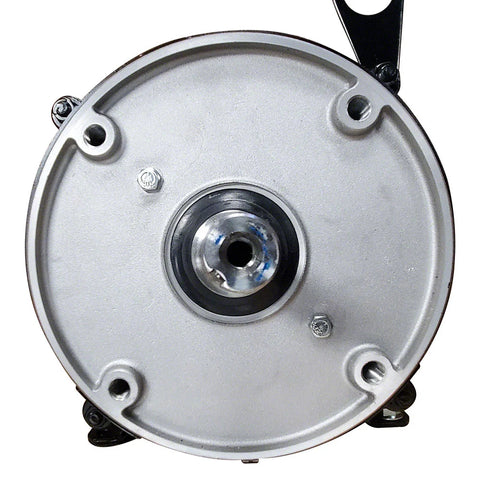

The Pentair 357068S EQ Series Replacement Motor is a genuine OEM 5 HP, three-phase motor designed for the Pentair EQK500 commercial plastic pool pump.

Built for demanding commercial aquatic applications, this motor operates on 208-230/460V, 60 Hz electrical service and uses a 182JMZ frame with a keyed shaft. Its Open Drip Proof (ODP) construction, Class F insulation, and permanently lubricated ball bearings are designed for dependable operation in properly installed commercial pump environments.

Part 357068S provides an OEM replacement option when the existing motor has failed while the EQ Series pump wet end remains serviceable.

Key Features

5 HP Commercial-Duty Motor
Provides 5 horsepower for compatible Pentair EQ Series high-flow commercial pump applications.

Three-Phase Operation
Designed for facilities with compatible three-phase electrical service.

208-230/460V Configuration
Supports 208V, 230V, and 460V three-phase installations when wired according to the motor nameplate.

182JMZ Motor Frame
Uses the specialized JMZ mounting configuration required for proper fit with the compatible EQK500 pump.

Open Drip Proof Construction
ODP motor design provides ventilation and cooling for suitable equipment-room and protected pump installations.

Keyed Shaft
Features a keyed shaft design for secure connection to the compatible EQ Series pump assembly.

Benefits

• Genuine Pentair OEM replacement motor
• 5 HP commercial pump performance
• Three-phase electrical operation
• 208-230/460V flexibility
• 60 Hz configuration
• 182JMZ frame for proper OEM fit
• Helps restore an existing EQK500 without replacing the complete pump
• Designed for demanding commercial pool circulation systems

Specifications

Installation Information

Installation requires compatible three-phase electrical service and proper motor wiring for the available supply voltage. Wiring must match the motor nameplate and comply with applicable electrical codes.

Disconnect and lock out electrical power before servicing the pump. During motor replacement, inspect the mechanical shaft seal, seal plate, impeller, diffuser, O-rings, and motor-support components for wear or damage.

Replacing the mechanical shaft seal during a motor change is recommended when necessary to help prevent water leakage into the replacement motor.

Installation should be performed by a qualified commercial pool professional or licensed electrician.

Confirm Before Ordering

• Confirm the required Pentair part number is 357068S.
• Verify the pump model is EQK500.
• Confirm the existing motor is 5 HP and three phase.
• Verify 208-230/460V, 60 Hz electrical compatibility.
• Confirm the required motor frame is 182JMZ.
• Compare the existing motor nameplate before ordering.
• This product is the replacement motor only, not a complete EQ Series pump.

Warranty Information

Warranty coverage is subject to Pentair's current replacement-parts warranty terms, proper installation, intended commercial use, and proof of purchase.

Customer Q&A

What Pentair pump does 357068S fit?
Pentair lists 357068S as the 5 HP three-phase replacement motor for the EQK500 commercial pump.

What voltage does this motor use?
It is designed for 208-230/460V three-phase, 60 Hz electrical service.

What motor frame does it use?
The motor uses a 182JMZ frame.

Is this a single-speed motor?
Yes. It is a 1-speed replacement motor.

Is the motor Open Drip Proof?
Yes. This motor uses an ODP, or Open Drip Proof, enclosure configuration.

Does this include the complete EQK500 pump?
No. This listing is for the replacement motor only.
