Product Overview

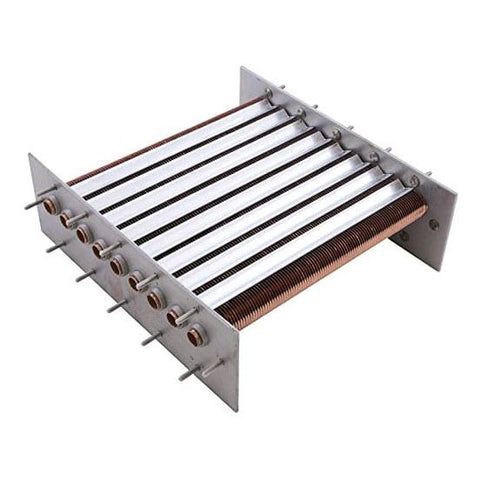

Restore dependable heat transfer and water circulation in a compatible Raypak pool or spa heater with the Raypak 010059F Copper Tube Bundle Kit. This genuine factory-authorized replacement assembly is designed for select residential Raypak 206A and 207A heaters equipped with polymer water headers.
The tube bundle serves as the heater’s primary heat exchanger. Pool water circulates through the copper tubes while hot combustion gases pass around the exterior surfaces. Heat transfers through the copper and into the water before the circulation system returns the heated water to the pool or spa.
Scale buildup, freezing, corrosion, restricted circulation, improper chemistry, or overheating can damage the original heat exchanger. Common signs of a failing tube bundle include water leaking inside the heater, reduced heating performance, mineral deposits, unusual boiling sounds, or recurring high-limit faults.
Replacing the damaged bundle can restore heater performance without replacing the complete heater. Professional diagnosis is recommended because damaged headers, worn O-rings, bypass problems, and plumbing leaks can produce similar symptoms.
Key Features
- Genuine Raypak factory-authorized replacement kit
- Designed for compatible 206A and 207A heaters
- Copper construction supports efficient heat transfer
- Intended for residential polymer-header configurations
- Helps repair leaking, scaled, or damaged heat exchangers
- Includes required baffle components
- Includes flange-nut installation hardware
- Includes two replacement O-ring gaskets
- Direct replacement for Raypak part 010059F
- Professional heater installation is recommended
- Polymer headers and complete heater are not included
Specifications
| Specification | Details |
|---|---|
| Manufacturer | Raypak |
| Manufacturer Part Number | 010059F |
| SKU | 010059F |
| UPC / Barcode | Confirm From Product Packaging |
| Product Type | Replacement Tube Bundle Kit |
| Heat Exchanger Material | Copper |
| Compatible Heater Models | Select Raypak 206A and 207A |
| Header Configuration | Polymer / Plastic |
| Heater Application | Residential Pool and Spa |
| Baffle Components Included | Yes |
| Flange-Nut Hardware Included | Yes |
| O-Ring Gaskets Included | 2 |
| Complete Headers Included | No |
| Installation | Qualified Professional Recommended |
Compatibility
The 010059F is intended for compatible Raypak 206A Digital atmospheric heaters and 207A Low NOx heaters using polymer water headers. Compatibility depends on the complete heater model, serial number, manufacturing date, header material, and heat-exchanger configuration.
Do not assume this bundle fits every Raypak 206 or 207 heater. Commercial ASME heaters with metal headers use a different tube bundle. The cupro-nickel upgrade commonly referenced for compatible residential polymer-header installations is Raypak 010364F.
Installation Information
Turn off electrical power and gas, stop the circulation pump, allow the heater to cool, and relieve all system pressure before service. Drain the heat exchanger before removing the headers or original tube bundle.
Installation requires substantial heater disassembly and should be completed by a qualified pool-heater technician. The technician should inspect the polymer headers, internal bypass, refractory panels, burner tray, plumbing, and combustion area while the heater is open.
Install the supplied O-rings and hardware according to Raypak procedures. After reassembly, circulate water and carefully inspect the heater for leaks before operating the burner. Verify proper water flow, gas pressure, ignition, combustion, and exhaust operation before returning the heater to service.
Package Contents
- One Raypak copper tube bundle
- Required heat-exchanger baffle components
- Flange-nut installation kit
- Two header O-ring gaskets
Polymer headers, bypass components, burner assembly, refractory panels, cabinet parts, plumbing fittings, and labor are not included.
Warranty Information
Warranty coverage is subject to Raypak’s current replacement-part terms, proof of purchase, correct application, and proper installation. Freeze damage, scale buildup, corrosion, improper water chemistry, restricted flow, overheating, or installation errors may not be covered.
