Product Overview

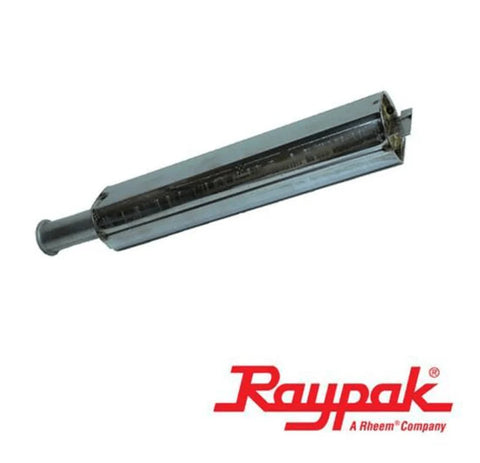

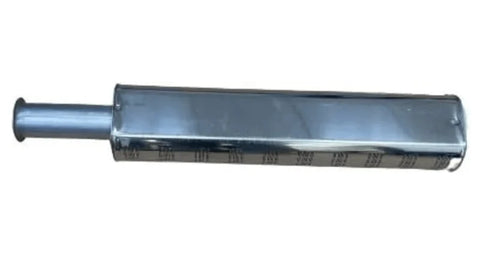

The Raypak 017045F Burner is a genuine OEM replacement burner designed for select Raypak 207A through 407A Low NOx pool and spa heaters. It installs in the heater burner tray and provides the controlled combustion required for efficient heat production.
Raypak identifies 017045F as the replacement burner for the 207A, 267A, 337A, and 407A heater family. It is ideal for replacing burners that have become corroded, damaged, distorted, or otherwise unsuitable for continued operation.
Key Features
Genuine Raypak OEM Replacement
Factory replacement burner manufactured for compatible Raypak pool and spa heaters.
207A-407A Compatibility
Designed for select Raypak 207A, 267A, 337A, and 407A Low NOx heater configurations.
Individual Replacement Burner
Allows damaged or deteriorated burners to be replaced without replacing the complete burner tray assembly.
Commercial-Grade Construction
Designed to withstand the elevated temperatures and combustion conditions found inside gas-fired pool heaters.
Direct-Fit Design
Engineered to fit the corresponding Raypak burner tray and hold-down system.
Benefits
- Genuine Raypak OEM replacement part
- Restores proper burner operation
- Helps maintain reliable heater combustion
- Allows individual burner replacement
- Suitable for multiple Raypak Low NOx heater sizes
- Helps extend the service life of an existing heater
- Ideal for professional heater repair and maintenance
Specifications
| Specification | Details |
|---|---|
| Brand | Raypak |
| Product Type | Pool Heater Burner |
| Manufacturer Part Number / SKU | 017045F |
| UPC / Barcode | 840891040071 |
| Compatible Heater Series | 207A-407A |
| Compatible Models | 207A, 267A, 337A, 407A |
| Application | Gas Pool & Spa Heater |
| Product Weight | 1.45 lb |
| Shipping Dimensions | 16 x 3 x 2.25 in. |
| Minimum Sell Quantity | 1 |
| Warranty | Subject to Current Raypak Replacement-Part Warranty Terms |
Pool360 currently confirms the UPC, 1.45 lb product weight, 16 x 3 x 2.25-inch shipping dimensions, and single-unit minimum sell quantity.
Installation Information
Burner replacement requires access to the heater's combustion and burner-tray assembly. Shut off the electrical power and gas supply before beginning service and allow the heater to cool completely.
Inspect the burner tray, burner hold-down components, burner orifices, pilot assembly, combustion-air components, and surrounding hardware while servicing the burner system.
Gas heater repairs should be completed by a qualified pool-heater or gas-service professional.
Confirm Before Ordering
Part 017045F is an individual replacement burner, not necessarily a complete set of all burners required by the heater.
Raypak's current parts documentation specifies the following quantities:
- 207A – 3 burners
- 267A – 4 burners
- 337A – 5 burners
- 407A – 6 burners
For example, a complete 407A burner replacement would require six 017045F burners unless the complete burner-tray assembly is being replaced instead. Raypak lists different complete burner-tray assemblies for each heater size.
Always verify the heater model, serial number, burner condition, and required quantity before ordering.
Warranty Information
The Raypak 017045F is a genuine factory replacement component. Warranty coverage is subject to Raypak's current replacement-part warranty terms, installation requirements, purchase channel, and proof of purchase.
Customer Q&A
Q: Is the Raypak 017045F a genuine OEM burner?
Yes. Raypak currently lists 017045F as the replacement burner for the 207A-407A heater family.
Q: Does one 017045F replace every burner in the heater?
No. The heater uses multiple burners depending on model. The 207A uses three, 267A uses four, 337A uses five, and 407A uses six.
Q: Does this include the complete burner tray?
No. The burner tray assemblies have separate Raypak part numbers.
Q: Should a professional install this burner?
Yes. Work involving a gas heater's combustion system should be completed by a qualified service professional.
