Product Overview

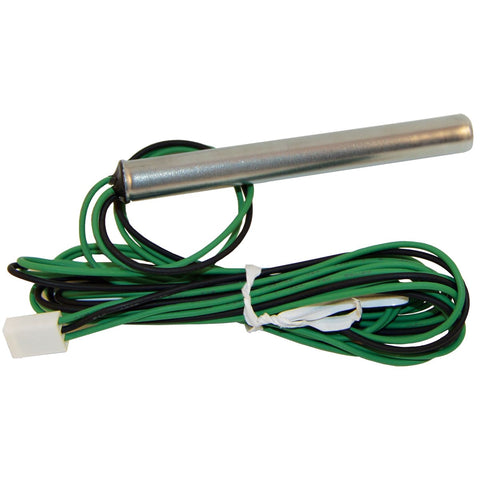

The Raypak 009577F Temperature Sensor is a genuine OEM 100K electronic three-wire sensor designed for compatible Raypak Digital and Low NOx IID pool and spa heaters.
The sensor monitors water temperature and provides temperature information to the heater's electronic control system, helping the heater maintain the selected temperature and operate correctly. It is an ideal replacement when troubleshooting a failed, damaged, or inaccurate original temperature sensor.
Key Features
Genuine Raypak OEM Replacement
Factory-authorized replacement sensor designed for compatible Raypak pool and spa heaters.
100K Electronic Sensor
Uses Raypak's specified 100K electronic temperature-sensing configuration.
Three-Wire Design
Features a three-wire electrical connection for communication with compatible Raypak heater control systems.
Digital & Low NOx IID Compatibility
Designed for select Raypak Digital Atmospheric and Digital Low NOx heaters equipped with compatible electronic controls.
Direct Replacement Component
Designed to replace the original compatible water temperature sensor during heater repair and maintenance.
Benefits
- Genuine Raypak OEM replacement part
- Helps restore accurate water-temperature sensing
- Supports proper heater temperature regulation
- Three-wire electronic design
- Compatible with multiple Raypak Digital heater sizes
- Helps diagnose temperature-related heater problems
- Allows sensor replacement without replacing the complete heater control system
Specifications
| Specification | Details |
|---|---|
| Brand | Raypak |
| Product Type | Electronic Temperature Sensor |
| Manufacturer Part Number / SKU | 009577F |
| UPC / Barcode | 840891011996 |
| Sensor Type | 100K Electronic |
| Wiring | 3-Wire |
| Ignition Application | IID / Electronic Ignition |
| Compatible Heater Type | Digital Atmospheric / Digital Low NOx |
| Digital Atmospheric Compatibility | 206A, 266A, 336A, 406A |
| Digital Low NOx Compatibility | 207A, 337A, 407A |
| Product Weight | 0.1 lb |
| Shipping Dimensions | 1.25 x 3.5 x 4 in. |
| Application | Pool & Spa Gas Heater |
| Warranty | Subject to Current Raypak Replacement-Part Warranty Terms |
Installation Information
Turn off electrical power and the gas supply to the heater before performing service. Allow the heater to cool before accessing the control and sensor components.
Remove the existing temperature sensor and connect the replacement 009577F according to the heater's wiring and service documentation. Inspect the sensor wiring, connectors, and control board for corrosion or damage during installation.
Heater diagnosis and repair should be performed by a qualified pool-heater or gas-service professional.
Confirm Before Ordering
Raypak 009577F is designed for select heater applications including:
- 206A Digital Atmospheric
- 266A Digital Atmospheric
- 336A Digital Atmospheric
- 406A Digital Atmospheric
- 207A Digital Low NOx IID
- 337A Digital Low NOx IID
- 407A Digital Low NOx IID
Compatibility depends on the heater model and control configuration. Confirm the heater model, serial number, and existing sensor part number before ordering.
Warranty Information
Raypak identifies its genuine factory-authorized heater parts and accessories as certified and warranted replacement components. Exact warranty duration and coverage should be confirmed under Raypak's current replacement-part warranty terms.
Customer Q&A
Q: Is the Raypak 009577F a genuine OEM part?
Yes. It is a genuine Raypak electronic temperature sensor for compatible pool and spa heaters.
Q: Is this a three-wire sensor?
Yes. The 009577F is a three-wire 100K electronic temperature sensor.
Q: What does the sensor do?
It monitors pool or spa water temperature and sends that information to the heater's electronic control system.
Q: Does this fit all Raypak heaters?
No. Compatibility depends on the heater model and electronic control configuration. Confirm the exact heater before ordering.
