Product Overview

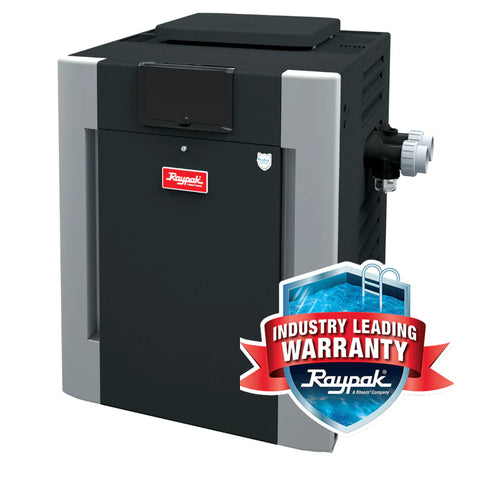

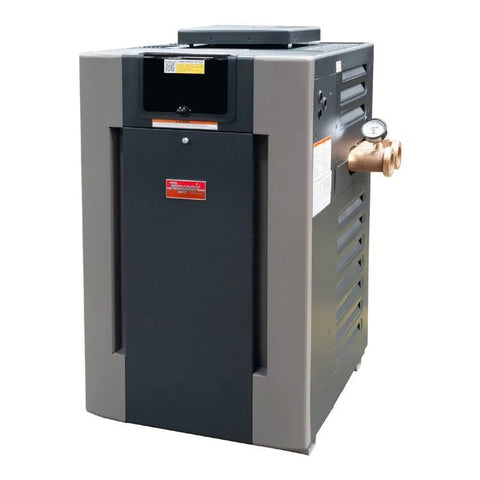

The Raypak B-R206A-EN-X #50 Digital ASME Natural Gas Heater 017399 is a durable pool and spa heater designed for reliable heating performance, digital operation, and heavy-duty ASME-rated construction. With a 199,500 BTU natural gas heating capacity, this model is a strong option for commercial pools, spas, and residential applications where ASME construction is required.
This model features a cupro-nickel heat exchanger for enhanced resistance in demanding water conditions, along with 2" bronze headers for added durability. The included ProTek Shield Module helps protect key heater components from corrosion, supporting longer service life when the heater is properly installed and maintained.
With digital controls, electronic ignition, natural gas operation, ASME construction, and Raypak’s service-friendly design, the 017399 is built for dependable performance in commercial and code-sensitive pool and spa installations.
Ideal For
The Raypak 017399 heater is ideal for:
- Commercial pool and spa systems
- Residential pools requiring ASME equipment
- Apartment, HOA, hotel, and facility pools
- Spas and therapy pools
- Natural gas installations
- Saltwater pool applications
- Applications requiring cupro-nickel durability
- Installations requiring 2" bronze headers
- Replacing older Raypak B-R206A ASME natural gas heaters
Key Features
199.5K BTU Heating Performance
The Raypak B-R206A-EN-X provides 199,500 BTU of natural gas heating power, making it suitable for commercial and residential pool/spa applications that require dependable heat output.
ASME-Rated Construction
Built to ASME standards, this heater is designed for applications where commercial-grade pressure vessel construction may be required by code or project specification.
Natural Gas Operation
Designed for use with natural gas, making it a practical choice for properties with existing natural gas service.
Cupro-Nickel Heat Exchanger
The cupro-nickel exchanger provides added durability compared with standard copper, especially in saltwater pools, spas, and applications with more aggressive water conditions.
2" Bronze Headers
Heavy-duty bronze headers provide added strength and durability for demanding pool and spa environments.
ProTek Shield Module
The included ProTek Shield Module helps protect against corrosion and supports longer heater component life.
Digital Control System
The digital control panel allows users to set and monitor water temperature easily. Built-in diagnostics help simplify troubleshooting and service.
Electronic Ignition
Electronic ignition provides reliable startup when there is a call for heat and eliminates the need for a constant standing pilot.
Benefits
The Raypak 017399 B-R206A-EN-X gives pool owners, facility managers, and service professionals a strong combination of ASME construction, corrosion resistance, and dependable heating performance. Its 199.5K BTU output is well suited for commercial spas, smaller commercial pools, and residential systems where a heavy-duty ASME heater is required.
The cupro-nickel heat exchanger helps provide added protection in saltwater or more demanding water conditions, while the 2" bronze headers add durability for heavier-use applications. Digital controls make operation simple, and built-in diagnostics help service professionals troubleshoot more efficiently.
Specifications
| Specification | Details |
|---|---|
| Brand | Raypak |
| Product Type | Digital ASME Pool & Spa Gas Heater |
| Model | B-R206A-EN-X / 206A |
| Burner Orifice | #50 |
| Part Number | 017399 |
| SKU | RAY017399 |
| UPC / Barcode | 840891042167 |
| Fuel Type | Natural Gas |
| BTU Rating | 199,500 BTU |
| Ignition Type | Electronic / Intermittent Spark Ignition |
| Control Type | Digital Control |
| Heat Exchanger | Cupro-Nickel |
| Header Material | Bronze |
| Header Size | 2" |
| Construction Standard | ASME |
| Protection Feature | ProTek Shield Module |
| Water Connection Size | 2" |
| Elevation Rating | 0–2,000 ft. |
| Approx. Weight | 206 lbs |
| Application | Commercial and residential pool/spa systems requiring ASME construction |
| Installation Type | Outdoor; indoor only with proper venting and code compliance |
| Gas Type | Natural Gas |
Important Installation Notes
This heater should be installed by a licensed pool, gas, or HVAC professional. Proper gas line sizing, electrical wiring, water flow, bonding, ventilation, clearances, and local code compliance are required for safe operation and warranty protection.
Because this is an ASME model, it may be required for certain commercial, public, or code-sensitive pool and spa applications depending on local code. Always confirm project requirements before ordering.
This model is designed for natural gas. It should not be used with propane unless the correct factory-approved propane model is selected.
Customer-Facing Q&A
Q: Is this heater natural gas or propane?
A: This model, Raypak 017399 / B-R206A-EN-X, is the natural gas version.
Q: How many BTUs is this heater?
A: This model is rated at 199,500 BTU.
Q: What does ASME mean?
A: ASME means the heater is built to a recognized pressure vessel construction standard. ASME heaters are commonly used for commercial, public, or code-sensitive pool and spa installations.
Q: What is the benefit of cupro-nickel?
A: Cupro-nickel provides added resistance against aggressive water conditions compared with standard copper. It is a strong option for saltwater pools, spas, and heavier-use applications.
Q: What is the benefit of bronze headers?
A: Bronze headers provide added strength and durability compared with standard residential header materials, making them suitable for more demanding installations.
Q: What does #50 mean?
A: The #50 designation refers to the burner orifice configuration for this natural gas heater model.
Q: Does this heater include ProTek Shield?
A: Yes. This model includes the ProTek Shield Module for added corrosion protection.
Q: Does it have digital controls?
A: Yes. The heater includes a digital control system for temperature adjustment, monitoring, and service diagnostics.
Q: Can this heater be used on a saltwater pool?
A: Yes. The cupro-nickel exchanger makes it a strong option for saltwater applications, but proper water chemistry must still be maintained.
Q: Does this heater require professional installation?
A: Yes. Gas pool heaters must be installed by a qualified professional to ensure proper gas, electrical, venting, water flow, and bonding compliance.
