Product Overview

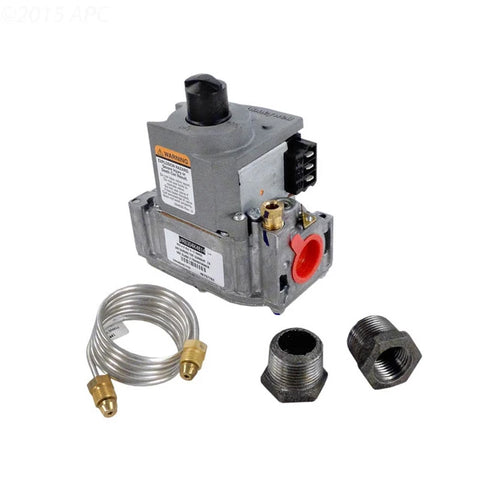

The Raypak 003900F Electronic Combination Gas Valve is a genuine OEM replacement kit designed for compatible Raypak natural gas heaters with IID electronic ignition.

This valve controls natural gas flow to the burner manifold during the heater ignition and operating sequence. The replacement kit is designed to service numerous legacy Raypak pool and spa heaters and includes the adapters and mounting components required for applicable installations.

Key Features

Natural Gas IID Application

Designed specifically for compatible Raypak heaters using natural gas and intermittent ignition device (IID) controls.

Electronic Combination Gas Valve

Combines gas-flow control and regulation functions within the heater's electronically controlled gas system.

3/4-Inch Application

Raypak catalogs the original application as a 3/4-inch natural gas combination valve. The replacement kit includes reducing bushings for applicable 1/2-inch connections.

Complete Service Kit

Includes the gas valve, reducing bushings, support bracket, pilot tubing, mounting hardware, and installation instructions.

Genuine Raypak Replacement

Raypak identifies 003900F as the replacement for older 005242F gas valve kits.

Benefits

• Genuine Raypak OEM service component
• Designed for natural gas heaters
• Compatible with IID electronic ignition systems
• Helps restore proper gas-flow control
• Includes connection adapters and installation hardware
• Supports numerous legacy Raypak heater families
• Replaces obsolete Raypak 005242F
• Designed for professional gas-heater repair

Specifications

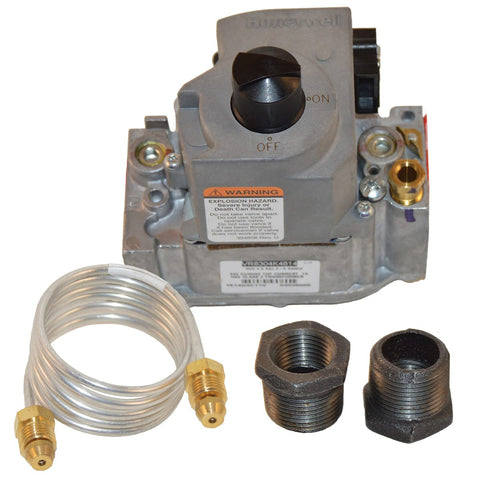

Kit Includes

• Electronic combination natural gas valve
• Two 1/2" x 3/4" reducing bushings
• Valve support bracket
• Two #10 x 3/8" hex-head screws
• 1/8" O.D. x 3" pilot tubing
• Installation instructions

Installation Information

Gas valve replacement requires access to the burner tray, gas manifold, pilot tubing, and heater electrical connections.

Before servicing:

• Disconnect electrical power to the heater
• Shut off the natural gas supply
• Allow the heater to cool completely
• Disconnect the gas supply line
• Inspect the burner manifold and pilot system
• Verify all gas connections for leaks after installation

The gas-flow direction indicated on the replacement valve must be observed during installation. Pipe-joint compound used on threaded connections must be suitable for fuel-gas service.

Gas valve installation, adjustment, and leak testing should be completed by a qualified gas-heater service professional.

Confirm Before Ordering

Raypak 003900F is used with compatible natural gas IID heater applications including:

• 53 / 53A / 53B
• 055A / 055B
• 105A / 105B
• 151 / 153 / 153A
• Select Gemini 181-401
• Select Versa 183-403 series
• Select RP2100 185-405
• Select P-R and C-R 185A-405A configurations

Compatibility varies by heater generation, fuel type, and ignition system. Confirm the model, serial number, existing gas valve, and natural gas configuration before ordering.

This valve is not intended as a substitute for a propane gas valve.

Warranty Information

The Raypak 003900F is a genuine factory-authorized replacement kit. Warranty coverage is subject to Raypak's current replacement-parts warranty terms, installation requirements, purchase documentation, and applicable exclusions.

Customer Q&A

Q: Is the Raypak 003900F for natural gas or propane?
It is designed for compatible natural gas heater applications.

Q: What ignition system does it work with?
It is primarily cataloged as an IID electronic ignition natural gas valve kit.

Q: What size is the valve connection?
The application is cataloged as 3/4 inch. The service kit includes two 1/2-inch x 3/4-inch reducing bushings for applicable installations.

Q: Does the kit include installation hardware?
Yes. The service kit includes the gas valve, reducing bushings, valve support bracket, mounting screws, pilot tubing, and installation instructions.

Q: What older Raypak part does it replace?
Raypak lists 003900F as the replacement for older gas valve kit 005242F.
