Product Overview

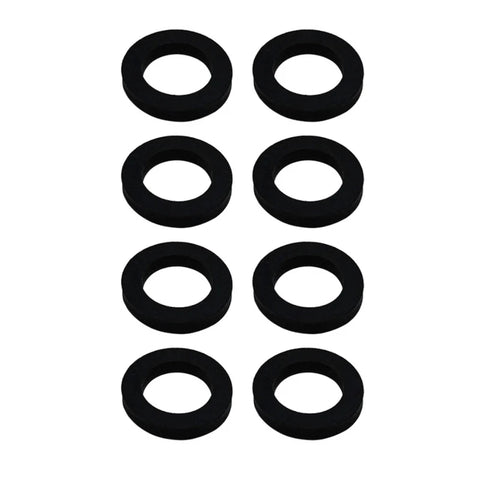

Restore a dependable watertight seal between the water header and heat-exchanger tubes of a compatible Raypak pool or spa heater with the Raypak 800014B Flat Header Gasket Kit. This genuine Raypak replacement kit contains nine flat gaskets designed for select atmospheric, Digital, Millivolt, Low NOx, and RP2100 heater configurations.
Header gaskets seal the individual tube connections where the heat exchanger meets the heater’s inlet and outlet headers. With age and repeated heating cycles, the original gaskets can flatten, harden, crack, or lose their ability to seal. A deteriorated gasket may cause dripping, mineral deposits, corrosion, reduced heater reliability, or water damage inside the cabinet.
The 800014B kit provides the nine gaskets commonly required when removing and reinstalling a compatible heater header. Replacing the entire gasket set during header or tube-bundle service helps produce consistent sealing across all connections and reduces the chance of reopening the heater because an old gasket begins leaking.
Key Features
- Genuine Raypak factory-authorized replacement kit
- Includes nine flat header gaskets
- Approximately ¾-inch inside diameter
- Approximately 1⅛-inch outside diameter
- Seals heat-exchanger tubes to compatible water headers
- Helps stop header seepage and water leaks
- Recommended during header or tube-bundle removal
- Fits numerous Raypak atmospheric heater models
- Suitable for professional heater repair
- Headers and tube bundle are not included
Specifications
| Specification | Details |
|---|---|
| Manufacturer | Raypak |
| Manufacturer Part Number | 800014B |
| SKU | 800014B |
| UPC / Barcode | 840891001461 |
| Product Type | Flat Header Gasket Kit |
| Inside Diameter | Approximately ¾ Inch |
| Outside Diameter | Approximately 1⅛ Inches |
| Package Quantity | 9 Gaskets |
| Installation Location | Header-to-Heat-Exchanger Connections |
| Header Included | No |
| Tube Bundle Included | No |
Compatibility
The 800014B gasket kit is used with select Raypak heater families, including compatible:
- Digital and Millivolt 206A through 406A heaters
- RP2100 R185 through R405 models
- RP2100 R185A through R405A models
- RP2100 R185B through R405B models
- Older 181 through 401 heater models
- Older 183 through 403 heater models
- Select 185A through 405A heaters
- Select 185B/C through 405B/C heaters
- Select Raypak 105A and 105B heaters
Compatibility depends on the complete heater model, production date, header type, exchanger configuration, and serial number. Confirm the applicable Raypak parts diagram before ordering.
Installation Information
Turn off electrical power, close the gas supply, stop the circulation pump, and relieve all water pressure before servicing the heater. Drain the heat exchanger as required before removing the header.
Remove all old gasket material and carefully clean the tube and header sealing surfaces. Inspect the header, tube ends, bolts, studs, and heat exchanger for cracks, corrosion, scale, or freeze damage. Install one new gasket at each required tube connection and tighten the header hardware gradually and evenly.
Do not reuse compressed gaskets. Excessive or uneven bolt torque may damage the header, distort the gasket, or create additional leaks. After reassembly, restart circulation and inspect every connection before firing the heater.
Professional installation by a qualified pool-heater technician is strongly recommended.
Package Contents
- Nine Raypak flat header gaskets
Headers, bolts, studs, tube bundle, bypass components, plumbing fittings, and labor are not included.
Warranty Information
Warranty coverage is subject to Raypak’s current replacement-part terms, proof of purchase, correct application, and proper installation. Normal wear, overheating, freezing, scale, corrosion, improper water chemistry, and installation damage may not be covered.
