Product Overview

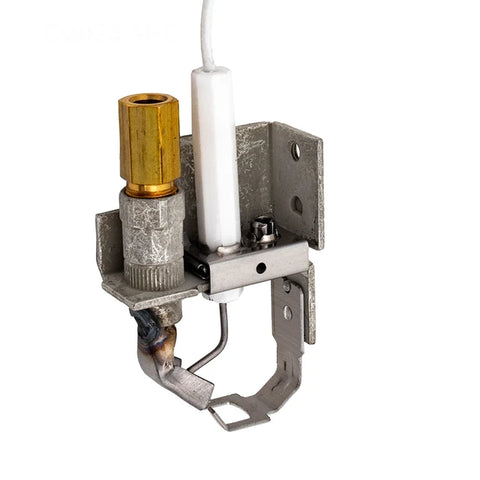

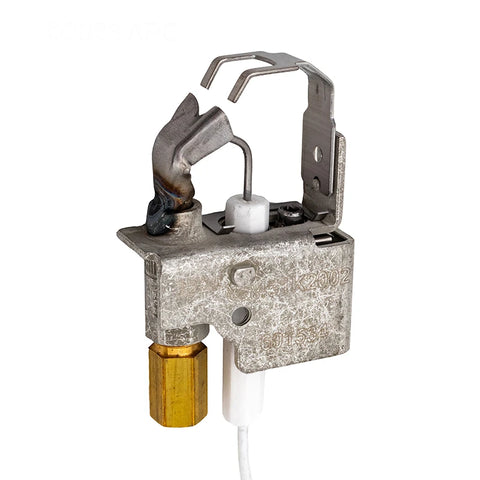

The Raypak 002003F Pilot Kit is a genuine OEM replacement pilot assembly designed for select Raypak pool and spa heaters equipped with an intermittent ignition device (IID) system. The kit is designed for compatible natural gas and propane heater applications and helps restore reliable pilot ignition when the original assembly becomes worn, damaged, or fails to ignite properly.
Raypak identifies the 002003F as the E10 Natural Gas/Propane Pilot Kit for compatible heater models ranging from select 53 through 408 series applications.
Key Features
Genuine Raypak OEM Replacement
Factory replacement pilot kit manufactured to Raypak specifications for compatible IID pool and spa heaters.
Natural Gas & Propane Applications
Designed for compatible Raypak heaters operating on natural gas or propane when properly configured for the heater's fuel type.
IID Ignition System
Designed for heaters equipped with an intermittent ignition device system.
Complete Service Component

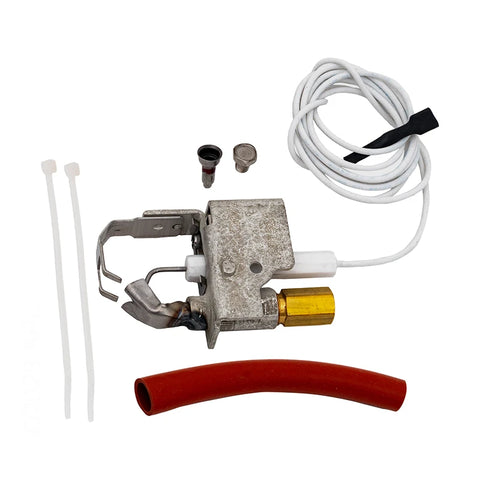

Includes the pilot assembly components required for compatible heater ignition-system servicing.
Commercial-Quality Construction
Manufactured for dependable operation in the high-temperature environment of gas-fired pool and spa heaters.
Benefits
- Genuine Raypak replacement part
- Restores dependable pilot ignition
- Supports natural gas and propane applications
- Designed specifically for compatible IID heaters
- Helps resolve pilot-related ignition problems
- Allows ignition-system repair without replacing the complete heater
- Suitable for residential and compatible commercial Raypak heater applications
Specifications
| Specification | Details |
|---|---|
| Brand | Raypak |
| Product Type | IID Heater Pilot Kit |
| Manufacturer Part Number / SKU | 002003F |
| UPC / Barcode | 840891000907 |
| Pilot Type | E10 |
| Ignition Type | IID / Intermittent Ignition |
| Fuel Compatibility | Natural Gas / Propane |
| Compatible Series | Select Raypak Pool & Spa Heaters |
| Listed Compatibility | 53A, 53B, 055A, 055B, 105A, 105B, 151, 153 IID |
| Product Weight | 0.3 lb |
| Shipping Dimensions | 2 x 3.5 x 5 in. |
| Application | Pool & Spa Gas Heater |
| Warranty | Subject to Current Raypak Replacement-Part Warranty Terms |
Pool360 confirms UPC 840891000907, 0.3 lb product weight, 2 x 3.5 x 5-inch shipping dimensions, and the listed IID heater compatibility.
Installation Information
Installation requires access to the heater's gas and ignition system. Shut off electrical power and the gas supply before servicing the heater and allow the unit to cool completely.
The correct pilot orifice and fuel configuration must be used for the heater's gas type. Pilot positioning, ignition wiring, gas connections, and flame characteristics should be checked after installation.
Gas heater repairs should be performed by a qualified pool-heater or gas-service professional.
Confirm Before Ordering
Raypak 002003F is listed for compatible IID heater applications including:
- 53A
- 53B
- 055A
- 055B
- 105A
- 105B
- 151
- 153
Raypak's replacement-parts catalog identifies the 002003F as “KIT-PILOT E10 NAT/PRO 053-408.” Compatibility extends beyond the abbreviated distributor fitment list in certain Raypak heater families, so the heater model, serial number, ignition type, and fuel configuration should be confirmed before ordering.
Warranty Information
Raypak identifies its genuine heater kits and accessories as factory-certified and warranted replacement parts. Exact coverage depends on the applicable Raypak product and replacement-part warranty terms.
Customer Q&A
Q: Is the Raypak 002003F a genuine OEM part?
Yes. It is a genuine Raypak replacement pilot kit.
Q: Can it be used with natural gas and propane?
Yes. The 002003F is identified by Raypak as a natural gas/propane pilot kit. The correct fuel-specific configuration must be used during installation.
Q: What does IID mean?
IID refers to an intermittent ignition device system, where the pilot operates as part of the heater's electronic ignition sequence rather than remaining continuously lit.
Q: Does this kit fit every Raypak heater?
No. Compatibility depends on heater model, ignition system, and fuel configuration. Verify the heater information before ordering.
