Product Overview

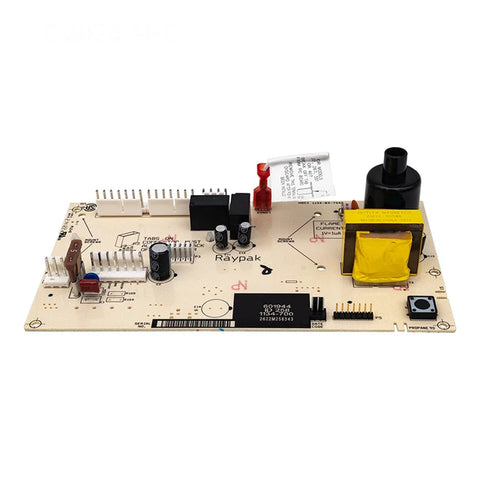

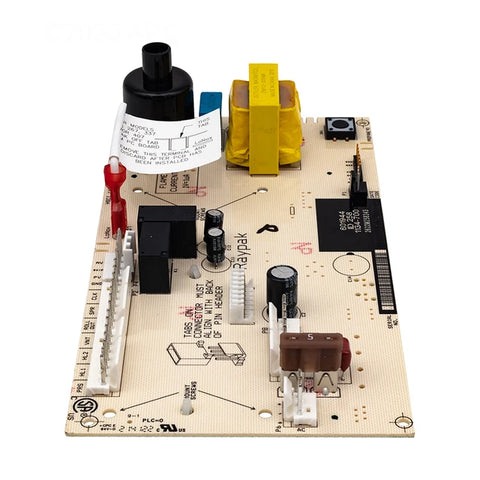

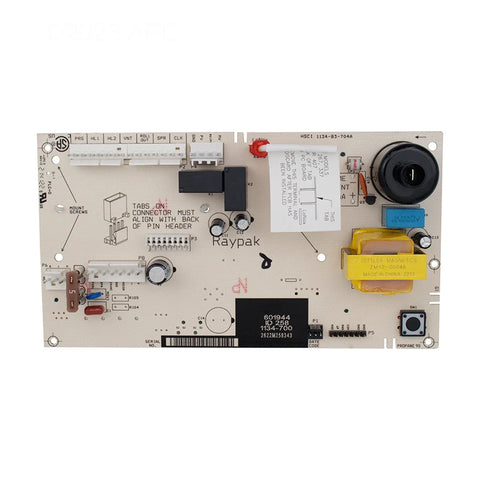

The Raypak 100-10000345 PC Board Controller Kit is a genuine OEM replacement electronic control board designed for select Raypak IID Digital pool and spa heaters. This 3-wire controller serves as the central electronic control for compatible heaters, managing heater operation, ignition sequencing, temperature-control functions, safety monitoring, and diagnostics.
Raypak 100-10000345 is the current replacement for the discontinued 013464F controller and is intended for compatible Raypak 206A-408 heater applications.
Key Features
Genuine Raypak OEM Replacement
Factory-authorized electronic control board designed specifically for compatible Raypak pool and spa heaters.
3-Wire Controller
Uses Raypak's 3-wire control configuration for compatible IID heater systems.
Central Heater Control
Coordinates ignition, temperature control, flame monitoring, safety circuits, and other heater operating functions.
Diagnostic Capability
Works with the heater's digital interface to support operating-status and diagnostic information for troubleshooting.
Updated Replacement Part
Current Raypak replacement for discontinued controller part number 013464F and related superseded control-board applications.
Benefits
- Genuine Raypak factory replacement component
- Restores heater electronic control functions
- Supports ignition and safety sequencing
- Helps restore temperature regulation
- Provides diagnostic support through the heater controls
- Designed for compatible Raypak Digital gas heaters
- Allows control-board replacement without replacing the complete heater
- Updated replacement for older Raypak controller part numbers
Specifications
| Specification | Details |
|---|---|
| Brand | Raypak |
| Product Type | PC Board Controller Kit |
| Manufacturer Part Number / SKU | 100-10000345 |
| UPC / Barcode | 840328444830 |
| Controller Type | Electronic PC Board |
| Wiring Configuration | 3-Wire |
| Ignition Application | IID |
| For Use With | Select Raypak 206A-408 Pool & Spa Heaters |
| Replaces | 013464F |
| Additional Superseded Applications | 013640F / 013489F |
| Product Weight | 2 lb |
| Shipping Dimensions | 12 x 9 x 3 in. |
| Minimum Sell Quantity | 1 |
| Application | Gas Pool & Spa Heater |
| Warranty | Subject to Current Raypak Replacement-Part Warranty Terms |
Installation Information
Replacement of the PC board requires access to the heater's electrical control compartment. Electrical power and gas supply to the heater should be shut off before service begins.
Before disconnecting the existing board, identify and document all wiring connections. Inspect wiring harnesses, terminals, connectors, sensors, ignition components, and grounding connections for corrosion or damage before installing the replacement controller.
Because the PC board is a critical electronic and safety-control component, installation and diagnosis should be performed by a qualified pool-heater service professional.
Confirm Before Ordering
Raypak part 100-10000345 is identified as:
- PC Board Controller Kit
- 3-wire configuration
- IID heater application
- For select 206A-408 Raypak pool heaters
- Current replacement for 013464F
Raypak also lists 013640F as directly superseded by 100-10000345. Older 013489F applications were superseded by 013464F and therefore may ultimately use the current 100-10000345 controller where appropriate.
Always confirm the heater model, serial number, existing control-board number, and wiring configuration before ordering.
Warranty Information
Raypak identifies genuine factory-authorized heater kits and accessories as certified and warranted replacement components. Exact warranty coverage and duration are subject to Raypak's current replacement-part warranty terms, purchase channel, installation, and application.
Customer Q&A
Q: Is the Raypak 100-10000345 a genuine OEM control board?
Yes. It is a genuine Raypak factory replacement PC board controller kit.
Q: What part does 100-10000345 replace?
It is the current replacement for Raypak 013464F. It also supersedes certain older controller applications, including 013640F and applications previously replaced by 013464F.
Q: Is this a 3-wire controller?
Yes. Raypak identifies the 100-10000345 as a 3-wire IID PC board controller.
Q: What heaters use this controller?
It is designed for select Raypak 206A-408 pool and spa heater applications. Exact compatibility should be confirmed using the heater model, serial number, and existing board number.
Q: Is this the complete heater control panel?
No. This listing is for the PC board controller kit. Other heater components, sensors, wiring, ignition components, and control-panel parts are not included unless specifically supplied with the kit.
