Product Overview

Restore reliable heat transfer in a compatible Raypak pool or spa heater with the Raypak 010371F ASME Tube Bundle Kit. This genuine Raypak replacement assembly is designed for select 406A and 407A heaters equipped with an ASME-rated metal-header heat exchanger.

The tube bundle is the central heat-transfer component inside the heater. Hot combustion gases pass across the finned tubes while pool water flows through them, allowing heat to transfer into the circulation system. Scale buildup, corrosion, freeze damage, poor water chemistry, or prolonged service can reduce heat-transfer performance and eventually cause leaks or heater failure.

Part 010371F uses durable cupro-nickel tubing for improved resistance to corrosion, erosion, and demanding water conditions. Cupro-nickel is often selected for commercial pools, saltwater applications, high-flow systems, and installations where additional heat-exchanger durability is preferred.

Replacing a damaged tube bundle can restore dependable heating without replacing the complete heater. Professional diagnosis is recommended because leaking headers, damaged gaskets, improper water flow, condensation, and plumbing issues can produce symptoms similar to a failed tube bundle.

Key Features

• Genuine Raypak OEM replacement kit
• Designed for compatible 406A and 407A heaters
• ASME-rated heat-exchanger configuration
• Durable cupro-nickel tube construction
• Designed for heaters with metal headers
• Supports efficient water-to-heat transfer
• Improved resistance to corrosion and erosion
• Suitable for demanding pool and spa applications
• Includes installation hardware and sealing gaskets
• Replaces a leaking, scaled, or damaged tube bundle
• Heater cabinet and headers are not included
• Professional installation is strongly recommended

Specifications

Compatibility

The 010371F tube bundle is intended for compatible Raypak 406A and 407A ASME pool and spa heaters using metal headers. Heater compatibility depends on the complete model number, serial number, manufacturing date, header material, exchanger configuration, and ASME designation.

Do not assume this assembly fits every Raypak 406 or 407 heater. Standard residential, polymer-header, copper-exchanger, Low NOx, and non-ASME configurations may require different parts.

Confirm the heater identification label and existing heat-exchanger construction before ordering.

Installation Information

Turn off electrical power, shut off the gas supply, close the water valves, and relieve all system pressure before beginning service. Replacing a tube bundle requires substantial heater disassembly and access to the combustion chamber and water connections.

The technician must inspect the headers, bypass assembly, refractory panels, burner tray, seals, gaskets, plumbing, and combustion area while the heater is open. After installation, the system must be pressure-tested and checked for water leaks, gas leaks, proper water flow, correct combustion, and safe exhaust operation.

Poor water chemistry, low flow, excessive flow, incorrect bypass operation, and improper gas pressure must be corrected before returning the heater to service.

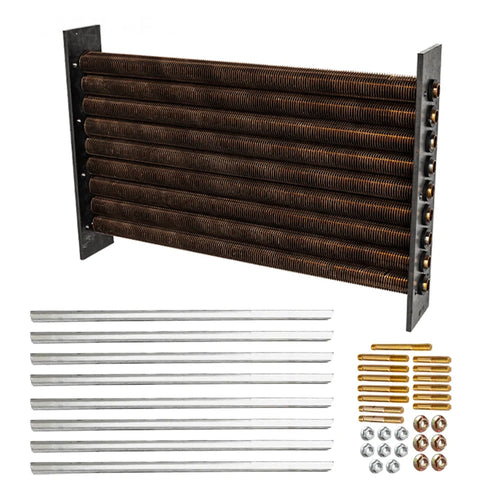

Package Contents

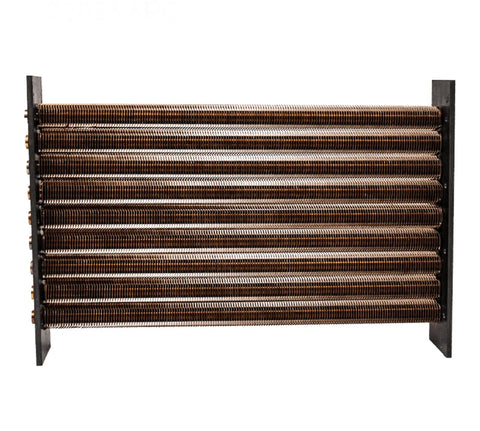

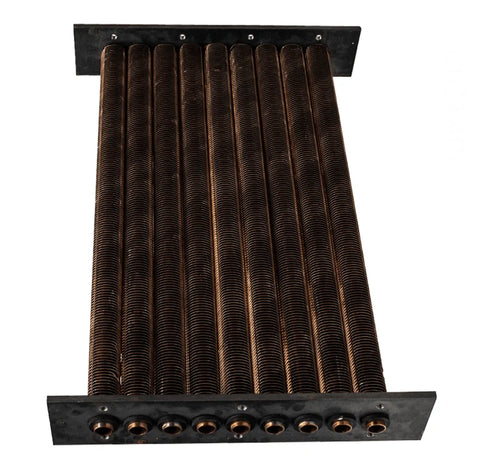

• One cupro-nickel ASME tube bundle

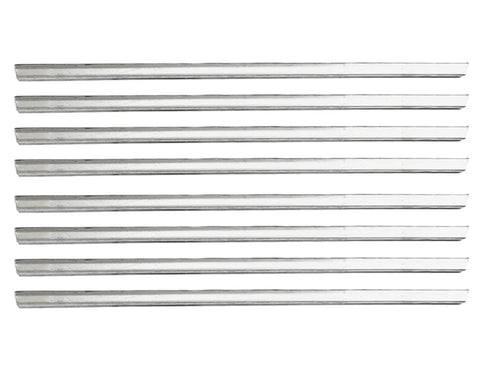

• One internal baffle

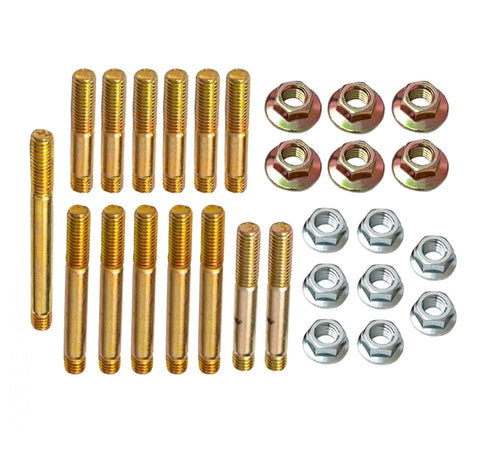

• One stud-bolt installation kit
• Nine header gaskets

Metal headers, header flanges, bypass components, burner assembly, refractory panels, cabinet parts, plumbing fittings, and labor are not included.

Warranty Information

Warranty coverage is subject to Raypak’s current replacement-part terms, proof of purchase, correct heater compatibility, and proper professional installation. Freeze damage, scale, improper water chemistry, incorrect flow, corrosion, and installation errors may not be covered.
