Product Overview
The Raypak 010058F Tube Bundle Kit is a replacement heat exchanger tube bundle designed for compatible Raypak 406/407 ASME pool and spa heaters. The tube bundle is a critical internal heater component that transfers heat from the burner system into the pool or spa water.
This kit is commonly used when the original tube bundle is leaking, scaled, corroded, frozen, or damaged due to age, improper water chemistry, or lack of winterization. Replacing the tube bundle can help restore heater performance and extend the service life of compatible Raypak ASME heaters.
Built for ASME heater applications, the 010058F is intended for professional service repairs where the heater cabinet and other components are still in usable condition.
Ideal For
The Raypak 010058F tube bundle kit is ideal for:
- Raypak 406/407 ASME heater repairs
- Replacing a leaking tube bundle
- Repairing freeze-damaged heater exchangers
- Restoring heat transfer performance
- Commercial pool heater service
- Residential ASME heater repairs
- Pool and spa heater rebuilds
- Professional heater maintenance and replacement work
Key Features
Replacement Tube Bundle Kit

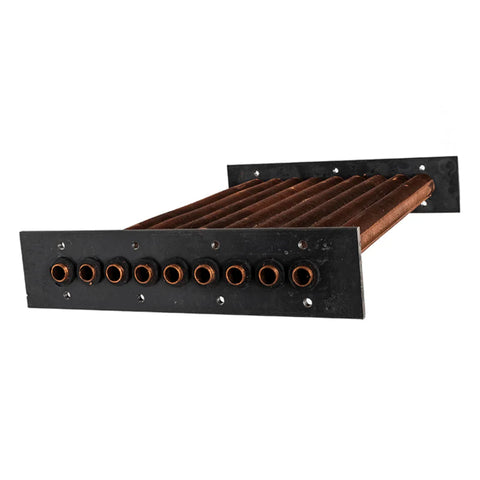

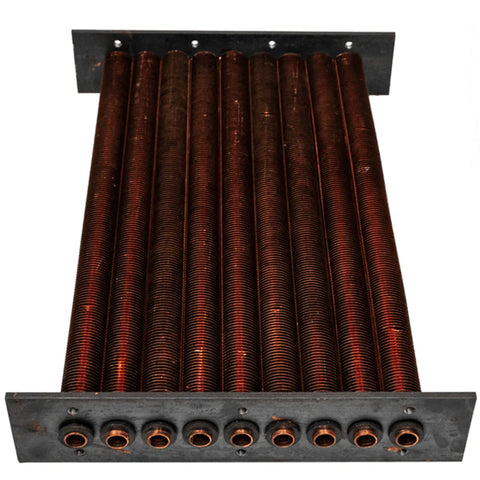

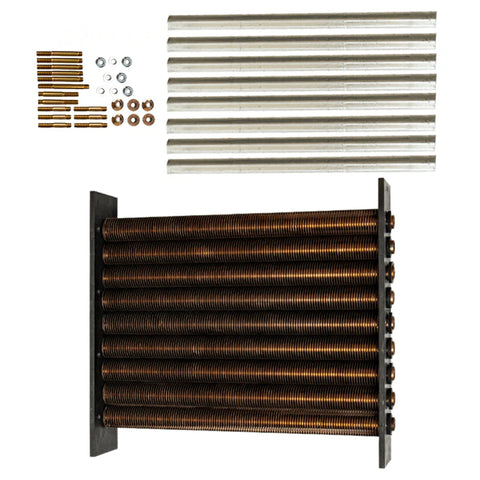

Designed to replace the tube bundle assembly inside compatible Raypak 406/407 ASME pool and spa heaters.
Fits 406/407 ASME Heater Models
Made for use with compatible Raypak ASME heater models in the 406/407 size range.
Restores Heat Transfer
A properly functioning tube bundle allows heat from the burner system to transfer efficiently into the pool or spa water.
Helps Repair Leaks and Damage
Used when the original tube bundle is leaking, cracked, scaled, corroded, or damaged from freezing.
ASME Heater Compatibility
Designed for ASME heater applications where commercial-grade construction may be required.
Professional Service Part
This is a major heater repair component and is typically installed by qualified pool heater technicians.
Benefits
The Raypak 010058F Tube Bundle Kit helps restore the heating function of compatible Raypak 406/407 ASME pool heaters without replacing the entire heater. If the heater cabinet, controls, burners, headers, and other major components are still serviceable, replacing the tube bundle may be a practical repair option.
A damaged tube bundle can cause water leaks, poor heating performance, pressure issues, or heater shutdowns. Installing the correct replacement kit helps restore proper water flow, heat transfer, and reliable heater operation when completed by a qualified professional.
Specifications
| Specification | Details |
|---|---|
| Brand | Raypak |
| Product Type | Tube Bundle / Heat Exchanger Replacement Kit |
| Part Number | 010058F |
| SKU | RAY010058F |
| UPC / Barcode | 840891019824 |
| Compatible Heater Size | 406/407 |
| Compatible Heater Type | Raypak ASME Pool & Spa Heaters |
| Application | Pool heater heat exchanger repair |
| Installation Location | Inside heater cabinet / heat exchanger section |
| Sold As | Kit |
Important Compatibility Notes
This tube bundle kit is designed for compatible Raypak 406/407 ASME pool and spa heaters. Always confirm the exact heater model, serial number, ASME configuration, header type, and parts diagram before ordering.
Tube bundle failure can be caused by poor water chemistry, freezing, low flow, scaling, improper bypass setup, or installation issues. Before replacing the tube bundle, the cause of failure should be identified to help prevent repeat damage.
This is a major heater repair part and should be installed by a qualified pool heater technician. Gas, electrical, water flow, venting, bonding, and safety controls should be inspected before returning the heater to service.
Customer-Facing Q&A
Q: What does the tube bundle do?
A: The tube bundle transfers heat from the heater’s burner system into the pool or spa water.
Q: What heaters does this fit?
A: This kit is designed for compatible Raypak 406/407 ASME pool and spa heaters. Always confirm your heater model and parts diagram before ordering.
Q: When should a tube bundle be replaced?
A: It may need replacement if it is leaking, cracked, corroded, scaled, freeze-damaged, or no longer transferring heat properly.
Q: Can this fix a leaking heater?
A: Yes, if the leak is coming from the tube bundle. A technician should inspect the heater to confirm the source of the leak before replacing parts.
Q: Is this for ASME heaters only?
A: This listing is for compatible ASME heater applications. Confirm your heater’s ASME configuration before ordering.
Q: Can I install this myself?
A: This is a major heater repair component and should be installed by a qualified pool heater technician.
Q: Should anything else be inspected during replacement?
A: Yes. Headers, gaskets, bypass components, burners, water chemistry, gas supply, flow rate, and safety controls should be inspected during service.
