Product Description

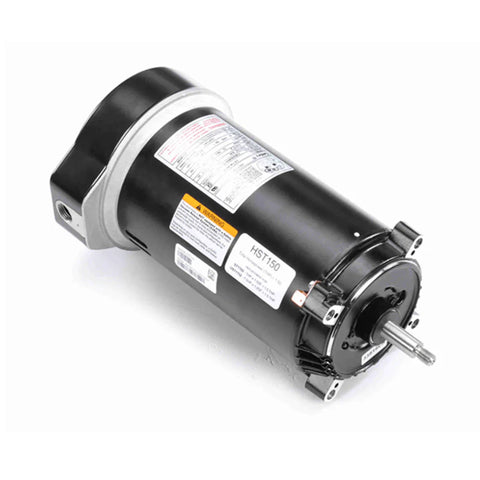

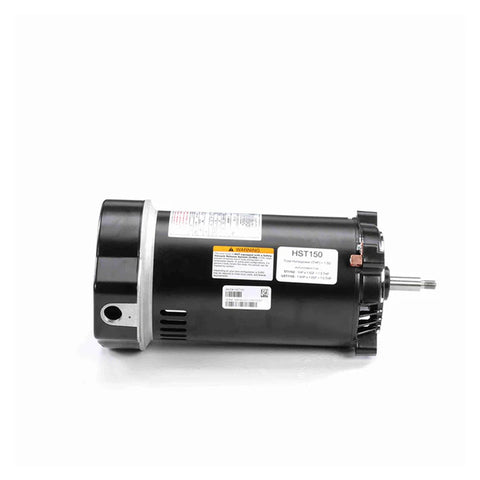

The Century Centurion Pro HST150 is a professional-grade replacement motor for compatible swimming pool and spa pumps. It delivers 1.50 total horsepower and features a 56J round-flange frame, threaded shaft, and dual-voltage 115/230V operation.
Designed with pool professionals in mind, the Centurion Pro motor features an accessible wiring compartment, an easy-to-use voltage-change device, automatic overload protection, and sealed ball bearings. Century’s Triple Seal protection helps shield the pump-end bearing from moisture, pests, and debris.
This listing includes the replacement motor only. The pump housing, impeller, mechanical shaft seal, gaskets, and seal kit are sold separately.
Key Features
- 1.50 HP and 1.50 total horsepower
- Single-speed, 3450 RPM operation
- Dual-voltage 115/230V electrical configuration
- 56J round-flange C-face mounting
- Threaded stainless-steel shaft
- Counterclockwise rotation when viewed from the pump end
- Open drip-proof motor enclosure
- Automatic thermal-overload protection
- Capacitor-start, induction-run design
- Premium sealed ball bearings
- Triple Seal pump-end bearing protection
- Accessible wiring compartment for easier installation
Technical Specifications
| Specification | Details |
|---|---|
| Output Horsepower | 1.50 HP |
| Service Factor | 1.00 |
| Total Horsepower | 1.50 THP |
| Voltage | 115/230V |
| Amperage | 17.2/8.6A |
| Frequency | 60 Hz |
| Phase | Single Phase |
| Speed | 3450 RPM |
| Frame | 56J |
| Mounting Style | Round Flange / C-Face |
| Shaft Type | Threaded |
| Shaft Diameter | 5/8 inch |
| Shaft Extension | Approximately 2.562 inches |
| Rotation | Counterclockwise, pump end |
| Enclosure | Open Drip Proof |
| Electrical Design | Capacitor Start, Induction Run |
| Duty | Continuous |
| Overload Protection | Automatic |
| Motor Orientation | Horizontal |
| Frame Material | Rolled Steel |
| Approximate Overall Length | 14.41 inches |
| Approximate Weight | 29 lb |
| Package Contents | Motor only |
These electrical and mechanical specifications match the HST150 manufacturer product data.
Compatibility Information
The HST150 is designed for pool and spa pumps requiring all of the following:
- 1.50 total horsepower
- 56J round-flange frame
- C-face mounting
- Threaded shaft
- 115V or 230V operation
- Single-speed motor
- Counterclockwise pump-end rotation
The HST150 is commonly used as a replacement for compatible UST1152 and ST1102 motor applications. Always compare the original motor nameplate, total horsepower, frame, voltage, mounting style, rotation, and shaft configuration before ordering.
Matching horsepower alone does not guarantee compatibility.
Installation Information
Disconnect power at the circuit breaker before beginning installation. Pool pump motor replacement involves electrical wiring, grounding, bonding, impeller removal, and installation of a pump-specific mechanical shaft seal.
A new mechanical shaft seal should be installed whenever the motor is replaced. Reusing the old seal may allow water to leak along the motor shaft and damage the new motor bearings.
Professional installation by a qualified pool technician or electrician is recommended.
