Product Overview

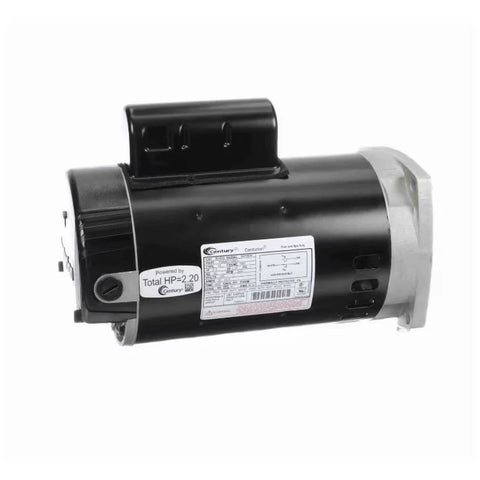

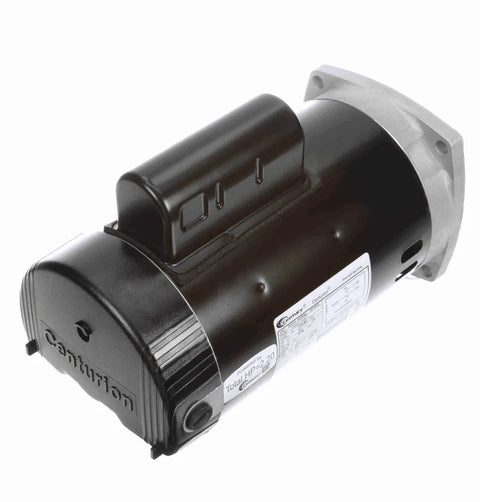

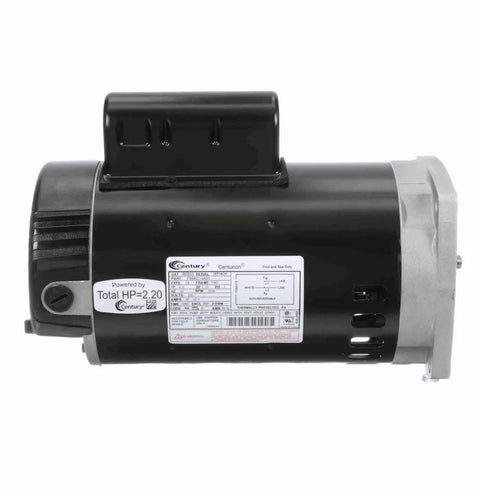

Restore reliable performance to your swimming pool pump with the Century B2855 2 HP Pool and Spa Pump Motor. Designed specifically for pool and spa circulation applications, the B2855 combines dependable single-speed operation, durable construction, and the industry-standard 56Y square-flange mounting configuration found on many popular in-ground pool pumps.

The Century B2855 operates at 3450 RPM and is rated for 2 HP with a 1.10 service factor, providing approximately 2.20 Total Horsepower (THP). Its 230V, single-phase electrical configuration makes it a popular replacement option for residential and commercial pool pumps requiring a high-performance square-flange motor.

Built for the demanding environment surrounding swimming pool equipment, the B2855 features a corrosion-resistant stainless-steel threaded shaft, sealed ball bearings, automatic thermal protection, and an open-drip-proof enclosure.

Key Features

2 HP pool and spa pump motor

2.20 Total Horsepower (THP)

Single-speed operation

3450 RPM

230V operation

Single-phase motor

60 Hz frequency

56Y square-flange frame

1.10 service factor

10.0 amp rating

Permanent Split Capacitor (PSC) motor design

Threaded stainless-steel shaft

Automatic thermal overload protection

Ball-bearing construction

Open Drip Proof (ODP) enclosure

Continuous-duty design

Designed specifically for pool and spa pump applications

UL recognized and CSA certified

Benefits

Built for Pool & Spa Applications

The Century B2855 is engineered specifically for the operating conditions encountered in pool and spa equipment installations. Its stainless-steel shaft provides increased corrosion resistance, while sealed ball bearings support smooth and dependable operation.

Automatic thermal protection helps protect the motor if operating temperatures rise beyond acceptable limits. The motor is also rated for continuous-duty applications and a maximum ambient temperature of approximately 122°F / 50°C.

Why Choose Century?

Century is one of the most recognized manufacturers of replacement electric motors for the swimming pool and spa industry. Century pool pump motors are used by homeowners, service professionals, and pool equipment technicians when replacing failed motors without replacing the complete pump assembly.

The Century B2855 2 HP 56Y Square-Flange Pool Pump Motor is an excellent replacement solution for compatible 230V pool pumps requiring a reliable 2 HP, single-speed motor.

Specifications

Replacement Motor Notice

The Century B2855 is the motor only.

Pump housing, seal plate, diffuser, impeller, mechanical shaft seal, gaskets, O-rings, wiring, and other pump components are not included unless specifically stated otherwise.

Always verify your existing pump and motor specifications before ordering.

Warranty & Compatibility

56Y Square-Flange Design

The 56Y square-flange frame is commonly used on high-performance in-ground swimming pool pumps. The square mounting flange attaches directly to the pump's seal plate, while the threaded motor shaft connects to the pump impeller.

When replacing an existing pump motor, do not select a replacement based on horsepower alone. Verify the original motor's:

• Horsepower
• Service factor or total horsepower
• Voltage
• Frame size
• Flange style
• Shaft configuration
• Pump model

Matching Total Horsepower (HP × Service Factor) is particularly important when selecting a replacement motor.

Important Installation Notice – Replace the Shaft Seal

A new mechanical shaft seal should be installed whenever a pool pump motor is replaced.

Do not reuse the existing shaft seal. An old or damaged mechanical seal can allow pool water to leak along the motor shaft and into the new motor, potentially causing bearing damage, corrosion, or premature motor failure.

The correct shaft seal depends on the specific pump model, not the motor model.

We recommend identifying your pump manufacturer and model before ordering the appropriate seal or complete go-kit.

Important California & New York Notice

This is a 2 HP single-speed pool pump motor and may be restricted from sale or installation in California and New York due to applicable pool pump energy-efficiency regulations.

Customers should verify applicable state and local requirements before ordering or installing this motor. A compliant variable-speed replacement may be required in certain jurisdictions.
