Product Overview

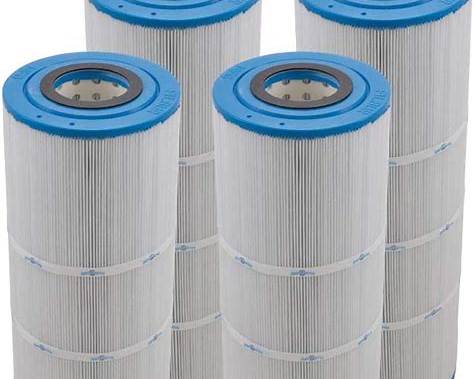

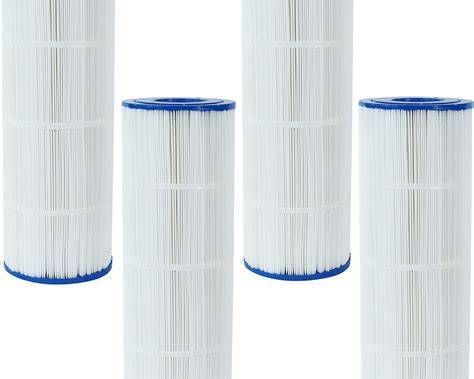

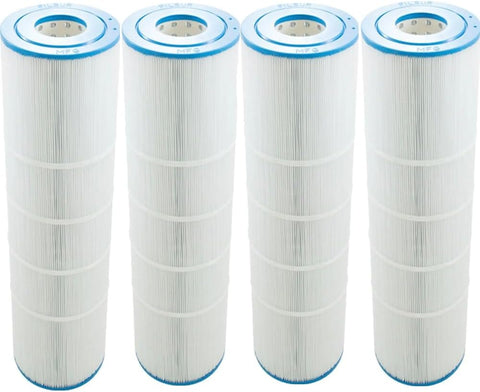

The Filbur FC-6470 Replacement Cartridge 4-Pack is a complete replacement filter set designed for compatible Pentair Clean & Clear Plus 420 cartridge filters.
Each cartridge provides approximately 105 sq. ft. of filtration area, giving the complete four-cartridge set approximately 420 sq. ft. of total filtration capacity.
Filbur manufactures its pool cartridges with heavy-duty filtration media, molded end caps, and extruded PVC center cores designed to maintain structural integrity while providing excellent dirt-holding capacity and water flow.
The FC-6470 is the convenient four-pack version of Filbur's FC-1977 individual replacement cartridge and cross-references common Pentair, Pleatco, and Unicel replacements used in the Clean & Clear Plus 420.
Key Features & Benefits
- Complete 4-Pack – Replaces all four cartridges in a compatible Clean & Clear Plus 420 filter.
- 105 Sq. Ft. Per Cartridge – Provides approximately 420 sq. ft. total filtration area.
- Designed for Clean & Clear Plus 420 – Filbur specifically identifies FC-6470 for this filter family.
- 4 oz. Filtration Media – Engineered for strong dirt-holding capacity and dependable water flow.
- Extruded PVC Center Cores – Provides structural support during normal filtration operation.
- Molded End Caps – Designed for easy installation without additional adapters.
- 3" Open Ends – Matches the compatible Clean & Clear Plus cartridge configuration.
- Complete Filter Refresh – Allows all four cartridges to be replaced at the same time for balanced filtration.
- Aftermarket Replacement – Quality Filbur alternative to OEM Pentair filter cartridges.
POOL360 confirms Filbur uses 4 oz. media, PVC extruded cores, and molded end caps on FC-6470.
Specifications
| Specification | Details |
|---|---|
| Manufacturer | Filbur |
| Manufacturer Part Number | FC-6470 |
| Product Type | Replacement Pool Filter Cartridge Set |
| Pack Quantity | 4 Cartridges |
| Filtration Area | 105 Sq. Ft. Per Cartridge |
| Total Filtration Area | Approx. 420 Sq. Ft. |
| Outside Diameter | 7" |
| Length | 26-1/16" |
| Top Opening | Approx. 3" Open |
| Bottom Opening | Approx. 3" Open |
| Media Weight | 4 oz. |
| Core Construction | Extruded PVC |
| Application | Pool & Spa |
| Compatible Filter | Pentair Clean & Clear Plus 420 |
| Approx. Package Weight | 22.1 lbs |
| Shipping Dimensions | 15" × 15" × 27" |
| UPC / GTIN | 645544064707 |
| Condition | New |
Compatible Filter Applications
The FC-6470 is designed primarily for:
- Pentair Clean & Clear Plus 420
- Compatible PacFab Clean & Clear Plus 420 systems
- Select Waterway applications using the same 105 sq. ft. cartridge dimensions
Filbur directly identifies the individual FC-1977 cartridge with the Clean & Clear Plus 420 and Pentair/PacFab/Waterway applications.
Cross-Reference Part Numbers
| Manufacturer | Part Number |
|---|---|
| Filbur 4-Pack | FC-6470 |
| Filbur Single Cartridge | FC-1977 |
| Pentair / PacFab | R173576 / 178584 |
| Pleatco | PCC105 / PCC105-PAK4 |
| Unicel | C-7471 / C-7471-4 |
Current cross-reference data consistently maps FC-6470 to the Clean & Clear Plus 420 cartridge family.

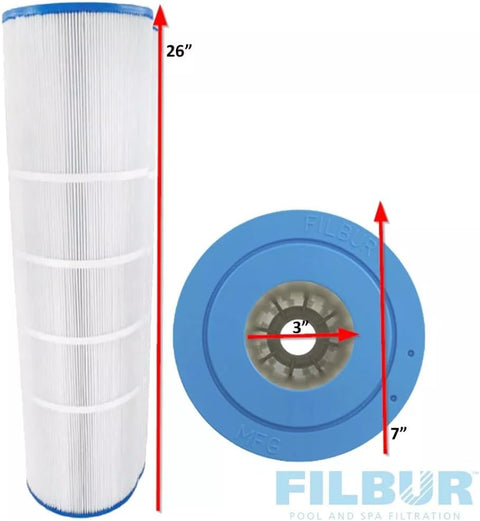

Cartridge Dimensions
Each cartridge measures approximately:
7" Outside Diameter
26-1/16" Length
3" Open Top
3" Open Bottom
105 Sq. Ft. Filtration Area
Always compare the filter model and existing cartridge dimensions before ordering, particularly on older Clean & Clear Plus installations.
Complete 420 Sq. Ft. Filter Set
The FC-6470 contains four 105 sq. ft. cartridges:
105 sq. ft. × 4 = approximately 420 sq. ft.
This provides the complete replacement set required for a compatible Pentair Clean & Clear Plus 420 filter.
Why Replace All Four Cartridges Together?
Replacing the complete cartridge set at the same time helps provide:
- Balanced flow through all four elements
- More even debris loading
- Consistent filter pressure
- Better filtration performance
- Similar cartridge service life
- Easier future maintenance
Mixing heavily used elements with brand-new cartridges can lead to uneven resistance and filtration performance.
Filbur Cartridge Construction
Filbur cartridges are designed with:
- Heavy-duty filtration media
- Molded end caps
- Extruded PVC center cores
- Embossed cartridge identification
- Pool-grade construction
Filbur states its quad-pack cartridges are produced to strict OEM specifications and are packaged as complete four-cartridge sets.
Maintenance Tips
For maximum cartridge life:
- Rinse cartridges thoroughly with a garden hose.
- Clean carefully between each pleat.
- Avoid excessive high-pressure spray that could damage the media.
- Inspect the pleats, center core, and end caps during each cleaning.
- Remove oils and mineral deposits with an appropriate cartridge cleaner when required.
- Replace cartridges that are torn, collapsed, cracked, or permanently clogged.
- Maintain properly balanced pool water.
Frequently Asked Questions
How many cartridges come with FC-6470?
Four cartridges are included.
How much filtration area does each cartridge provide?
Approximately 105 sq. ft. per cartridge.
Does FC-6470 fit a Pentair Clean & Clear Plus 420?
Yes. Filbur specifically identifies FC-6470 for the Clean & Clear Plus 420.
What is the single-cartridge Filbur number?
FC-1977. Filbur identifies FC-1977 as the 105 sq. ft. Clean & Clear Plus 420 cartridge.
What are the cartridge dimensions?
Approximately 7" diameter × 26-1/16" long.
Is this a genuine Pentair cartridge?
No. This is a Filbur aftermarket replacement cartridge set designed for compatible Pentair filtration equipment.
What is the Pleatco equivalent?
PCC105 / PCC105-PAK4.
What is the Unicel equivalent?
C-7471 / C-7471-4.
