Product Overview

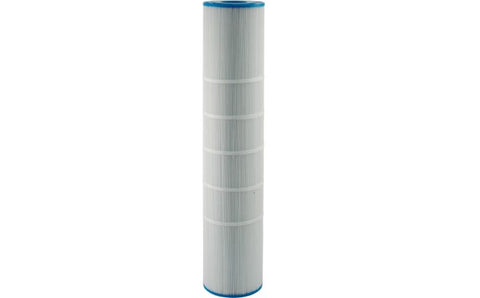

The Filbur FC-6475 Replacement Cartridge 4-Pack is a complete replacement filter set designed for compatible Pentair Clean & Clear Plus 520 cartridge filters.
Each cartridge is rated by Filbur at approximately 125 sq. ft. of filtration area, providing a complete four-cartridge replacement set for the 520 sq. ft. Clean & Clear Plus filter family.
Filbur cartridges are engineered for dependable dirt-holding capacity, efficient water flow, and long service life. The FC-6475 uses 4 oz. filtration media, molded end caps, and PVC extruded center cores designed to maintain cartridge strength under normal pool-filtration pressure.
This four-pack is the Filbur quad-pack equivalent of the individual FC-1978 cartridge and cross-references common Pentair, Pleatco, and Unicel replacements used in the Clean & Clear Plus 520.
Key Features & Benefits
- Complete 4-Pack – Replaces all four cartridges in a compatible Clean & Clear Plus 520 filter.
- 125 Sq. Ft. Per Cartridge – Filbur’s current manufacturer rating.
- Designed for Clean & Clear Plus 520 – Specifically listed by Filbur for this filter family.
- 4 oz. Filtration Media – Designed for effective dirt capture and reliable water flow.
- PVC Extruded Center Cores – Provides structural support during filtration.
- Molded End Caps – Designed for straightforward installation without additional adapters.
- Embossed Part Numbers – Helps make future cartridge identification easier.
- Complete Filter Refresh – Replacing the entire set helps maintain balanced hydraulic performance.
- Aftermarket Replacement – Quality Filbur alternative to OEM Pentair cartridges.
Specifications
| Specification | Details |
|---|---|
| Manufacturer | Filbur |
| Manufacturer Part Number | FC-6475 |
| Product Type | Replacement Pool Filter Cartridge Set |
| Pack Quantity | 4 Cartridges |
| Filbur-Rated Filtration Area | 125 Sq. Ft. Per Cartridge |
| Compatible Filter Size | Pentair Clean & Clear Plus 520 |
| Outside Diameter | 7" |
| Length | Approx. 32-1/16" |
| Top Opening | 3" Open |
| Bottom Opening | 3" Open |
| Media Weight | 4 oz. |
| Core Construction | Extruded PVC |
| Application | Pool & Spa |
| Approx. Package Weight | 26.9 lbs |
| Shipping Dimensions | 15" × 15" × 33" |
| UPC / GTIN | 645544064752 |
| Condition | New |
Compatible Filter Applications
The FC-6475 is designed primarily for:
- Pentair Clean & Clear Plus 520
- Compatible Pentair/PacFab Clean & Clear Plus 520 installations
- Select Waterway applications using the same cartridge dimensions and cross-reference
Pentair confirms the Clean & Clear Plus 520 uses four R173578 cartridges.
Cross-Reference Part Numbers
| Manufacturer | Part Number |
|---|---|
| Filbur 4-Pack | FC-6475 |
| Filbur Single Cartridge | FC-1978 |
| Pentair | R173578 / 178585 |
| Pleatco | PCC130 / PCC130-PAK4 |
| Unicel | C-7472 / C-7472-4 |
Filbur’s FC-1978 product page directly cross-references Unicel C-7472 and Pleatco PCC130 for the Clean & Clear Plus 520.
125 Sq Ft vs. 130 Sq Ft Naming
You’ll see this cartridge marketed both ways online.
Many distributors refer to the FC-6475 as a 130 sq. ft. cartridge, largely because the Pleatco cross-reference is PCC130. However, Filbur’s own current catalog rates FC-6475 at 125 sq. ft. per cartridge.
For your Shopify listing, I would use:
Title:
Filbur 130 Sq Ft Clean & Clear Plus 520 Cartridge 4-Pack | FC-6475
Then in the specifications, use:
Manufacturer-Rated Media Area: 125 Sq Ft Per Cartridge
That keeps you aligned with how customers search while still keeping the technical data accurate.
Why Replace All Four Cartridges Together?
Replacing all four filter cartridges at the same time can help provide:
- Balanced water flow
- Consistent filter pressure
- Even debris loading
- Similar cartridge service life
- Improved overall filtration
- Easier maintenance scheduling
A mixed set of old and new cartridges can create uneven resistance inside the filter.
Maintenance Tips
For maximum cartridge life:
- Rinse cartridges thoroughly with a garden hose.
- Clean carefully between individual pleats.
- Avoid excessive high-pressure spray that can damage the media.
- Inspect the center core and end caps during every cleaning.
- Replace cartridges that are torn, cracked, collapsed, or permanently clogged.
- Use an appropriate cartridge cleaner when oils or mineral deposits are present.
- Maintain proper pool-water chemistry.
Frequently Asked Questions
How many cartridges come with FC-6475?
Four cartridges are included.
Does FC-6475 fit the Pentair Clean & Clear Plus 520?
Yes. Filbur specifically identifies FC-6475 for the Clean & Clear Plus 520.
Is it 125 or 130 sq. ft.?
Filbur’s own current specifications rate it at 125 sq. ft. per cartridge, although many distributor listings market the same cartridge family as 130 sq. ft.
What is the Pentair cross-reference?
R173578 / 178585. Pentair lists four R173578 cartridges for the Clean & Clear Plus 520.
What is the Pleatco equivalent?
PCC130 / PCC130-PAK4.
What is the Unicel equivalent?
C-7472.
Why Buy From Pool Supply Depot?
Pool Supply Depot supplies replacement filter cartridges, complete filters, pumps, heaters, automation systems, salt systems, lighting, and OEM and aftermarket pool equipment nationwide.
If you're unsure whether FC-6475 fits your filter, send us the filter model number or the part number printed on the existing cartridge, and our team can help verify compatibility before ordering.
Order the Filbur Clean & Clear Plus 520 Replacement Cartridge 4-Pack | FC-6475 from Pool Supply Depot today.
