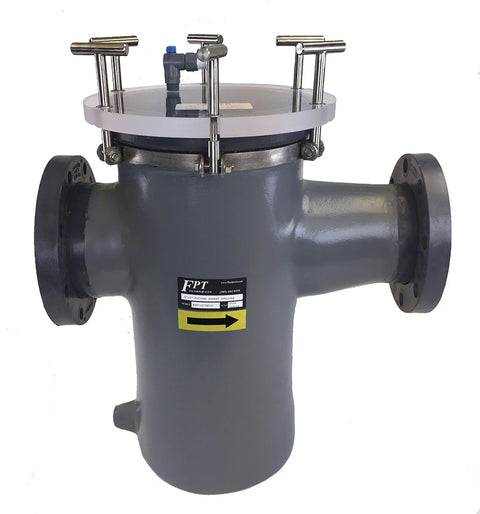

The Fluidtrol RSW116104331 protects pumps in commercial aquatic circulation systems by filtering debris through a 4-inch inlet to 3-inch outlet eccentric reducing configuration. Engineered for freshwater and saltwater pools, fountains, and water parks, the strainer body utilizes corrosion-resistant FRP construction with PVC wetted components designed to withstand pool chemicals. The unit features a heavy-duty 316 stainless steel basket with 1/8-inch perforations capable of capturing hair, lint, and larger solids without compromising system flow rates.
Maintenance and Inspection The cast acrylic cover enables visual inspection of the basket area while operating, reducing downtime for routine checks. Heavy-duty SS316 T-handle hardware ensures secure retention during high-flow conditions, allowing efficient access for cleaning. With a maximum pressure rating of 50 PSI and temperature capability up to 140°F, this model balances durability with operational efficiency. Proper pipe alignment and service clearance are essential during installation by qualified commercial pool professionals to accommodate the 15-3/4-inch face-to-face dimension.Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Fluidtrol |
| Series | RSW Series |
| SKU / Part Number | RSW116104331 |
| Product Type | Reducing Hair & Lint Basket Strainer |
| Strainer Size | 4" x 3" |
| Inlet Size | 4" |
| Outlet Size | 3" |
| Connection Type | Flanged |
| Configuration | Eccentric Reducing |
| Body Material | FRP |
| Flange Material | PVC |
| Basket Material | SS316 Stainless Steel |
| Basket Perforation | 1/8" |
| Cover Material | Cast Acrylic |
| T-Handle Material | SS316 |
| Vent | 1/2" PVC FPT |
| Drain | PVC NPT |
| Maximum Pressure | 50 PSI |
| Maximum Temperature | 140°F |
| Face-to-Face Dimension | 15-3/4" |
| Effluent Center Line | 12-1/8" |
| Overall Height | 20" |
| Influent Center Line | 11-5/8" |
| Approximate Weight | 32 lbs. |
| Application | Commercial Aquatic Circulation |
| Specification | Details |
|---|---|
| Manufacturer | Fluidtrol |
| Series | RSW Series |
| SKU / Part Number | RSW116104331 |
| Product Type | Reducing Hair & Lint Basket Strainer |
| Strainer Size | 4" x 3" |
| Inlet Size | 4" |
| Outlet Size | 3" |
| Connection Type | Flanged |
| Configuration | Eccentric Reducing |
| Body Material | FRP |
| Flange Material | PVC |
| Basket Material | SS316 Stainless Steel |
| Basket Perforation | 1/8" |
| Cover Material | Cast Acrylic |
| T-Handle Material | SS316 |
| Vent | 1/2" PVC FPT |
| Drain | PVC NPT |
| Maximum Pressure | 50 PSI |
| Maximum Temperature | 140°F |
| Face-to-Face Dimension | 15-3/4" |
| Effluent Center Line | 12-1/8" |
| Overall Height | 20" |
| Influent Center Line | 11-5/8" |
| Approximate Weight | 32 lbs. |
| Application | Commercial Aquatic Circulation |
Fluidtrol 4" x 3" Flanged FRP/PVC Strainer with Stainless Steel Basket | RSW116104331
$2,185.99
