Product Overview

The Hayward WG1032HF2PAK2 High Flow Drain Cover and Frame Dual Pack is designed for residential and commercial concrete swimming pools requiring high-capacity suction outlet protection.

Each assembly features a 12" x 12" square High Flow suction outlet cover with matching inner and outer frames. The durable ABS construction is noncorrosive and designed for long-term submerged pool applications.

This convenient two-pack is suitable for new construction, replacement applications, and compatible existing Hayward square drain frames.

Key Features

High Flow Suction Outlet Design
Engineered for high-capacity pool circulation systems with certified flow rates based on installation and sump configuration.

12" x 12" Square Configuration
Designed for compatible Hayward 12-inch square suction outlet installations.

Dual Pack
Includes two cover and frame assemblies for dual-drain installations or replacement applications.

Inner and Outer Frames Included

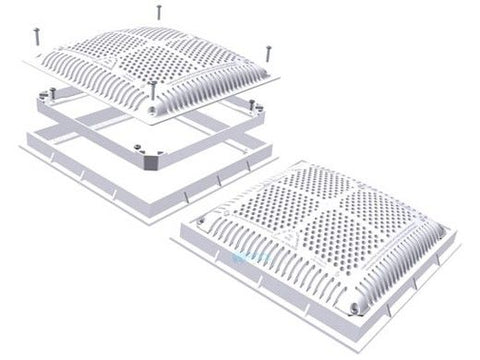

Each assembly includes the High Flow cover along with matching inner and outer frame components.

Durable ABS Construction
Noncorrosive ABS material is designed for dependable submerged use in residential and commercial pools.

Benefits

• High-flow suction outlet design
• Includes two complete cover and frame assemblies
• 12" x 12" square configuration
• Retrofits compatible existing Hayward frames
• Suitable for residential and commercial pools
• Durable noncorrosive ABS construction
• Certified anti-entrapment design
• Seven-year cover service life
• White finish blends with common pool surfaces

Specifications

Installation Information

Installation must be performed according to current Hayward instructions and all applicable federal, state, local, and pool safety requirements.

Maximum allowable flow depends on the sump configuration, plumbing size, mounting orientation, and complete suction outlet installation.

Hayward specifies that its drain covers should be installed only with compatible Hayward frames and sumps. Installing a Hayward cover on a non-Hayward frame, or using an unapproved cover on a Hayward frame, may affect compliance.

The cover and grate components should be inspected frequently and replaced at least every seven years, or sooner if cracked, damaged, missing, broken, or no longer securely attached. Mounting screws should be replaced whenever the cover is replaced.

Confirm Before Ordering

Verify the existing drain frame, sump, plumbing configuration, mounting orientation, and required system flow before ordering.

WG1032HF2PAK2 is a dual-pack containing two 12" x 12" High Flow cover assemblies with inner and outer frames.

Do not select a suction outlet cover based solely on physical dimensions or advertised maximum flow. The allowable flow must be determined using the complete certified installation configuration.

Warranty Information

Hayward lists a 1-year parts warranty for this product. The suction outlet cover has a specified service life of seven years from installation.

Warranty coverage is subject to current Hayward terms, proper installation, application, and maintenance requirements.

Customer Q&A

How many drain covers are included?
WG1032HF2PAK2 is a dual pack and includes two cover and frame assemblies.

What size are the covers?
Each cover is approximately 12" x 12" and square.

Are the inner and outer frames included?
Yes. Each assembly includes the High Flow cover, inner frame, and outer frame.

What is the maximum flow rate?
The official certified rating depends on sump and mounting configuration. Floor-mounted installations are rated up to 416 GPM with a 3-inch side port or 484 GPM with a 4-inch side port. Wall-mounted configurations are rated up to 308 GPM.

How long can the cover remain in service?
Hayward specifies a maximum service life of seven years for the suction outlet cover, with earlier replacement required if damage or deterioration is found.

Can this retrofit an existing Hayward frame?
Yes. Hayward identifies its High Flow covers as compatible retrofit replacements for existing applicable Hayward frames.
