Product Overview

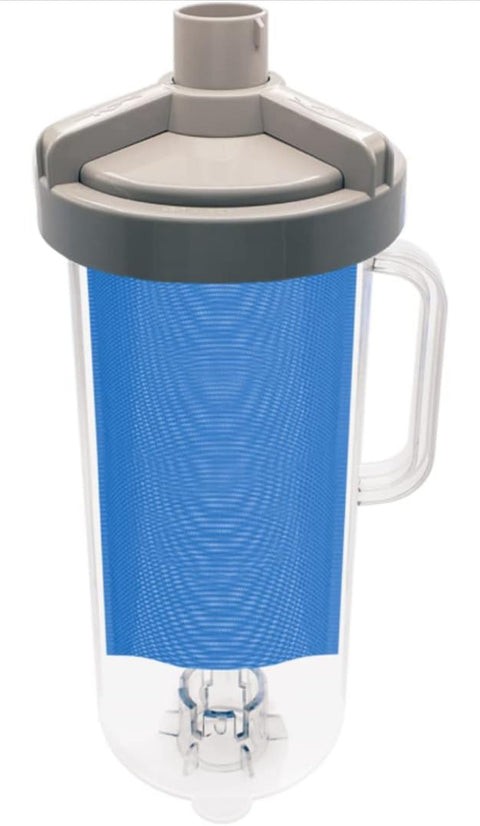

Keep leaves, acorns, and other large debris from clogging your pump basket or filter. The Hayward W530 Large Capacity Leaf Canister installs inline on your suction cleaner hose to capture debris before it reaches your system, helping your cleaner run more consistently and cutting down on maintenance. It features a clear polymer body so you can see when it’s time to empty, plus an easy-open lid/lock ring for quick cleanouts.

Ideal For

• In-ground pools with heavy leaf/debris load (trees, windy areas, seasonal leaf drop)

• Suction-side automatic cleaners using 1-1/2" cleaner hose sections

• Pool owners who want to reduce skimmer/pump basket cleaning and improve suction cleaner performance

Key Features

• Extra-large debris capture to trap leaves before they reach your filter

• Bypass flow design helps maintain water flow even as debris collects

• Clear body lets you check debris level at a glance

• Easy-open lid with lock ring for fast cleaning

• Designed for in-ground pools

Benefits

• Helps prevent clogs and suction loss that can slow down suction cleaners

• Helps protect your pump and filter by intercepting large debris first

• Less time emptying baskets, more time with a cleaner pool

Installation & Compatibility (Quick Notes)

With an automatic suction cleaner: Install the canister inline between the first and second hose sections (counting from the pool wall), then submerge to purge air before restarting the pump.

With manual vacuuming: You’ll need the W550 adapter kit to adapt to common manual vacuum hose/skimmer setups.

Specifications

• Model: W530

• Pool Type: In Ground

• Warranty: 1-year parts only

• GTIN: 610377170819

• Shipping Dimensions: 16" x 20.5" x 22.5"

• Shipping Weight: 21 lb

What’s Included

• Leaf canister assembly (W530) with debris capture bag (replacement bag listed as AXW538)

Customer-Facing Q&A

Q: What does the W530 do?
A: It traps leaves and large debris before they reach your pump basket or filter, which can improve cleaner performance and reduce clogs.

Q: How do I know when it needs to be emptied?
A: The body is clear, so you can see the debris level without opening it.

Q: Where does it install?
A: Inline on the suction cleaner hose—install it between the first and second hose sections from the pool wall.

Q: Can I use it for manual vacuuming?
A: Yes—use the W550 Leaf Canister Adapter Kit for typical manual vacuum/skimmer configurations.

Q: Will it restrict water flow when it fills up?
A: It’s designed with a bypass flow concept to help maintain water flow as debris collects.
