Product overview

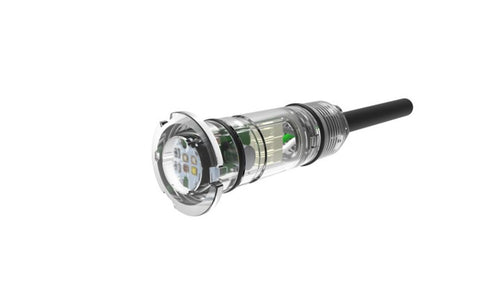

Bring customizable color to steps, shallow water, and water features with the Pentair IntelliVibe Nano Light, part 602270. This compact 1-inch, 2W LED light includes a 150-foot cord for installations with a longer route to the lighting controller or junction box.

The Nano is an accent light within Pentair’s IntelliVibe system. With the required IntelliVibe Controller, you can select colors and shows, adjust brightness, set schedules, and organize lights into independently controlled zones through the Pentair Pool app.

Key features

• Compact 1-inch design for discreet accent lighting
• 2W LED output suited to steps, shallow areas, and features
• 150-foot attached cord for longer installation runs
• Millions of colors and 12 color-changing shows through the IntelliVibe system
• Dimming and adjustable white tones through the Pentair Pool app
• Rated for underwater and out-of-water applications when properly installed

Specifications and compatibility

Select the mounting hardware for your application. Pentair offers separate Nano niche kits for gunite (602271), vinyl liner (602272), and fiberglass (602273) pools. A suitable standard wet-conduit 1½-inch NPT return fitting requires the separate Nano adapter 602274.

Installation and upgrade context

The 150-foot cord makes part 602270 useful when the light location is farther from the controller or junction box. Measure the full conduit route, allowing the service length required by the installation instructions, before selecting a cord length. Pentair also offers 50-foot (602268) and 100-foot (602269) Nano versions.

The Nano is designed for accent lighting. Its 2W output produces less light than a larger pool luminaire, so plan the number and placement of lights according to the area you want to illuminate.

The IntelliVibe Controller and a compatible pool-rated isolation transformer are required and sold separately. The light uses three conductors: black and white for power and green for communication. The green conductor is not a ground wire. Have a licensed or certified electrician or qualified pool professional verify the fitting, conduit, wiring, and applicable installation requirements.

Frequently asked questions

Does 602270 include the IntelliVibe Controller?
No. The controller is a separate required component for IntelliVibe operation and app control.

Is a niche included with the light?
No. Choose the appropriate separate Nano niche kit if your installation requires one.

Can it fit a 1½-inch return fitting?
It can be installed in a suitable standard wet-conduit 1½-inch NPT fitting using Pentair’s separate adapter 602274. Confirm the fitting and conduit with your installer.

Can the Nano be used outside the pool?
Pentair rates the Nano for both underwater and air operation when installed for the intended application.

What is the difference between 602268, 602269, and 602270?
They are Nano light assemblies with 50-foot, 100-foot, and 150-foot cords, respectively. Part 602270 is the 150-foot version.
