Product Overview

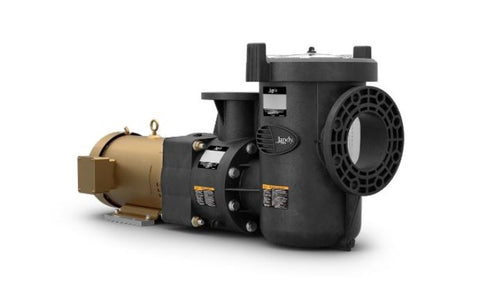

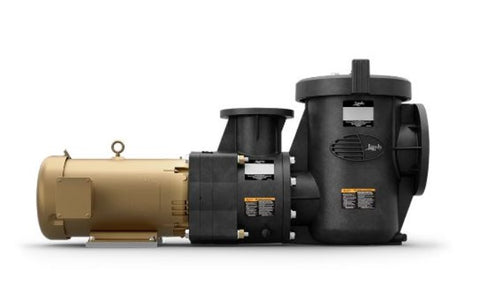

Engineered for high-volume water circulation, the Jandy JCP071BDN delivers 7.5 horsepower of steady flow for commercial pools and aquatic facilities that require heavy-duty hydraulic performance. This pump operates on a 230V single-phase circuit and pairs an Open Drip Proof (ODP) motor enclosure with a polymer housing reinforced by stainless-steel hardware to resist corrosive chlorine and salt environments.

The JCP071BDN ships without an integrated strainer assembly, making it the correct selection for facilities that route water through a dedicated upstream filtration unit. Standardized 6-inch suction and 4-inch discharge ANSI flanges align with conventional commercial piping layouts, while its 25 x 13.5 x 16.375-inch footprint and 157-pound net weight fit standard equipment pads. Rated to 3450 maximum RPM, the unit carries NSF, ANSI, and ETL listings required for public aquatic installations.

Key Features

Motor & Power: 7.5 HP, 230V Single Phase, ODP enclosure, 3450 RPM max

Plumbing Interface: 6" Suction / 4" Discharge ANSI Flange

Configuration: Strainer-free design for upstream filter integration

Retrofit Target: Compatible replacement for select Pentair C-Series, CSP-Series, and EQ-Series pumps

Certifications: NSF, ANSI, ETL listed

Specifications

Warranty & Compatibility

Professional electrical and plumbing installation is required due to the amperage draw and the need to support pipe weight independently of the pump casing. Verify voltage phase, flange dimensions, and strainer placement before ordering; electronic pool equipment of this class is subject to non-return policies once installed or activated.
