Product Overview

The Jandy Pro Series AquaLink® RS8 Pool & Spa Upgrade Kit | R0468501 is a genuine Jandy/Zodiac OEM retrofit kit designed to modernize compatible AquaLink RS8 Pool & Spa automation systems.

Rather than replacing the complete power center and enclosure, the R0468501 allows owners and service professionals to upgrade the primary control electronics inside an existing compatible AquaLink RS8 system.

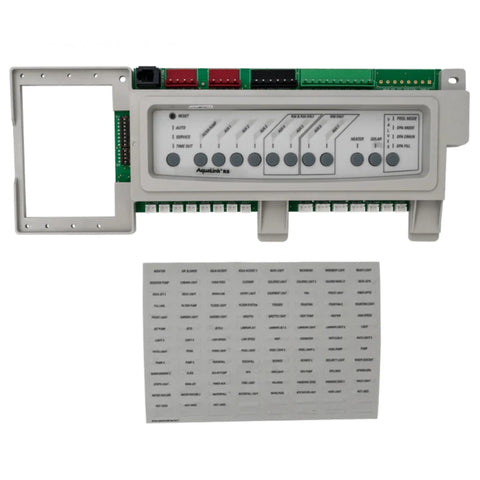

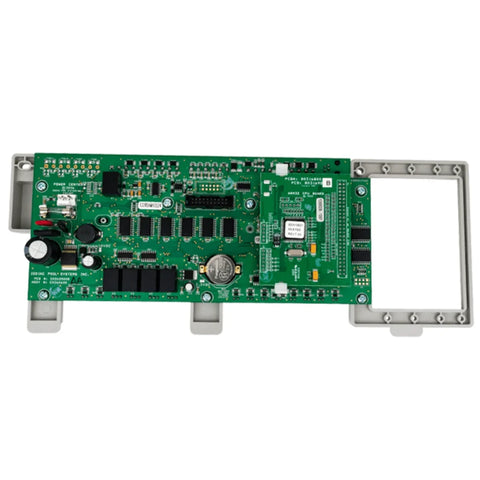

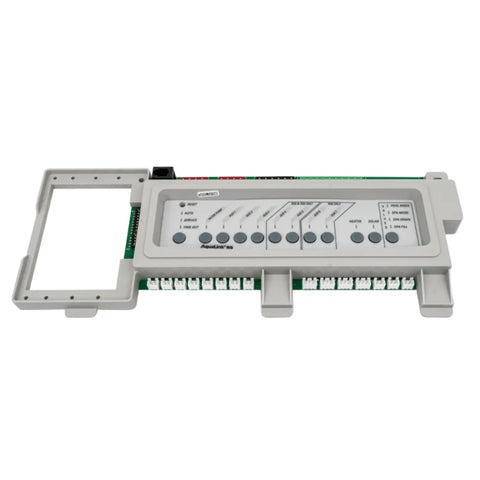

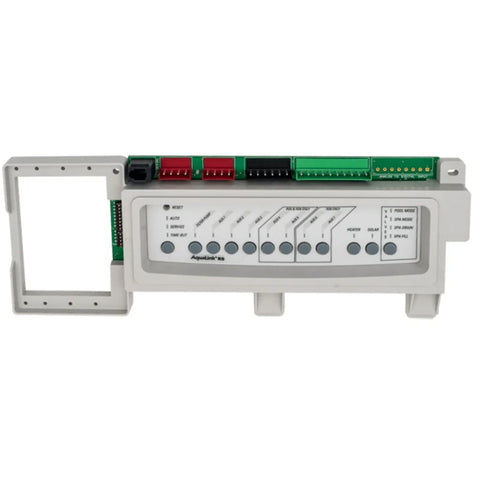

The kit includes the 50-pin main power center PCB, bezel/keypad assembly, and 50-pin CPU board, providing the core electronic components needed to restore or update an existing RS8 Pool & Spa automation system.

This is an excellent solution for older AquaLink systems that need updated control-board technology while retaining the existing power center, relays, wiring, and compatible field equipment.

Ideal For

• Existing Jandy AquaLink RS8 Pool & Spa systems
• Older AquaLink automation upgrades
• Failed AquaLink RS8 control boards
• Pool and spa combination systems
• Variable-speed pump integration
• LED pool and spa lighting
• Jandy OneTouch control installations
• Automation modernization projects
• Professional pool equipment repairs

Key Features & Benefits

• Genuine Jandy OEM Upgrade Kit – Designed specifically for compatible AquaLink RS8 systems.
• Complete Control Electronics Upgrade – Replaces the core control board and CPU components.
• 50-Pin Main PCB Included – Provides the primary power-center control interface.
• 50-Pin CPU Board Included – Updates the AquaLink system's processing and automation capabilities.
• Bezel & Keypad Included – Provides the associated power-center user interface.
• Supports Modern Pool Equipment – Updated AquaLink revisions support equipment such as compatible variable-speed pumps and LED lighting.
• Retains Existing Power Center – Helps modernize an older system without necessarily replacing the entire enclosure.
• Pool & Spa Configuration – Designed specifically for compatible RS8 Pool & Spa combination systems.
• OEM Reliability – Maintains Jandy-designed communication and equipment-control architecture.

Specifications

POOL360 identifies R0468501 specifically for the AquaLink RS8 Pool & Spa Control System and confirms the included 50-pin main PCB, bezel, keypad, and 50-pin CPU board.

What's Included

The Jandy R0468501 upgrade kit includes:

• 50-Pin Main Power Center PCB
• 50-Pin CPU Board
• Power Center Bezel
• Keypad / Control Interface

This provides the primary components required to update the electronics of a compatible AquaLink RS8 system.

What Does This Upgrade Do?

Older AquaLink systems may still have a perfectly usable enclosure, transformer, relays, wiring, and field equipment but outdated or failed electronics.

The R0468501 allows the core control system to be updated without replacing the entire automation installation.

Depending on system configuration and revision, upgraded AquaLink RS controls can provide improved support for:

• Variable-speed pumps
• Pool and spa heaters
• LED pool lights
• Spa lighting
• Valve actuators
• Water features
• Cleaner systems
• Auxiliary equipment
• Jandy OneTouch controls

Current AquaLink RS systems can automate filtration, heating, lighting, valves, water features, cleaning equipment, and other pool functions.

Important Compatibility Information

R0468501 is specifically an AquaLink RS8 Pool & Spa upgrade kit.

Do not order this kit based only on the AquaLink name.

Before purchasing, verify:

• Your existing automation is an AquaLink RS
• Your system is an RS8
• Your configuration is Pool & Spa
• Your existing board uses the compatible architecture
• Your required equipment is supported by the updated revision

Jandy has manufactured numerous AquaLink RS configurations, including Pool Only, Pool & Spa, RS4, RS6, RS8, RS12, and RS16 systems.

The correct board must match your system configuration.

RS8 Pool & Spa Configuration

The RS8 Pool & Spa configuration is intended for a two-body shared-equipment system, typically a swimming pool and attached spa sharing filtration and heating equipment.

PoolWeb specifically identifies R0468501 as the upgrade for the AquaLink RS-PS8, an eight-function Pool & Spa system.

If your system is Pool Only or has a different number of auxiliary circuits, a different AquaLink upgrade board may be required.

Upgrade Kit vs. iAquaLink Antenna

This kit replaces the core AquaLink control electronics.

It should not be confused with an iAquaLink Web Connect antenna, which provides internet/app connectivity to a compatible AquaLink automation system.

If your existing control board is already compatible and you simply want smartphone access, you may only need an appropriate iAquaLink Web Connect device.

If the control board itself is outdated or has failed, the R0468501 upgrade kit may be required.

Installation Guidance

The AquaLink power center contains both low-voltage communication wiring and high-voltage electrical circuits.

Installation should be performed by a qualified pool automation technician or licensed electrician familiar with Jandy AquaLink systems.

Power should be disconnected before servicing the power center.

After installation, system programming and equipment assignments should be verified to ensure proper operation of pumps, valves, heaters, lights, and auxiliary circuits.

Frequently Asked Questions

What does Jandy R0468501 fit?
It is designed for compatible Jandy AquaLink RS8 Pool & Spa automation systems.

Does it include the main control board?
Yes. The kit includes the 50-pin main PCB.

Does it include the CPU board?
Yes. A compatible 50-pin CPU board is included.

Does it include the bezel and keypad?
Yes. The bezel and keypad assembly are included.

Is this a complete new AquaLink power center?
No. It is an electronics upgrade kit for a compatible existing power center.

Will this fit an RS4, RS6, RS12, or RS16?
Not necessarily. R0468501 is specifically identified for the RS8 Pool & Spa configuration.

Can it support variable-speed pumps and LED lighting?
Updated RS8 revisions are designed to provide support for modern automation functions, including compatible variable-speed pumps and LED lighting.
