Product Overview

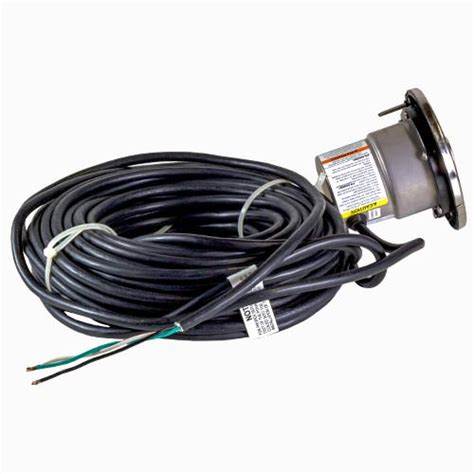

The Jandy WSHV100WS100 Small White Spa Light is a complete underwater incandescent fixture designed to provide bright, traditional white illumination for compatible in-ground spas, fountains, and other small bodies of water. This model operates on 120 volts, uses a 100-watt incandescent lamp, and includes a 100-foot factory-installed power cord.

The compact fixture features a stainless-steel body and face ring for durability and corrosion resistance in properly maintained pool and spa environments. Its diffused tempered-glass lens spreads the light across the spa, helping improve nighttime visibility while creating the warm appearance associated with traditional incandescent lighting.

Jandy offers its white incandescent fixtures in large pool and smaller spa configurations, with both 120V and 12V versions available. The WSHV100WS100 is the small 120V spa-light configuration with a 100-foot cord.

This is a complete wet-niche light fixture, not only a replacement bulb, lens, or face ring. A compatible small underwater niche is required and is sold separately.

Key Features

• Genuine Jandy underwater spa-light fixture
• Small-format design for spas and small water features
• Traditional white incandescent illumination
• 120V electrical operation
• 100-watt lamp output
• Includes a 100-foot factory-installed cord
• Stainless-steel housing and face ring
• Diffused tempered-glass lens
• Compatible with approved Jandy small niches
• Basic ON/OFF operation
• Can be connected to an approved switch, timer, or automation relay
• Complete fixture with lamp included
• Designed for residential and commercial applications

Benefits

The WSHV100WS100 delivers simple, dependable white lighting without requiring specialized color controllers or programming. Its 100-watt incandescent lamp provides warm illumination that is well suited for spas, fountains, and smaller water areas.

The stainless-steel construction provides a durable finished appearance while helping the fixture withstand routine exposure to treated water. The 100-foot cord offers installation flexibility when the approved junction box is positioned farther from the spa.

Because the lamp inside the fixture is replaceable, the complete underwater housing may remain installed when future bulb service is required, provided the cord, housing, socket, lens, and sealing components remain safe and serviceable.

Specifications

Installation Information

Disconnect all electrical power before installing or servicing the light. Confirm that the existing lighting circuit operates on 120 volts and that the niche, conduit, junction box, GFCI protection, grounding, and bonding meet applicable electrical codes.

Route the complete 100-foot factory cord continuously through the niche conduit to an approved junction box. Do not cut, splice, shorten, or modify the cord underwater or inside the conduit. Leave sufficient cord behind the fixture so it can be lifted safely onto the spa deck for future service.

The light must remain properly submerged during operation for cooling. Jandy requires underwater lighting service to be completed by a qualified professional familiar with pool and spa electrical installations.

Confirm Before Ordering

Verify the following:

• Your spa-lighting circuit operates on 120V.
• You require a 100-watt incandescent fixture.
• Your spa uses a compatible small wet niche.
• A 100-foot cord is appropriate for the installation.
• You want traditional white lighting rather than LED or color-changing illumination.
• You need a complete fixture rather than only a replacement bulb.
• Your circuit is properly protected and sized for the lighting load.

Warranty Information

The Jandy WSHV100WS100 is covered by the applicable manufacturer’s limited warranty when installed and operated according to Jandy requirements. Warranty coverage does not include incorrect voltage, dry operation, incompatible niches, modified cords, broken lenses, chemical damage, improper servicing, or water intrusion caused by installation errors.

⚠️ Important Purchase Notice: This product is intended to be purchased and installed by pool professionals. Product support is not provided to homeowners. Returns are not accepted on this or any electronic equipment. Damages to the product from shipping will be covered and must be reported promptly. By purchasing this item, you agree to the terms above.

Customer Q&A

Is this an LED spa light?
No. The WSHV100WS100 uses a traditional 100-watt incandescent lamp.

Does the light include the niche?
No. A compatible small underwater wet niche is required and sold separately.

Can it be connected to Jandy automation?
Yes. It can be operated through a compatible AquaLink auxiliary relay for standard ON/OFF control.

Is the 100-foot cord included?
Yes. The fixture includes a factory-installed 100-foot power cord.
