Product Overview

The Pentair IntelliFlo VSF Drive Assembly Kit with Keypad 356971Z is a genuine OEM replacement drive designed for compatible Pentair IntelliFlo VSF variable-speed and variable-flow pool pumps.

This complete replacement assembly combines the electronic motor drive and operator keypad, restoring pump programming, speed control, flow control, scheduling, diagnostics, and automation communication when the original drive has failed or sustained damage.

The drive is the primary electronic control component of the pump. It regulates motor operation and allows the pump to maintain programmed speeds or flow rates for filtration, heating, sanitation, cleaning, and water-feature applications.

Professional diagnosis is strongly recommended before replacement because a blank display, communication error, or non-operating pump may also be caused by incorrect voltage, damaged wiring, motor failure, moisture intrusion, or another electrical issue.

Key Features

• Genuine Pentair OEM replacement kit
• Complete IntelliFlo VSF drive assembly
• Includes operator keypad
• Restores variable-speed and variable-flow operation
• Supports pump programming and scheduling
• Provides access to speed and flow settings
• Maintains onboard diagnostics and fault reporting
• Supports compatible Pentair automation communication
• Designed as a direct replacement for compatible original drives
• Intended for professional pump repair and servicing

Kit Includes

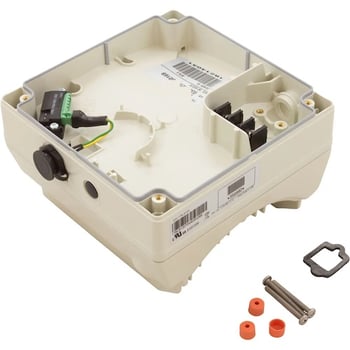

• IntelliFlo VSF electronic drive assembly

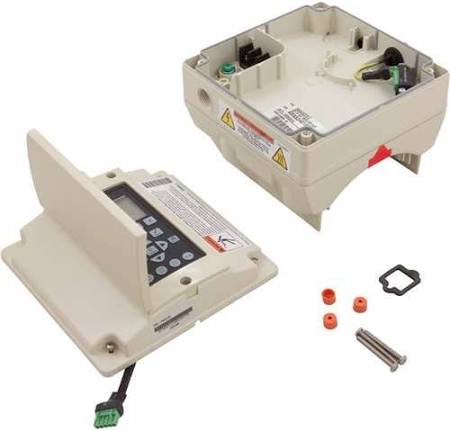

• Digital operator keypad
• Factory-installed drive components
• Associated drive housing components supplied by Pentair

Only components packaged by the manufacturer should be assumed to be included. Reuse of existing hardware, wiring, communication cable, seals, or mounting components may be required depending on the pump configuration.

Specifications

Drive Functions

The replacement drive controls several important pump functions, including:

• Motor speed regulation
• Programmed flow-rate operation
• Daily operating schedules
• Manual speed and flow adjustments
• Priming settings
• Freeze-protection settings
• External automation communication
• Fault detection and diagnostic messages
• Pump start and stop commands
• Operating-time configuration

Available functions depend on the exact pump model, automation system, and drive programming.

Compatible Pump Family

The 356971Z is intended for select pumps in the:

• Pentair IntelliFlo VSF variable-speed and variable-flow pump family

Compatibility must be confirmed using the pump’s full model number, serial number, production date, and original drive part number.

Pentair has manufactured multiple IntelliFlo generations that may look similar but use different motors, drives, keypads, wiring connections, and communication systems.

Not Universally Compatible

This drive assembly should not be assumed to fit:

• Every IntelliFlo pump
• IntelliFlo3 pumps
• IntelliFlo i1 pumps
• IntelliFlo VS+SVRS pumps
• IntelliFloXF pumps
• IntelliPro pumps
• Older IntelliFlo variable-speed models
• Pumps with different motor or drive configurations

Do not order based only on the IntelliFlo name or the physical appearance of the existing pump.

Common Reasons for Replacement

The drive assembly may require replacement when the pump experiences:

• Blank or nonresponsive keypad
• Repeated drive fault messages
• Pump will not start despite proper incoming power
• Speed or flow settings cannot be programmed
• Motor operation is intermittent
• Automation system cannot communicate with the pump
• Visible corrosion or moisture damage
• Burned or damaged electronic components
• Keypad and drive failure
• Electrical surge damage

A keypad or communication problem does not automatically confirm that the complete drive has failed. Proper electrical and pump diagnostics should be performed before ordering.

Confirm Before Ordering

• Verify the pump’s complete model number.
• Record the pump serial number and production date.
• Confirm the original drive part number.
• Verify that the pump is an IntelliFlo VSF model.
• Compare all wiring and communication connections.
• Confirm that the motor is operational and compatible.
• Verify incoming voltage before replacing the drive.
• Inspect the pump for moisture intrusion or corrosion.
• Do not purchase solely because the keypad is blank.
• Installation should be completed by a qualified pool-equipment professional.

Installation Information

Turn off and lock out all electrical power before servicing the pump. Variable-speed pump drives contain high-voltage components that may retain electrical energy after power has been disconnected.

The technician should inspect:

• Incoming electrical voltage
• Grounding and bonding
• Motor condition
• Drive-to-motor connections
• Communication wiring
• Keypad connection
• Drive housing and seals
• Evidence of water intrusion
• Pump shaft movement
• Existing fault history

After installation, the drive must be programmed for the pool’s plumbing, equipment, schedules, and operating requirements. Automation communication may also need to be reconfigured.

Warranty Information

This genuine Pentair replacement component is covered according to Pentair’s applicable replacement-parts warranty terms.

Warranty eligibility may depend on:

• Correct product application
• Professional installation
• Proof of purchase
• Proper electrical supply
• Correct pump configuration
• Compliance with Pentair installation procedures

Damage caused by incorrect voltage, electrical surges, moisture intrusion, improper wiring, incompatible equipment, freeze damage, unauthorized repairs, or installation on the wrong pump model may not be covered.

Customer-Facing Q&A

Does this kit include the keypad?
Yes. The 356971Z kit includes the electronic drive assembly and operator keypad.

Is this the complete pump?
No. This listing is for the replacement drive assembly kit only. It does not include the complete pump, motor, wet end, or plumbing unions.

Does it fit every Pentair IntelliFlo pump?
No. It is intended for select IntelliFlo VSF pumps. Compatibility must be confirmed using the complete pump model and serial number.

Will this repair a pump with a blank display?
Possibly, but a blank display may also be caused by a power-supply problem, damaged wiring, failed keypad connection, motor issue, or moisture damage. Professional diagnosis is recommended.

Can the existing keypad be reused?
This kit already includes a keypad. Reusing the old keypad is generally unnecessary unless directed by Pentair service documentation.

Does the drive need to be programmed after installation?
Yes. Pump speeds, flow rates, schedules, priming settings, and automation communication may need to be configured after replacement.

Is professional installation required?
Yes. The drive contains high-voltage electronics and should be installed by a qualified pool-equipment technician or electrician.
